Tech specs
Brand
Cisco
Product Line
Cisco Integrated Services Router
Model
1101
Manufacturer
Cisco Systems
Flash Memory Installed
4 GB
RAM Installed
4 GB
Compliant Standards
IEEE 802.11i, IEEE 802.11r, IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Access Control List (ACL) support, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Class-Based Weighted Fair Queuing (CBWFQ), Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Dynamic Multipoint VPN (DMVPN), Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), IPFIX, Location ID Separation Protocol (LISP), Management Information Base (MIB) II, Maximum Ratio Combining (MRC), NetFlow, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Rack-mountable
Integrated Switch
4-port switch
Network Standard
DHCP, DNS, IPSec, L2TPv3, PPPoE
Product Type
Router
Remote Management
CLI, RMON, SNMP, TR-069
Routing Protocol
BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
WAN Ports Quantity
1
Interface Provided
LAN: 4 x 1000Base-T - RJ-45, USB 3.0: 1 x, WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
Frequency
50/60 hertz
Power Consumption Operational
30 watt
Power Provided
30 watt
Required Voltage
AC 100-240 volt
Encryption
1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA, IKE, MD5, SHA, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
10 - 85% (non-condensing)
Authentication Method
RADIUS
Device Type
External power adapter
Packaged Quantity
1

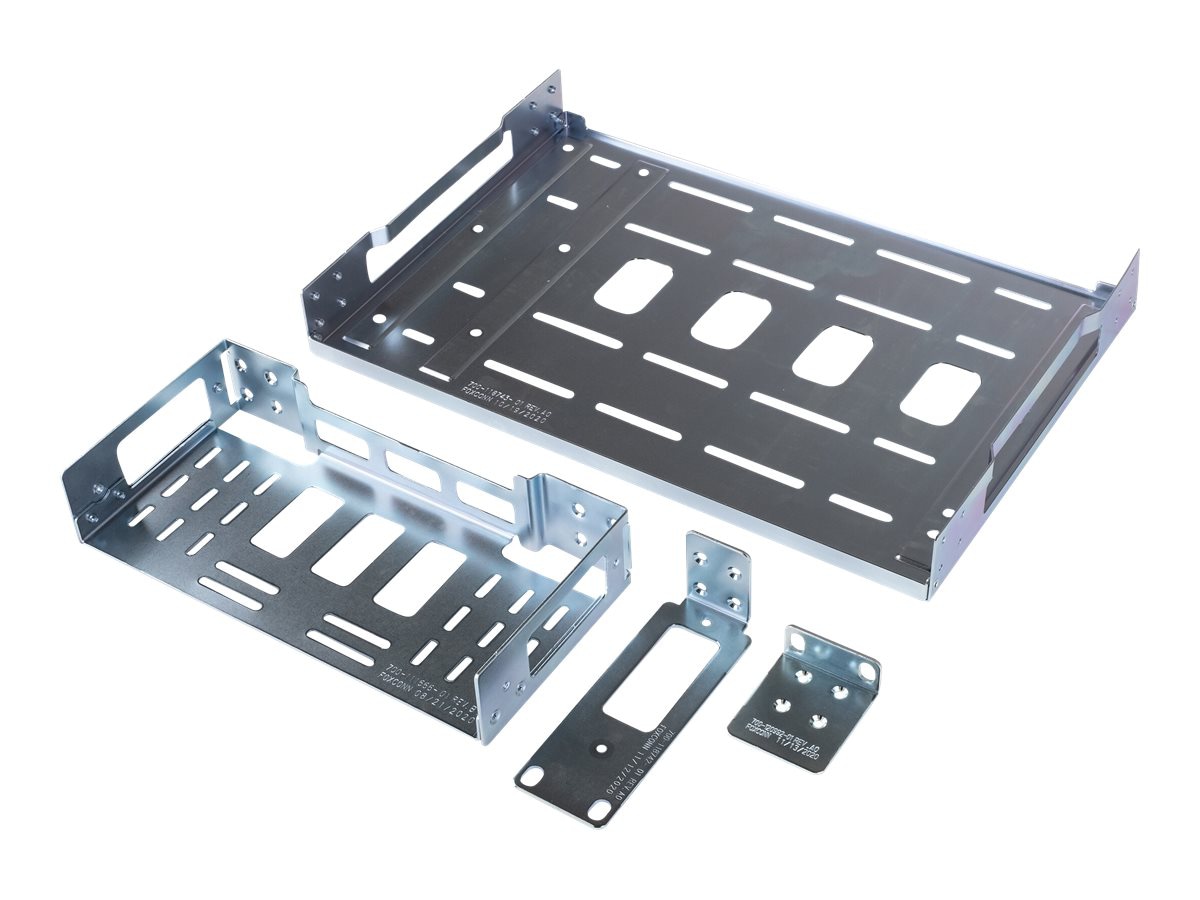

Rack Mounting Kit
Optional
Service Activation
No
Bridge & Router
Encryption throughput: 350 Mbps
Height
1.1 inch
Weight
3.88 lbs
Width
7.5 inch
Depth
6 inch
Color Category
Gray
Compliant Standards
AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1, CB, CISPR 22, CNS 13438, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN55022, FCC CFR47 Part 15, FCC CFR47 Part 22, FCC CFR47 Part 24, ICES-003, IEC 60950-1 First Edition, IEC 60950-1 Second Edition, UL 60950-1, VCCI V-3
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - advance parts replacement - 1 year - response time: 10 days
Limited Warranty
1 Year
