Tech specs
Brand
Cisco
Product Line
Cisco Nexus

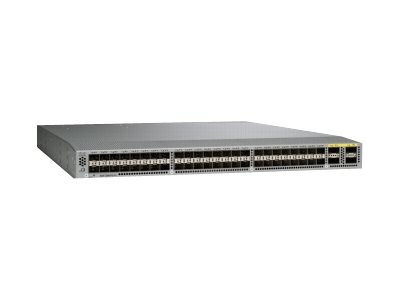

Model
3064-X
Manufacturer
CISCO DS HARDWARE DIRECT
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3z
Features
Broadcast Storm Control, DHCP snooping, Jumbo Frames support, Layer 2 switching, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Unicast Storm Control, VLAN support, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9216 bytes
MAC Address Table Size
128K entries
Manageable
Yes
Ports
64
Product Type
Switch
Remote Management
CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Subcategory
Network hubs and switches
Switching Type
10 Gigabit Ethernet
Interface Provided
1 x console RJ-45 management, 1 x USB, 2 x 1000Base-T RJ-45 management, 4 x QSFP+, 48 x SFP+
Port Quantity
48
Port Type
SFP+
Ports Type (2nd)
QSFP+
Hot-Plug
Hot-plug
Power Supplies Supported
2
Redundant Power Supply
Optional
Encryption
AES
Max Operating Temperature
104 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
Operating Humidity
10 - 85% (non-condensing)
Authentication Method
MS-CHAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Capacity
Multiple Spanning Tree Protocol instances: 64, Rapid Spanning Tree Protocol instances: 512, Virtual interfaces (VLANs): 4096
Device Type
Internal power supply (not installed)
Packaged Quantity
1
Performance
Switching capacity: 1.28 Tbps
Ports (2nd) Quantity
4
Height
1.7 inch
Height (Rack Units)
1
Weight
20.5 lbs
Width
17.3 inch
Depth
19.9 inch
Compliant Standards
AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1 Second Edition, VCCI Class A ITE
Service & Support Details
Limited warranty - 1 year
Integrated System
1-year warranty
