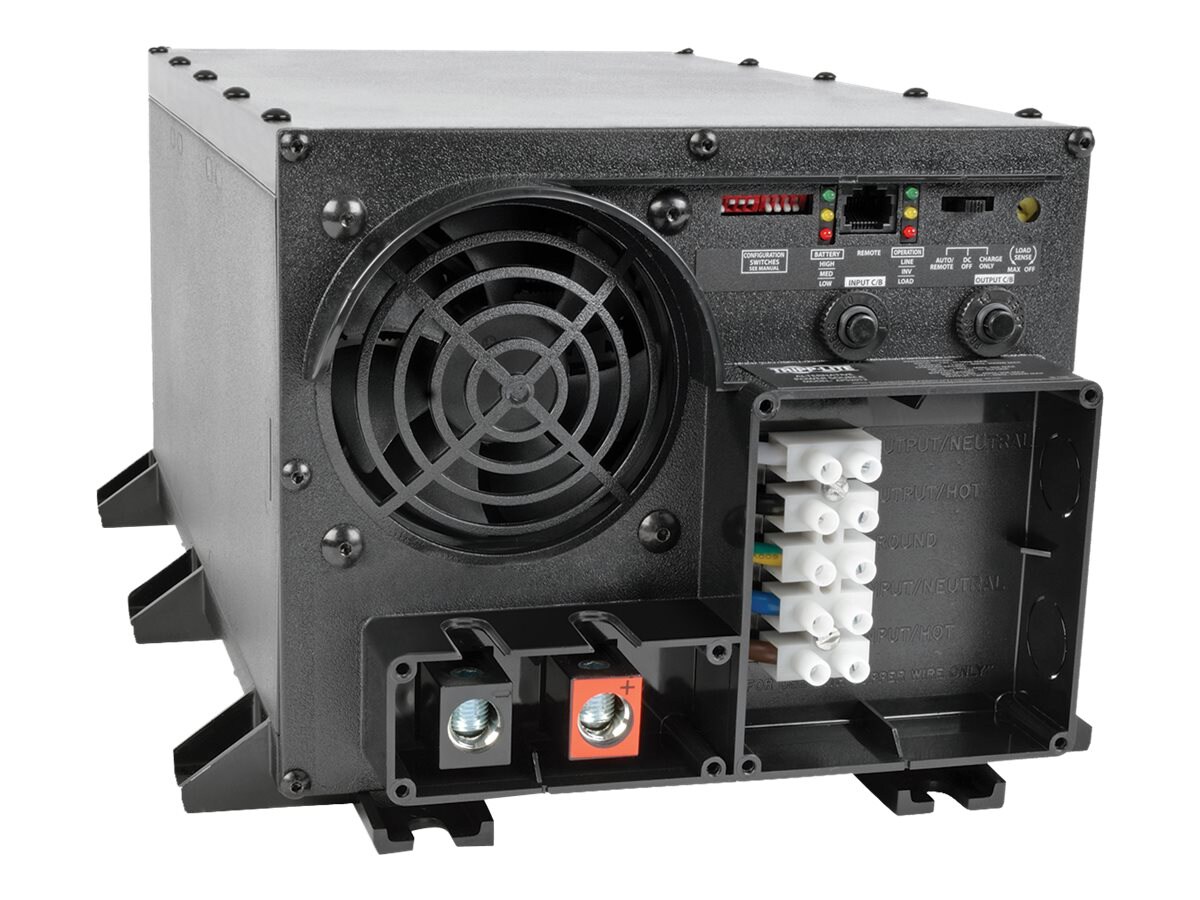

Tripp Lite's APS2448 3-function DC-to-AC inverter with auto line-to-battery transfer and integrated charging system serves as a standalone 48V inverter or an extended run UPS. Supplies up to 2400 watts of continuous 120V AC power from a 48V DC bus or battery set. When optional-use hardwire input AC cable is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 30 amp charging system. In UPS mode, the APS system responds to blackouts and brownouts with an uninterrupted transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies DC source and cabling). Reliable large transformer design with efficient PWM sine wave output and frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet / gel battery types and selectable line to battery power transfer voltages



Key Buying Points:

Functions as a 48V standalone AC power source or an extended run UPS system



Includes hardwire AC input and auto-transfer to enable battery charging and automatic UPS support for blackouts and brownouts



2400 watts continuous output power; provides up to twice this rating for momentary startup of inductive loads



Runtime is dependent upon site supported 48V DC bus or by the size and number of user-supplied batteries 48 volt configuration



Hardwire input and output connections supported, DC input terminals for 48V battery connection



Converts 48 volt DC to 120 volt AC



Carries UL safety approval



Frequency control for operating stability



Advanced 30 amp, 3-stage battery charger and selector switch for gel or wet cell batteries



Resettable circuit breaker protects APS against system overload



Switch allows user to select between off, auto-invert and charge-only settings



6 diagnostic LEDs indicate AC present, on battery, overload, and battery voltage level (high, medium, and low)



Configuration switches to allow the user to select the high and low voltage for the unit to automatically transfer from AC power to battery backup



Coated internal circuit boards offer continuous operation in humid environments (0-95%, non condensing)



RJ45 port allows connection of APS remote switch (part# APSRM)



Allows unlimited runtime capability by allowing the use any number of user-supplied batteries



UL approved



Package Includes:

APS2448 Inverter/Charger

Instruction manual with warranty information
