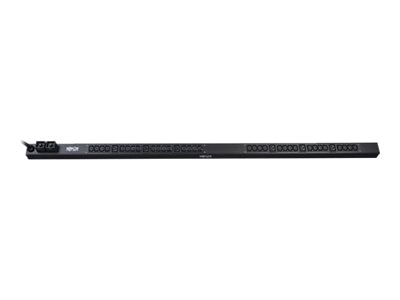

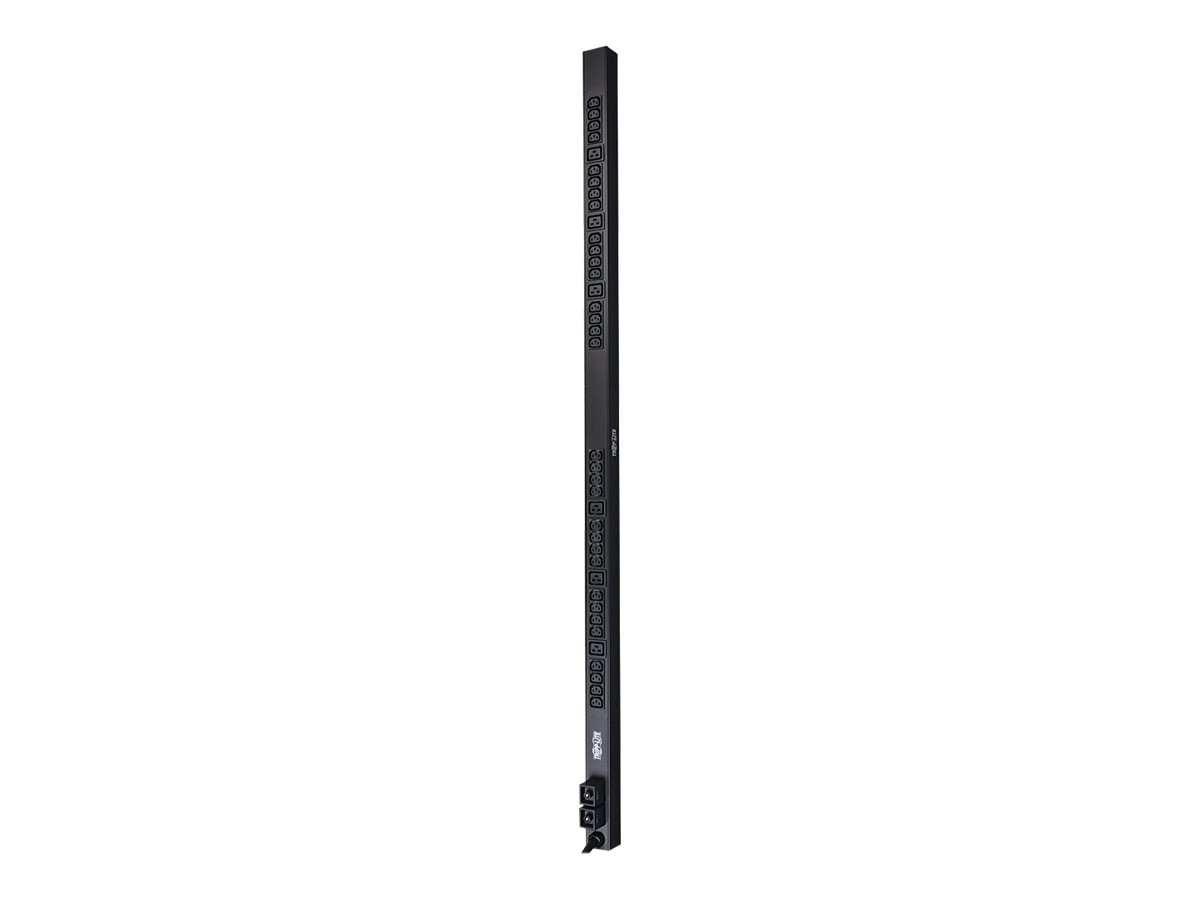

Eaton Tripp Lite Series PDU Basic 208V / 240V 5/5.8kW 30A 6 C19; 32 C13 L6-30P 0URM - vertical rackmount - power
$505.44
$311.99
Mfg # PDUV30HV
CDW # 1384077
Quick tech specs
- Basic PDU delivers 208/240V single-phase AC power to multiple loads
- 38 Outlets (32 C13; 6 C19) 208/240V 30A 5.5.8kW
- Switchless design prevents accidental shutdown
- Supports toolless 0U vertical mounting
- PDU/ Power Distribution Unit/ Vertical PDU/ PDU Strip/ Basic PDU/ rack pdu/ pdus/ datacenter pdu/ data center pdu/ network pdu/ networking pdu
- NEMA L6-30P input with 10ft (3m) power cord
- 63.75 in. all-metal housing
- Tripp Lite is now a part of the Eaton family
Know your gear
Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
KEY BUYING POINTS
208/240V 30A Basic Power Distribution Unit (PDU) in 63.75 in. 0U vertical form factor.
30A maximum capacity (Agency derated to 24A)
Attached L6-30P input plug with 10 ft. line cord
38 total output receptacles (6 C19, 32 C13)
Outlets are arranged in two separately breakered 15A load banks (each with 3 C19 and 16 C13 outlets)
Circuit breaker offers protection from overloads and short circuit fault conditions
Sleeved circuit breaker assembly prevents accidental shutoff and requires no tools to reset if tripped
Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical networking equipment
Tooless installation supports fast installation in button-mount compatible equipment racks
Included nut and bolt mounting brackets support installation in non button-mount compatible racks or other flat surfaces, such as under-counter and wallmount
Cord retention brackets keep vital equipment plugs connected
PACKAGE INCLUDES
PDUV30HV 63.75 inch basic PDU with owner's manual
Set of 2 plug retention brackets and installation hardware
Set of mounting brackets and installation hardware
PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
KEY BUYING POINTS
208/240V 30A Basic Power Distribution Unit (PDU) in 63.75 in. 0U vertical form factor.
30A maximum capacity (Agency derated to 24A)
Attached L6-30P input plug with 10 ft. line cord
38 total output receptacles (6 C19, 32 C13)
Outlets are arranged in two separately breakered 15A load banks (each with 3 C19 and 16 C13 outlets)
Circuit breaker offers protection from overloads and short circuit fault conditions
Sleeved circuit breaker assembly prevents accidental shutoff and requires no tools to reset if tripped
Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical networking equipment
Tooless installation supports fast installation in button-mount compatible equipment racks
Included nut and bolt mounting brackets support installation in non button-mount compatible racks or other flat surfaces, such as under-counter and wallmount
Cord retention brackets keep vital equipment plugs connected
PACKAGE INCLUDES
PDUV30HV 63.75 inch basic PDU with owner's manual
Set of 2 plug retention brackets and installation hardware
Set of mounting brackets and installation hardware
