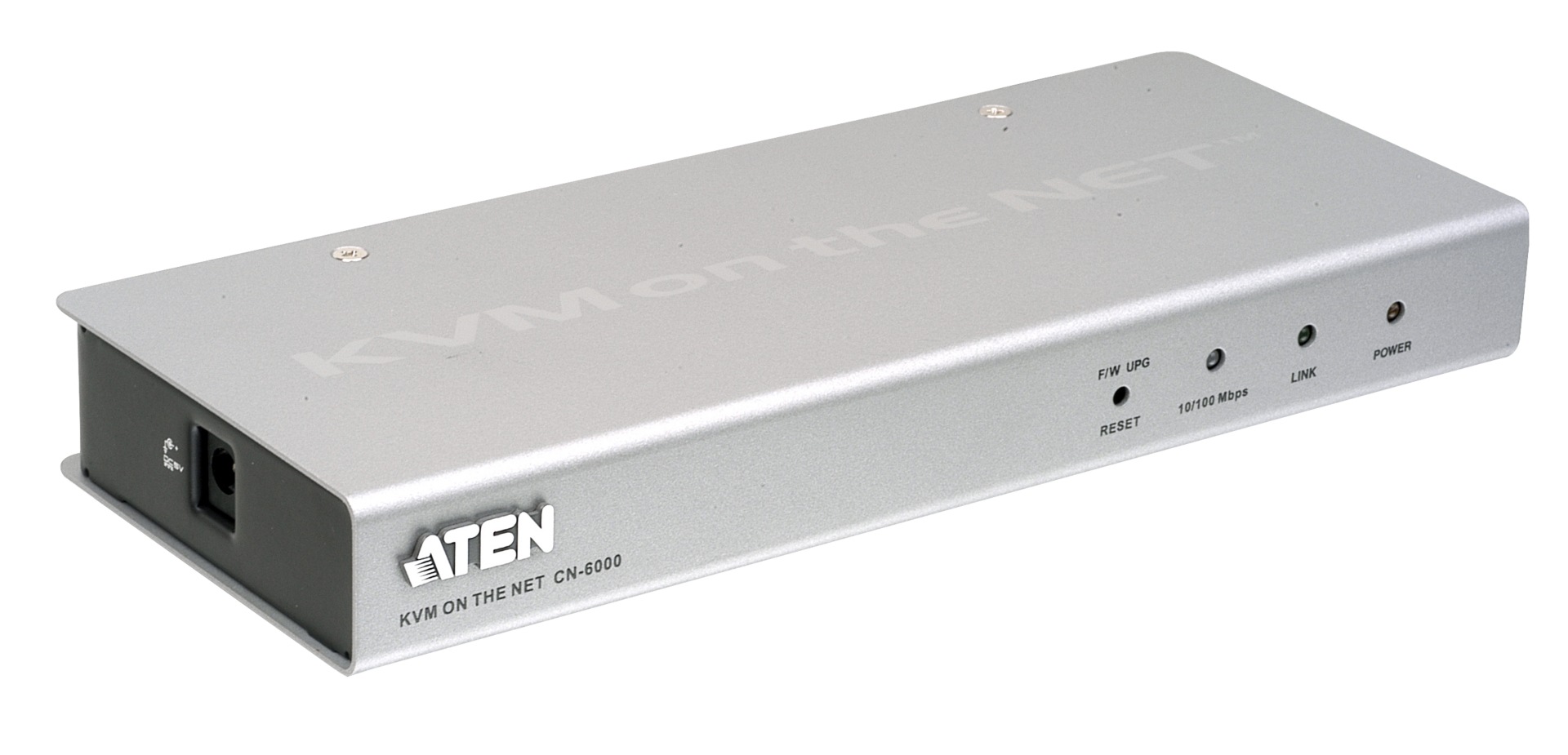

ATEN CN6000 KVM on the NET

The ATEN KVM on the NET is an IP implemented KVM solution that allows network administrators to access computers from any station connected to the network, whether it is the LAN, WAN, or even the World Wide Web. Network administrators can enjoy freedom from being bound to the server room; work from anywhere in the office, remote locations, or even from home!

Since KVM on the NET uses TCP/IP as its communication protocol, network administrators can remotely access attached KVM switches, allowing remote control of the attached servers to perform many tasks with ease and speed, such as installing and running GUI applications, BIOS level troubleshooting, routine monitoring, system maintenance, system administration, and rebooting. It supports 10BASE-T, 100BASE-T, TCP/IP, and HTTP through the Java Client. The server can be accessed whether it is down the hall, on the other side of town, or thousands of miles away!

Utilizing advanced security technologies, KVM on the NET provides password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout to make sure that remote access is secure.

Also, KVM on the NET offers high resolution (up to 1280 x 1024) , user-friendly Windows GUI Client Software and Java client software.

Features/Benefits:
Remotely control your servers via the LAN, WAN, or the Internet
Supports 10BASE-T, 100BASE-T, TCP/IP, and HTTP through the Java Client
Works with most KVM switches
One price - no additional cost for software
Sophisticated Administrator software allows setup for network, security, and user management
Advanced security features: password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout
User friendly client software allows for video adjustment, bandwidth control and mouse synchronization
High video resolution: up to 1280 x 1024
Windows GUI and Java based client software; Java client works with all operating systems
Upgradeable firmware
Designed for both desktop and rack mount

Requirements:
To use and access the CN6000 unit successfully, your computer requires the following:
At least a P III 1GHz processor.
For the Windows Client, you must have DirectDraw 7.0 or higher installed.
The Windows Administrator Utility software, the Windows Client software, the Log Server, and the Java Client software all support Windows 9x, ME, 2000, and XP. Java Client software supports various other operating systems, such as Mac, Solaris, and Linux, etc.

For the computer to be accessed by CN6000:
Set the screen resolution to 1024x768.
Mouse settings for various operating systems are as follows:
For Windows XP, set the mouse speed to the middle position and disable Enhance Pointer Precision.
For Windows 2000, set the mouse speed to the middle position, and select None for mouse acceleration.
For Windows NT/98, set the mouse speed to the slowest position.
For Windows ME/95, set the mouse to the middle position, and disable mouse acceleration.
For Redhat Linux, set the mouse threshold to the middle position, and mouse acceleration to the middle position.

Package Contents:
1 CN6000 unit
1 Driver CD
1 Power adapter
1 KVM cable
1 rack mount bracket
1 Quick start guide
1 User manual
