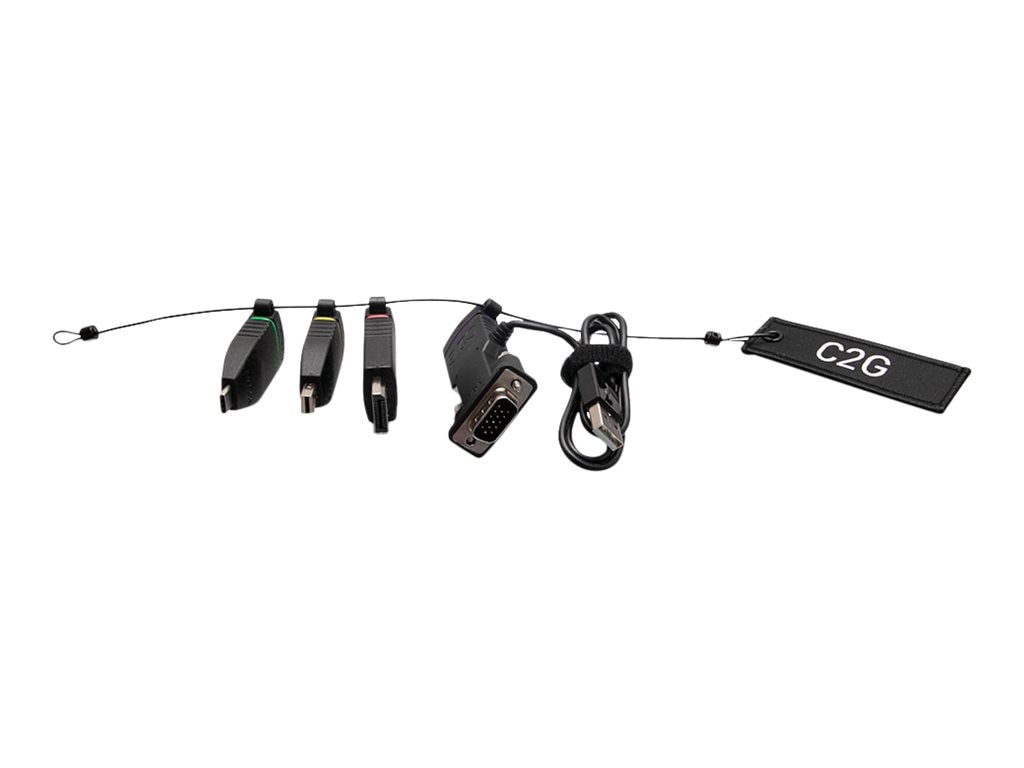

C2G Universal 4K HDMI Adapter Ring with Mini DisplayPort, DisplayPort, USB C, Lightning, and VGA - M/F

The Patented (US 11,575,235) Retractable Universal 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. C2G offers various connection combinations that can include HDMI to DisplayPort, Lightning, Mini DisplayPort, Micro HDMI, Mini HDMI, USB-C, VGA adapters to meet connectivity challenges. If you need additional connectivity, C2G has recently launched USB-A to USB-C Dongle Adapters that support USB 2.0 (480 Mbps) data only transmission.

Color Coded Adapters

Each adapter is color-coded with a band that saves time and frustration by making it easy to identify the adapter you need quickly.

Integrated Pull Tab

Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

Retractable Universal Cable Mount

The Retractable Universal Mount attaches to any flat surface, like a table or lectern, providing mounting flexibility to fit your environment best. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor tested to over 20,000 extension cycles for long service life.

Tools Included

The tools for mounting the adapters and optional stopper are in the box to simplify the installation process. The innovative HDMI Cable Gauge Tool reduces stopper installation time by allowing the right-sized stopper insert, allowing for quick identification of the HDMI cable.

Additional Technical Specs

DisplayPort Connector - Red

100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
Minimum Bend Radius: R52mm
DisplayPort Male: Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches)
Insulation Resistance: 10M OHMS/KM Min at 20°C DC 500V
Conductor Resistance: At 20°C Max 32AWG: DP: 588.85 OHMS/KM
Lightning Connector

100% Functional Test at 1080p Resolution with Standard AV Test Equipment
Mini DisplayPort Connector - Yellow

100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
Minimum Bend Radius: R52mm
Mini DisplayPort Male: Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated
Insulation Resistance: 10M OHMS/KM Min at 20°C DC 500V
Conductor Resistance: At 20°C Max 32AWG: mDP: 588.85 OHMS/KM
Micro HDMI Connector - Orange

Testing: 100% Functional Test at 4K/30Hz
Minimum Bend Radius: 25mm (about 0.98 in)
Micro HDMI; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
Jacket Thickness: 0.51mm (about 0.02 in) AVG
Conductor Resistance: at 20°C, 32AWG: 588Ω/KM; 34AWG: 959Ω/KM
Insulation Resistance: 10 Ω/KM min at 20°C DC 500V
Mini HDMI Connector - Gray

Testing: 100% Functional Test at 4K/30Hz
Minimum Bend Radius: 25mm (about 0.98 in)
Mini HDMI; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
Jacket Thickness: 0.51mm (about 0.02 in) AVG
Conductor Resistance: at 20°C, 32AWG: 588Ω/KM
Insulation Resistance: 10 Ω/KM min at 20°C DC 500V
USB-C Connector - Green

100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
Minimum Bend Radius: R45mm
USB Type-C Male: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated
Insulation Resistance: PP/HD-PE DC 500V 100M OHMS/KM Min at 20°C
Conductor Resistance: USB-C: 588 OHMS/KM; 24AWG: 86 OHMS/KM
VGA Connector - Black

Testing: 100% Functional Test at 1080p/60Hz
VGA Male; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
Minimum Bend Radius: 52mm
Conductor Resistance: at 20°C, 32AWG: 588Ω/KM
USB-A to USB-C Connector - Blue

Testing: 100% Functional Test @ USB 2.0 (480 Mbps)
Minimum Bend Radius: 25mm
Connector 1: USB-A Mal
