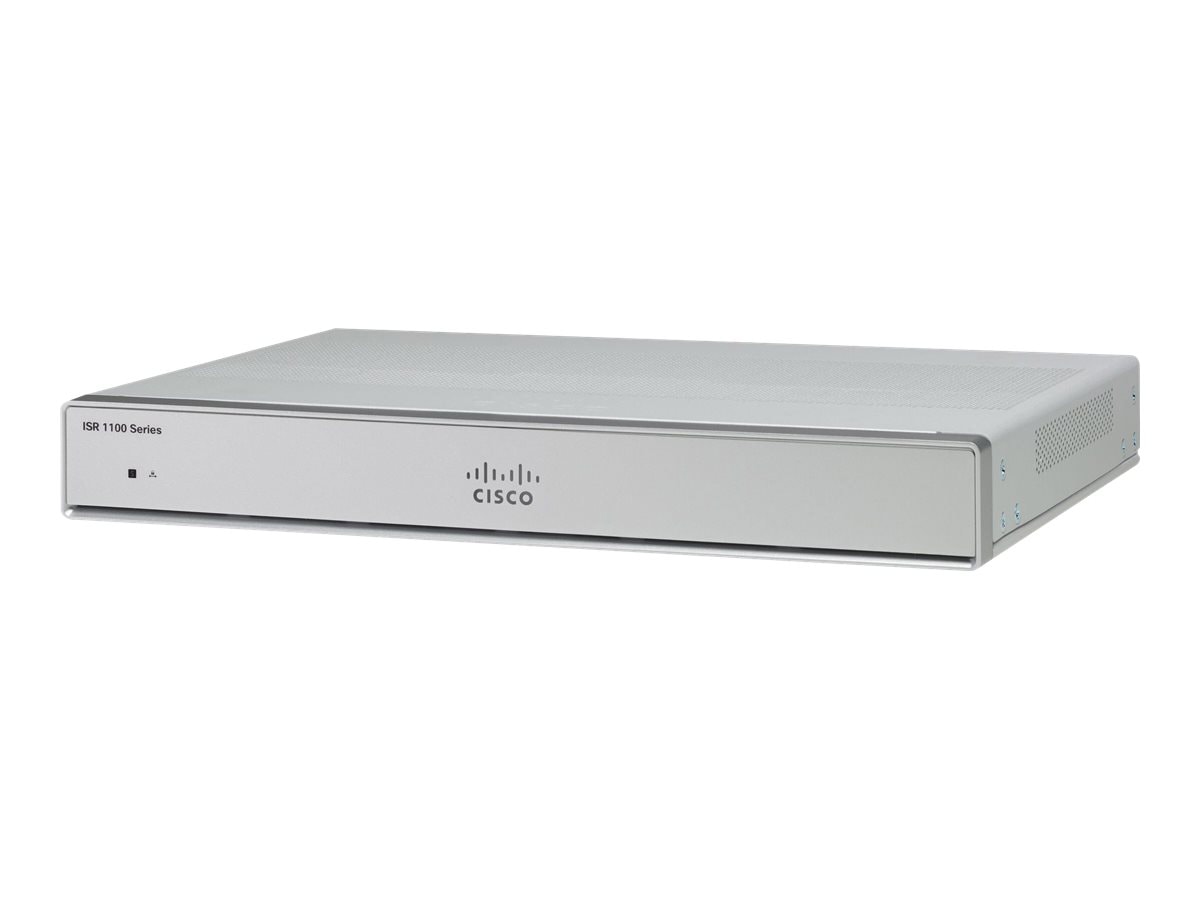

Tech specs
Brand
Cisco
Product Line
Cisco Integrated Services Router
Model
1161X-8P
Manufacturer
CISCO DS HARDWARE DIRECT
Flash Memory Installed
8 GB
RAM Installed
8 GB
Cellular Data Connectivity Technology
LTE
Compliant Standards
IEEE 802.11i, IEEE 802.11r, IEEE 802.1ag, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
Connectivity Technology
Wired, Wireless
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
2T2R MIMO technology, Access Control List (ACL) support, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Class-Based Weighted Fair Queuing (CBWFQ), Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Dynamic Multipoint VPN (DMVPN), Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), IPFIX, Location ID Separation Protocol (LISP), Management Information Base (MIB) II, Maximum Ratio Combining (MRC), NetFlow, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Desktop
Integrated Switch
8-port switch
Key Features
Firewall, USB port, VPN support
Network Standard
DHCP, DNS, IPSec, L2TPv3, PPPoE
Product Type
Router
Remote Management
CLI, RMON, SNMP, TR-069
Routing Protocol
BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
Status Indicators
Status
WAN Ports Quantity
2
Interface Provided
LAN: 2 x 1000Base-T (PoE) - RJ-45, LAN: 2 x 1000Base-T (PoE+) - RJ-45, LAN: 4 x 1000Base-T - RJ-45, USB 3.0: 1 x console, WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
Frequency
50/60 hertz
Encryption
1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA, IKE, MD5, SHA, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
5 - 95% (non-condensing)
Authentication Method
RADIUS
Device Type
External power adapter
Packaged Quantity
1
Service Activation
No
Color Category
Gray
Compliant Standards
AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CISPR 22, CISPR 24, CNS 13438, EN 300 386, EN 301 489-1, EN 301 489-24, EN 301 489-7, EN 301 511, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN55022, EN55024, FCC CFR47 Part 15, FCC CFR47 Part 22, FCC CFR47 Part 24, ICES-003, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI V-3
