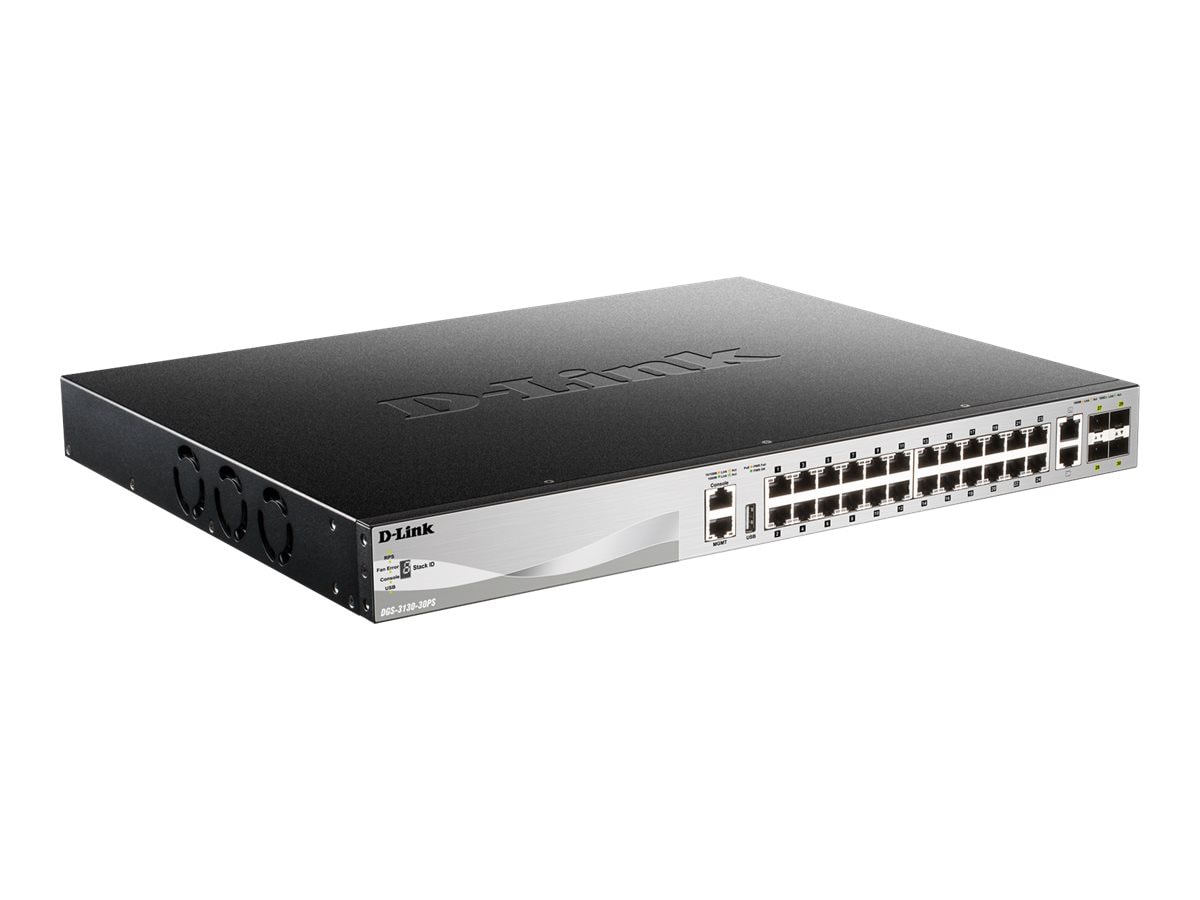

Tech specs
Brand
D-Link
Product Line
D-Link DGS
Model
3130-30PS
Manufacturer
D-Link
Advanced Switching
Layer 3 Lite
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, ITU-T G.8032
Features
3 fans, 6KV Surge protection, Access Control List (ACL) support, ARP spoofing, ARP support, Asymmetric VLAN, BOOTP support, BPDU Filter, Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable Diagnostics Function, Committed Information Rate (CIR), DHCP client, DHCP relay, DHCP server, DHCP snooping, DiffServ support, DNS client, DoS attack prevention, Dying Gasp, Dynamic VLAN Support (GVRP), Energy-Efficient Ethernet (EEE), Ethernet OAM, Ethernet Ring Protection Switching (ERPS), Flow control, FTP server, Head-of-line (HOL) Blocking Prevention, IGMP snooping, Internet Control Message Protocol (ICMP), Link Aggregation, LLDP support, Loopback detection, Management Information Base (MIB) II, MLD snooping, Neighbor Discovery Protocol (NDP), Port mirroring, Port Security, Private VLAN, Proxy ARP, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Root Restriction, Security slot (Kensington security lock compatible), sFlow, Single IP Management (SIM), Storm Control, Strict Priority (SP), System log, Tagged VLAN, TFTP client, Type of Service (ToS), Unicast Storm Control, VLAN Double Tagging (Q-in-Q), VLAN trunking, Web-based Access Control (WAC), Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)
Desktop, Rack-mountable
Jumbo Frame Support
9KB
MAC Address Table Size
16384 entries
Manageable
Yes
Max Units In A Stack
12
PoE Budget
370 watt
Ports
30
Power Over Ethernet (PoE)
PoE+
Product Type
Switch
Remote Management
CLI, HTTP, NTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
Routing Protocol
IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RIP-1, RIP-2, RIPng, RSTP, Static IPv4 routing, Static IPv6 routing, STP, VRRP
Stackable
Stackable
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
QSFP Slots
10 Gigabit SFP+
Interface Provided
1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x USB 2.0 Type A, 2 x 10GBase-T RJ-45, 24 x 10/100/1000 Base-T RJ-45 PoE+, 4 x 10GBase-X SFP+
Port Quantity
24
Port Type
10/100/1000 (PoE+)
Ports Type (2nd)
10 Gigabit Ethernet
Frequency
50/60 hertz
Hot-Plug
Hot-plug
Power Consumption Operational
471.67 watt
Redundant Power Supply
Optional
Encryption
SSL, SSL 2.0, SSL 3.0
Humidity Range Storage
90%
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
409,054 Hours
Operating Humidity
10 - 90%
Authentication Method
RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity
IGMP groups: 1024, Packet buffer size: 2 MB, QoS hardware queues: 8, Units per virtual stack: up to 32, Virtual interfaces (VLANs): 4000
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding performance (64-byte packet size): 125 Mpps, Switching capacity: 168 Gbps
Ports (2nd) Quantity
2
Ports (3rd) Quantity
4
Height
1.7 inch
Weight
10.27 lbs
Width
17.3 inch
Depth
13.8 inch
Color Category
Black, White
Compliant Standards
BSMI, CB, CCC, cUL, FCC Class A certified, IC, RCM, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - replacement - lifetime - response time: next business day
Limited Warranty
Limited Lifetime
