Tech specs
Brand
D-Link
Product Line
D-Link EasySmart Switch
Model

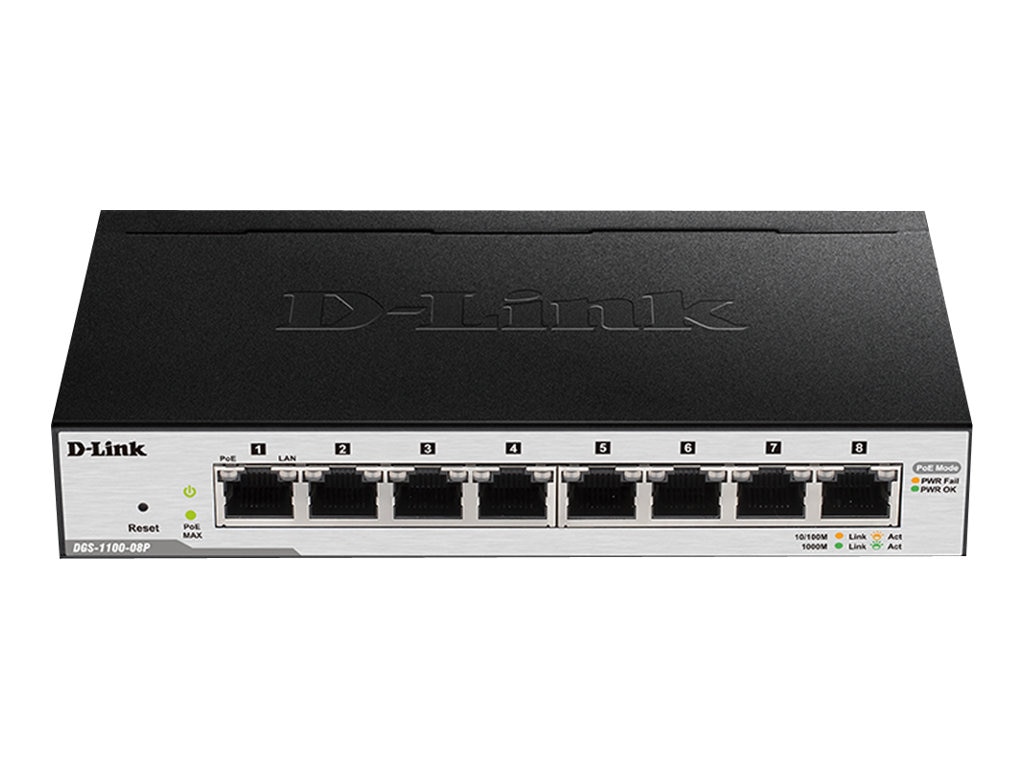

DGS-1100-08P
Edition
V2
Manufacturer
D-Link
Flash Memory Installed
2 megabyte
Compliant Standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Features
1.5MB packet buffer, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, DHCP client, D-Link Green Technology, Fanless, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, Layer 2 switching, Multicast Storm Control, Port mirroring, Quality of Service (QoS), Store and forward, Trunking, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR), Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches)
Desktop
MAC Address Table Size
4K entries
Manageable
Yes
PoE Budget
64 watt
Ports
8
Power Over Ethernet (PoE)
PoE
Product Type
Switch
Remote Management
HTTP
Smart
Yes
Status Indicators
Link/activity, Port transmission speed, Power
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Interface Provided
8 x 1000Base-T RJ-45 PoE
Port Quantity
8
Port Type
10/100/1000 (PoE)
Frequency
50/60 hertz
Power Consumption Operational
77.9 watt
Humidity Range Storage
0 - 95% (non-condensing)
Max Operating Temperature
104 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
786,841 Hours
Operating Humidity
0 - 90% (non-condensing)
Device Type
External power adapter
Packaged Quantity
1
Performance
Forwarding performance: 11.9 Mpps, Switching capacity: 16 Gbps
Height
1.1 inch
Weight
15.17 ounce
Width
6.7 inch
Depth
3.9 inch
Color Category
Black
Compliant Standards
BSMI, cUL, FCC Class A certified, LVD, UL, VCCI Class A ITE
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - lifetime
Limited Warranty
Limited Lifetime
