Tech specs
Brand
Epson
Product Line
Epson SureColor
Model
T2170
Manufacturer
Epson
Product Type
Print server
Security Protocols & Features
Wi-Fi Direct
Interface
Gigabit LAN, USB 3.0, Wi-Fi(n)
Interface Required Connections
1 x Gigabit LAN - RJ-45, 1 x USB 3.0 - 9 pin USB Type B
Color
4-ink
Ink Cartridge Configuration
4 individual ink tanks
Ink Palette Supported (Colors)
Cyan, magenta, yellow, black
Ink Type
Epson UltraChrome XD2 Ink
Inkjet Technology
Epson PrecisionCore MicroTFP
Max B/W Print Resolution
2400 x 1200 dpi
Max Color Print Resolution
2400 x 1200 dpi
Max Color Print Speed
0.7 min/page
Max H-Document Size
24 in
Max Mono Print Speed
0.7 min/page
Max Print Size
Roll (24 in)
Max Resolution Class B/W
2400 x 1200 dpi
Max Resolution Class Color
2400 x 1200 dpi
Min H-Document Size
8.25 in
Min V-Document Size
11 in
Minimum Ink Droplet Size
4 pl
Nozzle Configuration
800 nozzles (black), 3 x 800 nozzles (cyan, magenta, yellow)
Print Output Type
Color
Print Speed
Up to 0.7 min/page - A1 (23.4 in x 33.1 in)
Wireless Print Technology
Wired
Wireless Print Technology Ready
Yes
Large Format Printer Size
24"
Large Format Printer Size (metric)
610 mm
Media Feeders
1 x automatic - 1 roll - Roll (24 in)
Media Size Class
Other
Media Sizes
11 in x 17 in, 8.27 in x 11 in, Roll (13 in), Roll (24 in)
Media Type
Plain paper
Touchscreen
No
Frequency
50 - 60 hertz
Power Consumption Operational
28 watt
Power Device Type
Power supply
Sleep-Mode Power Consumption
1.6 watt
Auto Paper Cutter
Yes
Power Device Form Factor
Internal
Language Emulation
EPSON ESC/P Raster, HP GL/2, HP RTL
Max Operating Temperature
95 degree Fahrenheit
Media Type
Plain paper
Min Operating Temperature
50 degree Fahrenheit
Operating Humidity
20 - 80% (non-condensing)
Operating System Required
Apple macOS 10.12.x, Apple macOS 10.13.x, Apple MacOS X 10.10.x, Apple MacOS X 10.11.x, Apple MacOS X 10.7.x, Apple MacOS X 10.8.x, Apple MacOS X 10.9.x, Microsoft Windows 7 (32/64 bits), Microsoft Windows Vista, Microsoft Windows XP, Windows 10 (32/64 bits), Windows 8.1 (32/64 bits)
Sound Emission (Idle)
32 dBA
Sound Emission (Operating)
49 dBA
Built-in Devices
Touch screen
Office Machine Type
Printer
Printer Product Type
Large-format printer
Scanner Functionality
None
Printer Functions
Printer
Packaged Quantity
1
Preview Screen Size
4.3"
Preview Screen Size (metric)
10.9 cm
Print Technology
Inkjet
Consumables Included

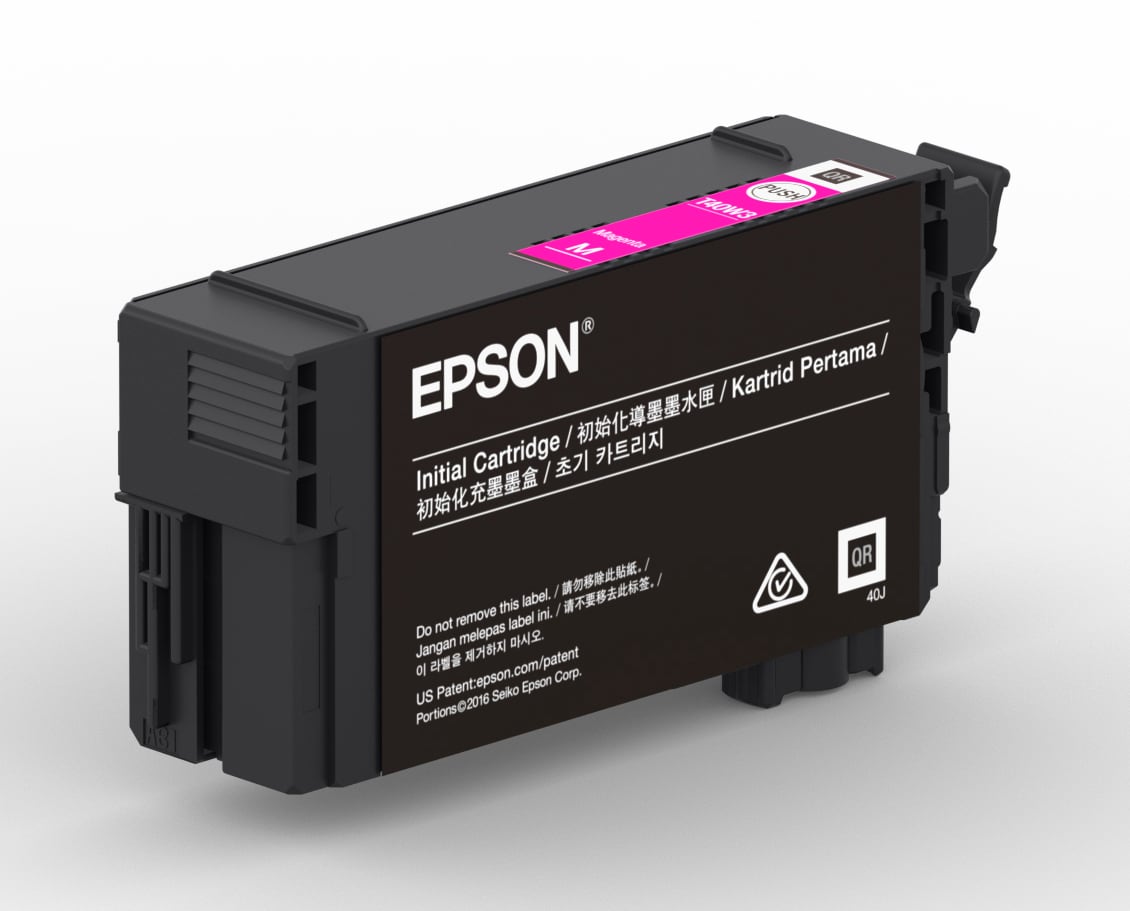

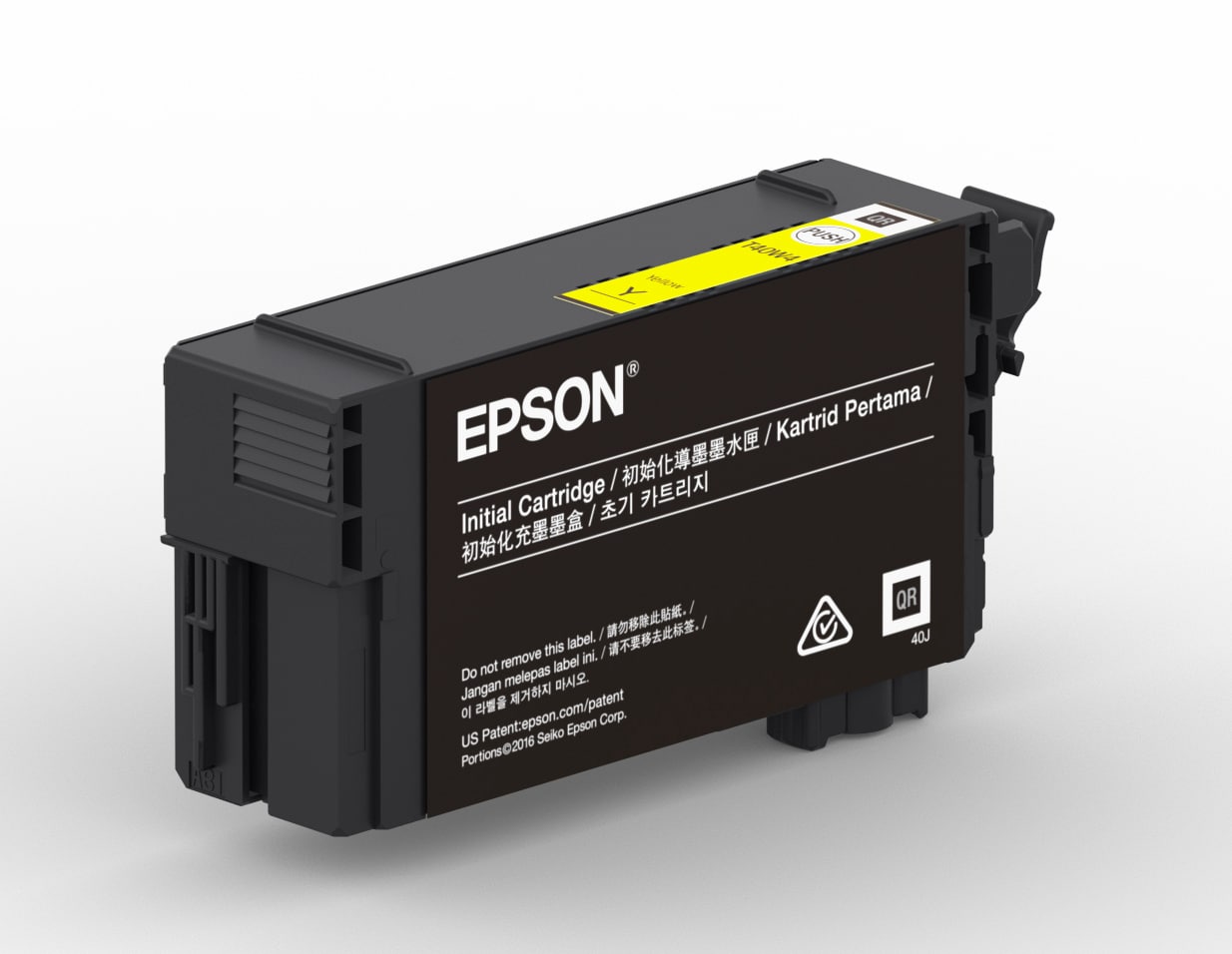

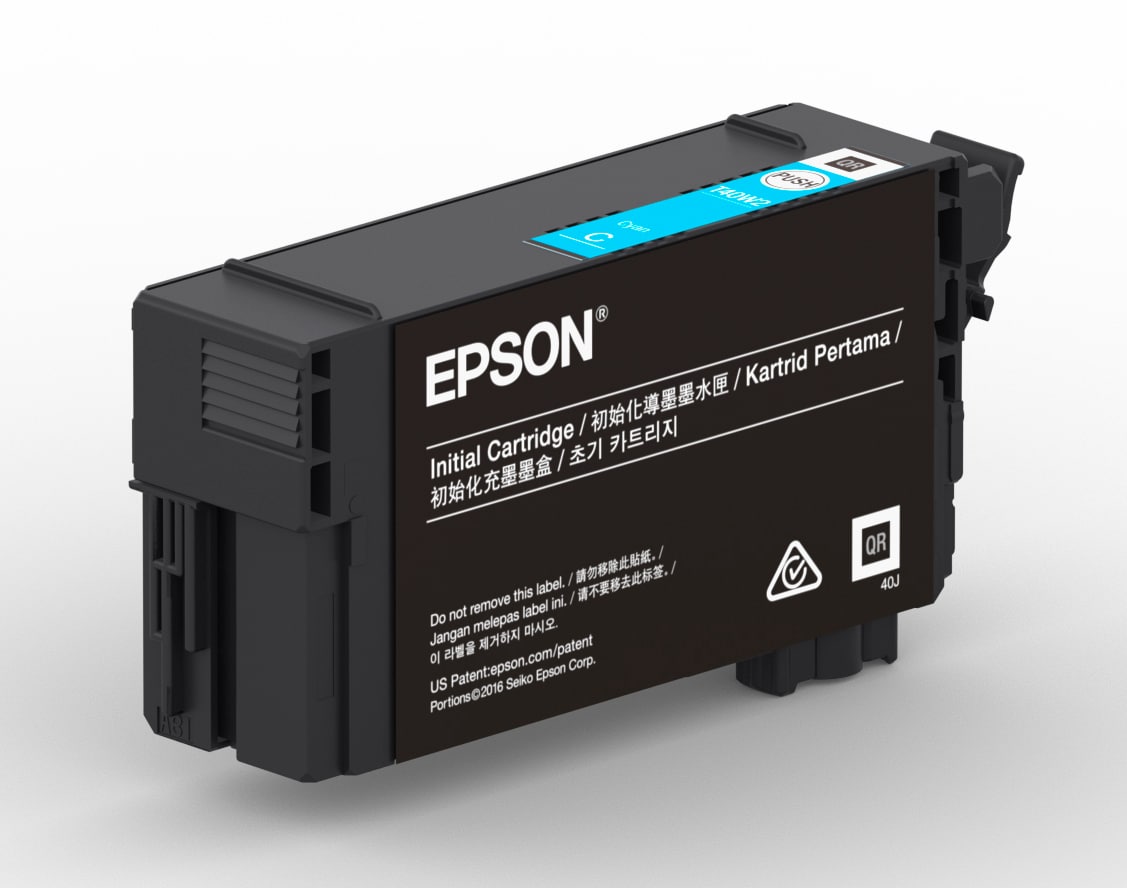

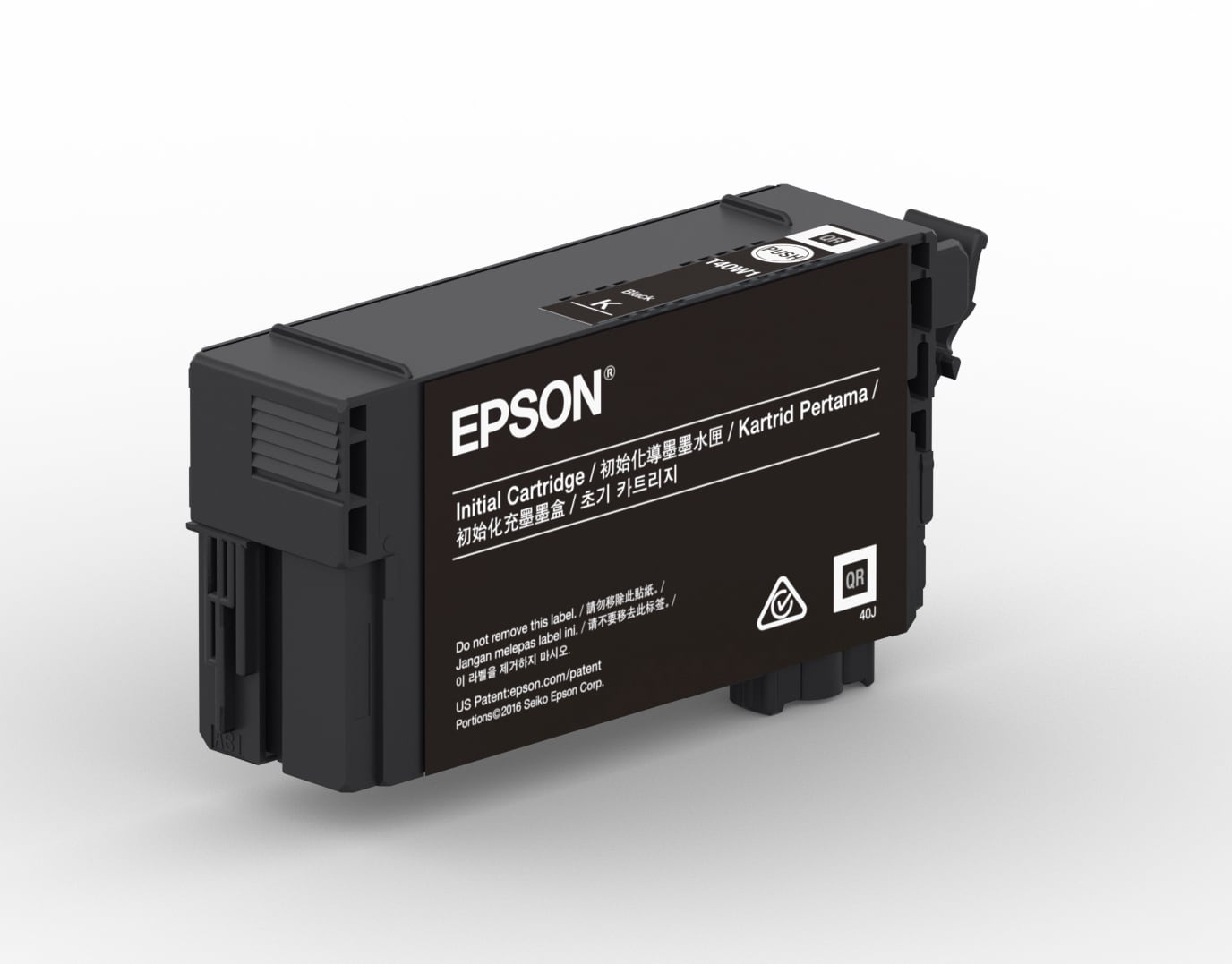

1 x ink cartridge (black) - 50 ml, 1 x ink cartridge (cyan) - 26 ml, 1 x ink cartridge (magenta) - 26 ml, 1 x ink cartridge (yellow) - 26 ml
Height
9.1 inch
Weight
59.52 lbs
Width
38.2 inch
Depth
19.9 inch
Color Category
Black, White
Compliant Standards
CSA, EMC, FCC Class A certified, MET, RoHS, UL
Energy Star
Yes
ENERGY STAR Certified
No
EPEAT Compliant
No
Service & Support Details
Limited warranty - 1 year - on-site - response time: next business day, Technical support - phone consulting / Monday-Friday
Limited Warranty
1 Year
Standby Power Consumption
8 watt
