Tech specs
Brand
Extreme Networks
Product Line
Extreme Networks ExtremeSwitching 5520 series
Model

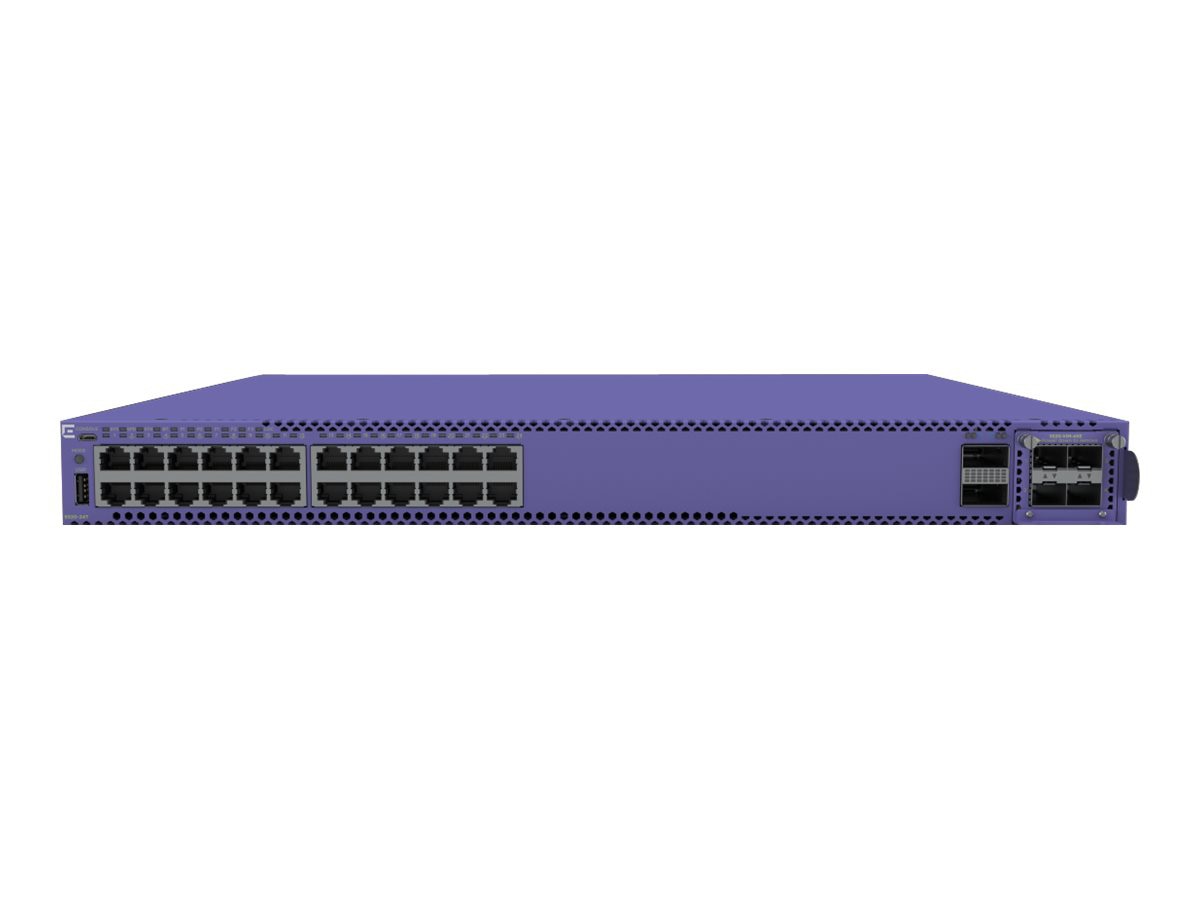

5520-24T
Manufacturer
EXTREME NETWORKS
Compliant Standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz
Features
2 fan modules, 3 fan trays, Energy-Efficient Ethernet (EEE), Media Access Control Security (MACsec)
Form Factor (Hubs & Switches)
Rack-mountable
Manageable
Yes
Max Units In A Stack
8
Ports
24
Product Type
Switch
Stackable
Stackable
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Expansion Slots
1 (total) / 1 (free) x Versatile Interface Module (VIM)
Interface Provided
1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 24 x 10/100/1000 Base-T RJ-45
Port Quantity
24
Port Type
10/100/1000
Bundled Services
1 year XIQ Pilot subscription
Frequency
50/60 hertz
Power Supplies Supported
2
Redundant Power Supply
Optional
Humidity Range Storage
10 - 95% (non-condensing)
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
Operating Humidity
10 - 95% (non-condensing)
Device Type
Internal power supply (not installed)
Packaged Quantity
1
Performance
Aggregate switching bandwidth: 648 Gbps, Forwarding performance: 482.1 Mpps
Height
1.7 inch
Height (Rack Units)
1
Weight
12.21 lbs
Width
17.4 inch
Depth
17.4 inch
Color Category
Purple
Compliant Standards
ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - lifetime
Limited Warranty
Limited Lifetime
