Tech specs
Brand
Honeywell
Product Line
Honeywell
Model

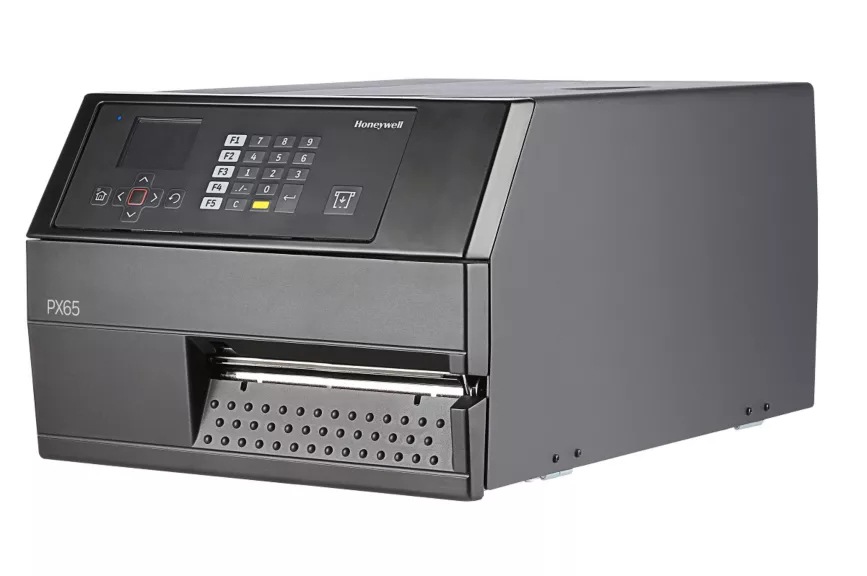

PX65
Manufacturer
Honeywell
Flash Memory Installed
512 megabyte
Memory Technology
SDRAM
RAM Installed
256 megabyte
Product Type
Print server
Remote Management
BOOTP, DHCP, HTTP, HTTPS, ICMP, SFTP, SNMP 1, SNMP 2c, SNMP 3, SSH, TCP/IP, UDP
Security Protocols & Features
EAP-TTLS, FAST, LEAP, PEAP, WEP, WPA, WPA2
Interface
LAN, Parallel, RS232, USB 2.0, USB 2.0 host
Interface Required Connections
1 x LAN, 1 x parallel, 1 x RS-232, 1 x USB 2.0, 1 x USB 2.0 host
Max B/W Print Resolution
203 dpi
Max H-Document Size
6.7 in
Max Mono Print Speed
531.5 Inches per minute
Max Print Size
Roll (6.7 in)
Max Roll Diameter
8.4 inch
Maximum Print Width
6.59 inch
Media Thickness Range
0.061 mm - 0.254 mm
Min H-Document Size
3 in
Print Output Type
Monochrome
Print Speed
Up to 236.2 inch/min - 203 dpi, Up to 531.5 inch/min - max speed - 203 dpi
Wireless Print Technology
Wired, Wireless
Wireless Print Technology Ready
Yes
Barcode Symbology Supported
AIAG, GM1724, HIBCC, ISBT 128, OGMARS, Postnet, UCC/EAN-128, UPC
Media Feeders
1 x manual - 1 roll - Roll (6.7 in)
Media Size Class
Other
Media Sizes
Roll (2.99 in - 6.69 in)
Media Type
Other
Frequency
50/60 hertz
Power Consumption Operational
400 watt
Power Device Type
Power supply
Required Voltage
AC 90-265 volt
Software Type
CUPS driver for Linux, Honeywell Device Types, Honeywell Label Design and Print Package, InterDriver Windows
Power Device Form Factor
Internal
Frequency
865-928 MHz
Language Emulation
C#, DPL, Extensible Mark-up Language (XML), Intermec Direct Protocol, Intermec Fingerprint, Intermec Printer Language (IPL), PDF, ZPL II, ZSim2
Max Operating Temperature
104 degree Fahrenheit
Media Type
Black mark labels, Continuous labels, Gap, Labels, Notch, Ribbon, Tags
Min Operating Temperature
41 degree Fahrenheit
Operating Humidity
10 - 90% (non-condensing)
RFID Compliant Standards
ISO/IEC 18000-6C
Roll Core Diameter
1.5 in, 3 in
Built-in Devices
LCD touch screen
Label Printer Features
Open head sensor, Ribbon end sensor
Office Machine Type
Printer
Printer Product Type
Label printer
Scanner Functionality
None
Printer Functions
Printer
Packaged Quantity
1
Print Technology
Direct Thermal, Thermal Transfer
Height
9.4 inch
Weight
31.08 lbs
Width
13.2 inch
Depth
19 inch
Color Category
Black
Compliant Standards
EN 55032 Class B, FCC Class B certified, RoHS
Energy Star
Yes
ENERGY STAR Certified
No
Energy Star Version
3.0
EPEAT Compliant
No
TCO Certified
No
Standby Power Consumption
5 watt
