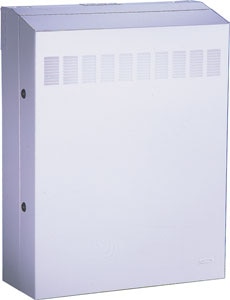

Hubbell network device enclosure/chassis

Features:

Unique knockouts for metal and PVC raceway

Accepts multimedia housing and panels

Mounting for 19" patch panel hinges down for front access termination

Flexible mounting for active equipment

Designed to resist dust, water, and vandalism

Door hinge easily reversed in the field

Pre-configured, surge-protected power

Dimensions:

32.2" (H) x 24.2: (W) x 10" (D) - Maximum Hub Depth: 14"



Specifications:

16 gauge CRS welded construction

Designed specifically for hostile environments: Tamper resistant per Telcordia™ GR-487-CORE; Ventilation pattern developed to comply with UL 1950; Designed to meet NEMA 2

Durable powder coat finish

2 sets of universal mounting rails with #12-24 tapped holes 5/8”, 5/8”, 1/2” EIA standard pattern

Load capacity: 100 lbs.

Accepts maximum hub depth of 14.5” (RE2 and RE4) or 22” (RE4X)

Abundant cable entry through sides, bottom, and top - compatible with major raceway and popular conduit sizes

Designed to dissipate 160W - industry maximum without fan

Weight: RE4 = 50.6 lbs.; RE2 = 45.1 lbs.



Includes:

base/rear section with 19” brackets for 2 hubs

1 front door with 2 locks (NSQ tool)

1 set 19” extension brackets for 2 additional hubs (RE4 only)

1 set 19” bottom hinge brackets for patch panels
