Tech specs
Brand
Juniper, Juniper Networks
Product Line
Juniper Networks
Model

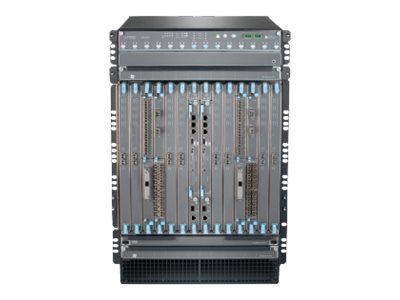

SRX 5800
Manufacturer
Netscreen
Clock Speed
1.8 GHZ
Processor Type
Xeon
Processors Installed
1
RAM Installed
16 GB
Connectivity Technology
Wired
Features
Anti-malware protection, Anti-spyware protection, Class of Service (CoS), DDos attack prevention, DHCP relay, DHCP server, DiffServ support, DoS attack prevention, Fan tray, Firewall protection, Firmware upgradable, High Availability, In-Service Software Upgrade (ISSU), Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), IPv6 support, Link Aggregation Control Protocol (LACP), NAT support, PAT support, Quality of Service (QoS), Syslog support, Traffic Control, Traffic shaping, VPN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing
Form Factor
Rack-mountable
Network Standard
DHCP, IPSec
Product Type
Security appliance
Remote Management
CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol
BGP, Bidirectional Forwarding Detection (BFD), ECMP, IPv4-to-IPv6 Multicast, OSPF, OSPFv3, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing
Expansion Slots
10 (total) / 10 (free) x expansion slot, 2 (total) / 0 (free) x Switch Control Board (SCB), 2 (total) / 1 (free) x Routing Engine (RE), 2 (total) / 2 (free) x Service Processing Card (SPC)
Hot-Plug
Hot-plug
Nominal Voltage
AC 230 V
Power Provided
8200 watt
Power Supplies Installed
2
Power Supplies Supported
4
Redundant Power Supply
Optional
Built-in Devices
128 GB SSD, Enhanced midplane
Encryption
AES, DES, DH, IKE, MD5, PKI, SHA-1, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
41 degree Fahrenheit
Operating Humidity
5 - 85% (non-condensing)
Operating System Required
JUNOS
Authentication Method
RADIUS, X.509 certificates
Bundled With
Juniper Networks SRX5K-RE-1800X4, SRX5K-SCB3
Capacity
BGP instances: 1000, BGP peers: 2000, BGP routes: 1000000, Concurrent sessions: 100000000, Maximum logical network members: 32, Maximum number of users: unlimited, New sessions per second: 420000, OSPF instances: 400, OSPF routes: 1000000, RIP instances: 50, Security zones: 2000, Virtual interfaces (VLANs): 4096, Virtual routers: 2000, VPN tunnel interfaces: 15000, VPN tunnels (site-to-site): 15000
Device Type
Internal power supply
Packaged Quantity
1
Network Device
Firewall throughput (IMIX): 2 Tbps, Firewall throughput (large packets): 2 Tbps, Firewall throughput: 320 Gbps, IPS throughput: 100 Gbps, Latency: 7 µs, VPN throughput (256-bit AES+SHA1 IPSec): 200 Gbps
Height
27.8 inch
Height (Rack Units)
48
Width
17.5 inch
Depth
23.5 inch
Compliant Standards
EMC, NEBS level 3
