Tech specs
Brand
Juniper Networks
Product Line
Juniper Networks
Model

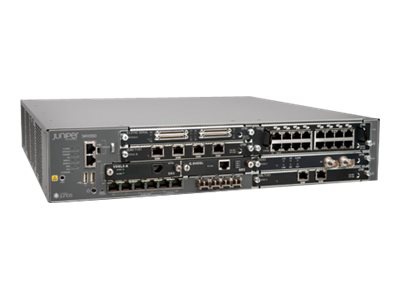

SRX550 Services Gateway
Manufacturer
Netscreen
Flash Memory Installed
8 GB
RAM Installed
4 GB
Compliant Standards
IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP)
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Frame Relay, FRF.12, FRF.15, FRF.16, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP, RS-232, RS-449, V.35, X.21
Features
3G/4G USB Dongle Support, Content filtering, DDos attack prevention, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Firewall protection, IGMP snooping, IPv4 support, IPv6 support, J-Flow, Link Fragmentation and Interleaving (LFI), LLDP support, Modular design, Multiple Spanning Tree Protocol (MSTP) support, NAT support, PAT support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Tagged VLAN, VPN support, Weighted Random Early Detection (WRED)
Form Factor
Rack-mountable
Network Standard
DHCP, IPSec, PPPoA, PPPoE, RSVP
Product Type
Security appliance
Routing Protocol
BGP, DVMRP, ECMP, GRE, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MPLS, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Switching Protocol
Ethernet, Frame Relay
Expansion Slots
8 (total) / 8 (free) x expansion slot
Interface Provided
2 x USB - Type A, 4 x 1000Base-X - SFP (mini-GBIC), 6 x 1000Base-T - RJ-45
Frequency
50/60 hertz
Hot-Plug
Hot-plug
Power Consumption Operational
85 watt
Power Provided
645 watt
Power Supplies Installed
1
Power Supplies Supported
2
Redundant Power Supply
Optional
Operating System
JUNOS
Software Type
Junos Software Enhanced
Encryption
128-bit AES, 256-bit AES, 256-bit SHA, 256-bit SHA-2, DES, DH, IKE, IKEv2, MD5, PKI, RSA, SHA-1, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
9.6 years
Operating Humidity
10 - 90% (non-condensing)
Authentication Method
LDAP, RADIUS, SecurID, X.509 certificates, XAUTH (RADIUS, LDAP, Active Directory)
Capacity
BGP instances: 56, BGP peers: 192, BGP routes: 712000, Concurrent sessions: 375000, Concurrent VPN tunnels: 2000, IPSec VPN tunnels: 2000, Maximum number of remote users: 500, Maximum number of users: unlimited, MLFR maximum physical interfaces: 12, MLPPP maximum physical interfaces: 12, OSPF instances: 56, OSPF routes: 200000, RIP instances: 56, RIP routes: 32000, RIP routes: 712000, Security policies: 8000, Security zones: 96, Static routes: 100000, Virtual interfaces (VLANs): 3967, Virtual routers: 128, VPN tunnel interfaces: 456
Device Type
Internal power supply
Packaged Quantity
1
Service Activation
No
Network Device
Antivirus throughput: 300 Mbps, Connection rate: 27000 connections per second, Firewall throughput (64-byte packet size): 700000 packets per second, Firewall throughput (HTTP): 2 Gbps, Firewall throughput (IMIX): 2 Gbps, Firewall throughput (large packets): 7 Gbps, IPS throughput: 800 Mbps, Routing throughput: 1000000 packets per second, VPN throughput (IPSec): 1 Gbps
Included Accessories
Rack mount kit
Height
3.5 inch
Height (Rack Units)
2
Weight
21.96 lbs
Width
17.5 inch
Depth
18.2 inch
Compliant Standards
AS/NZS 60950-1, CB, CISPR 22 Class A, CS-03, CSA C22.2 No. 60950-1, DOC, EN 300386, EN 60950-1, EN55022 Class A, FCC Class A certified, ICES Class A, ICSA Firewall certified, ICSA IPSec certified, JITC, UL 60950-1, VCCI Class A
ENERGY STAR Certified
No
