Tech specs
Brand
Lenovo
Product Line
Lenovo ThinkPad
Model

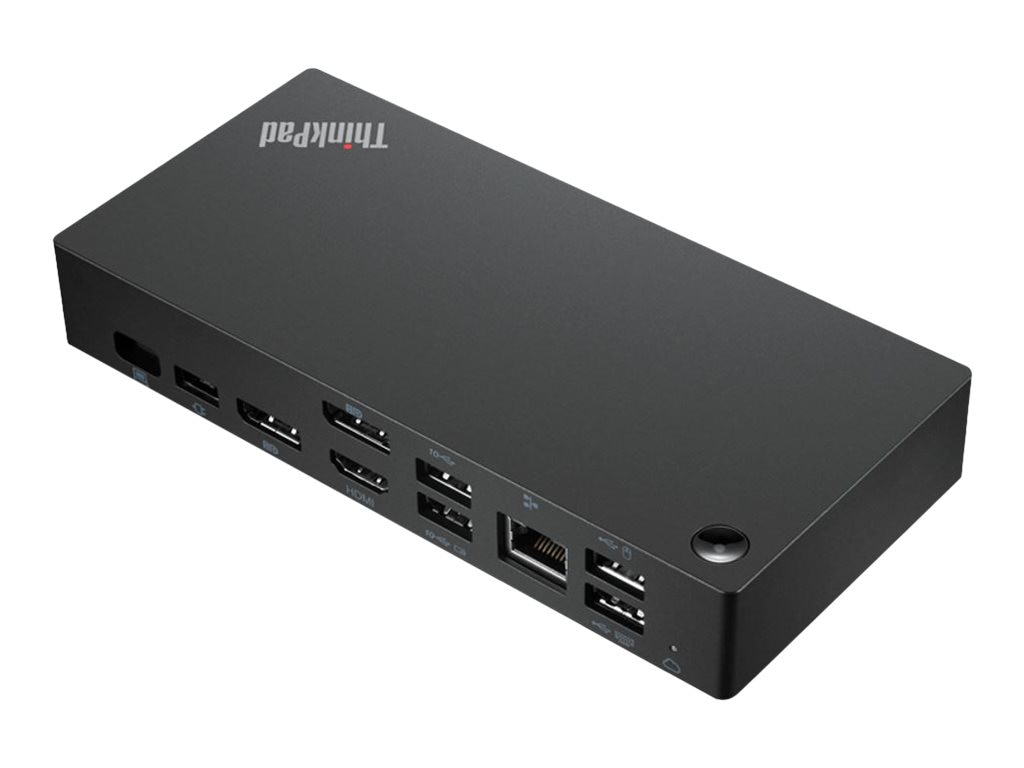

Universal USB-C Smart Dock
Manufacturer
Lenovo
Optical Drive Type
None
Storage Controller Type
None
Data Link Protocols
Gigabit Ethernet
Host Interface
USB-C

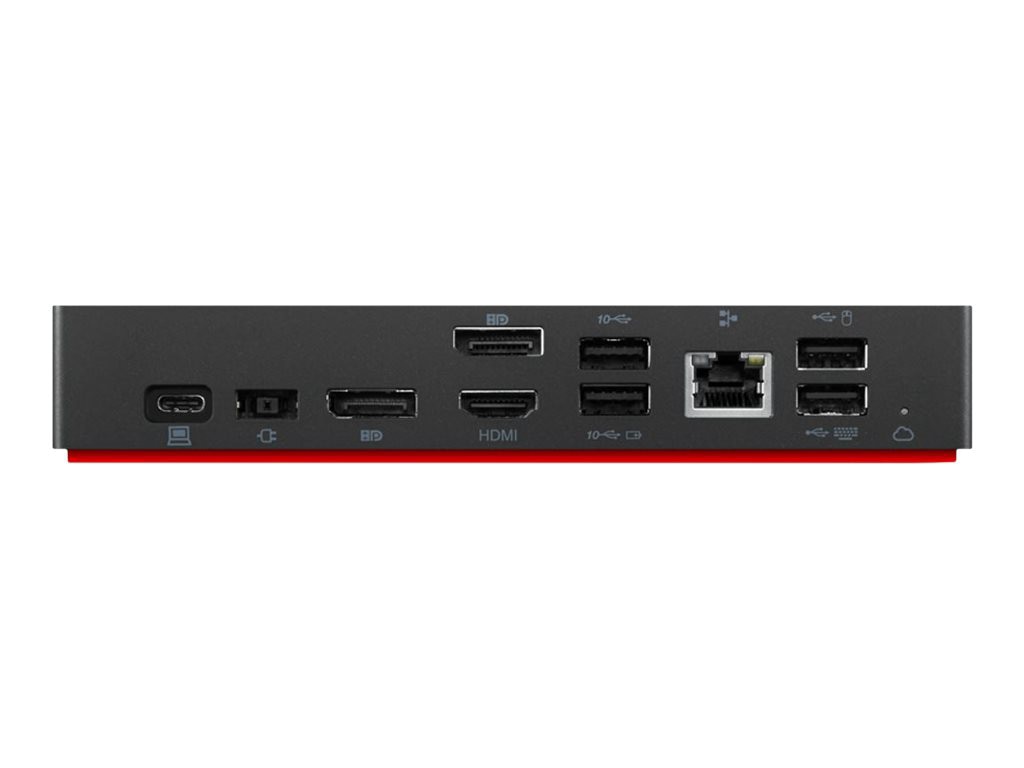

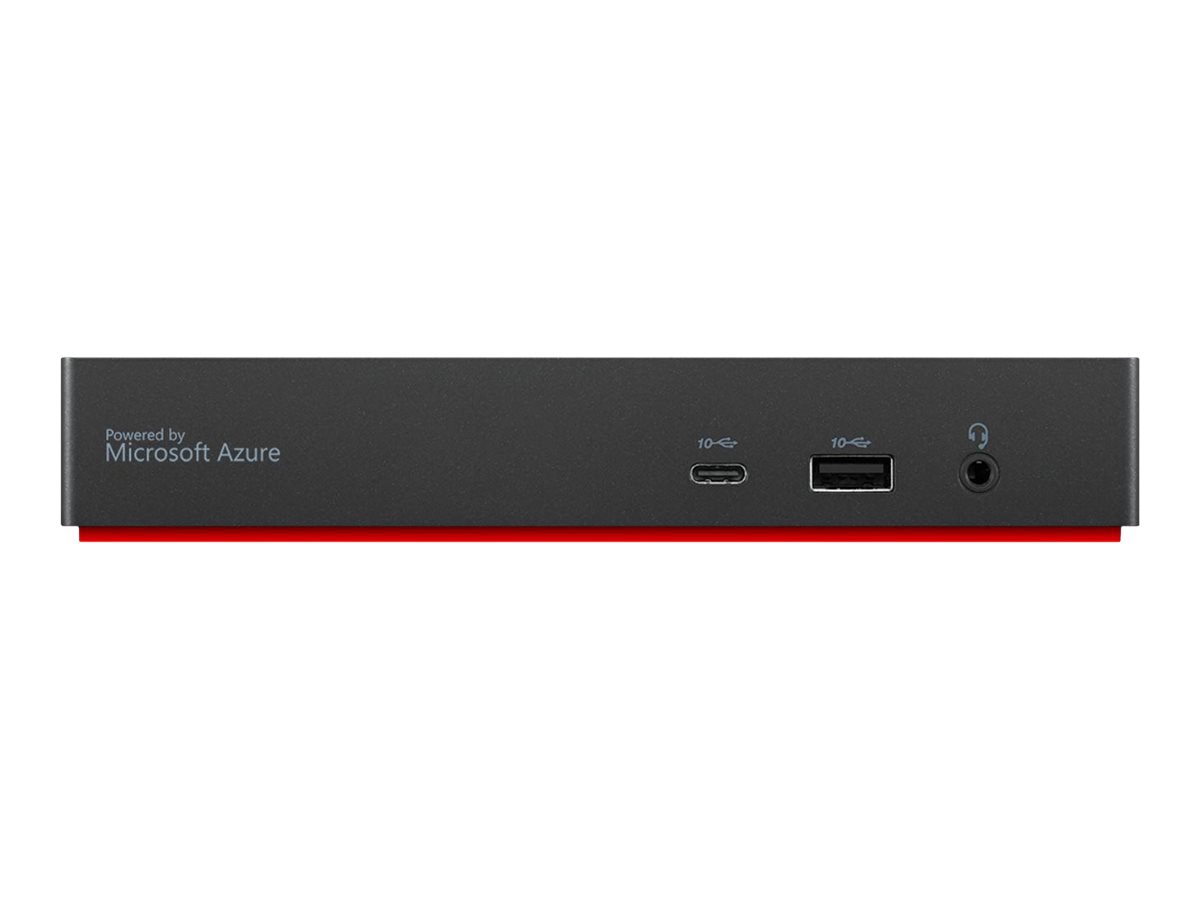

Interface Provided
1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole, 1 x audio / video - HDMI - 19 pin HDMI Type A, 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45, 1 x USB-C - 24 pin USB-C, 2 x audio / video - DisplayPort - 20 pin DisplayPort, 2 x USB 2.0 - 4 pin USB Type A, 3 x USB 3.1 - 9 pin USB Type A
Video Interfaces
2 x DP, HDMI
Output Type
None
Power Device Type
Power adapter
Power Provided
135 watt
Max Operating Temperature
95 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating System Required
Microsoft Windows 7 / 10, Windows 11
Country
United States
Features
100W output power with 135W power adapter connected, Pass through MAC address, Preboot Execution Environment (PXE) support, Security lock slot (cable lock sold separately), Wake on LAN
Max Resolution Details
3840 x 2160 - 30 Hz (Triple Display), 3840 x 2160 - 60 Hz (Dual Display)
Packaged Quantity
1
Product Type
Docking Station
Security Slot Type
Kensington security slot

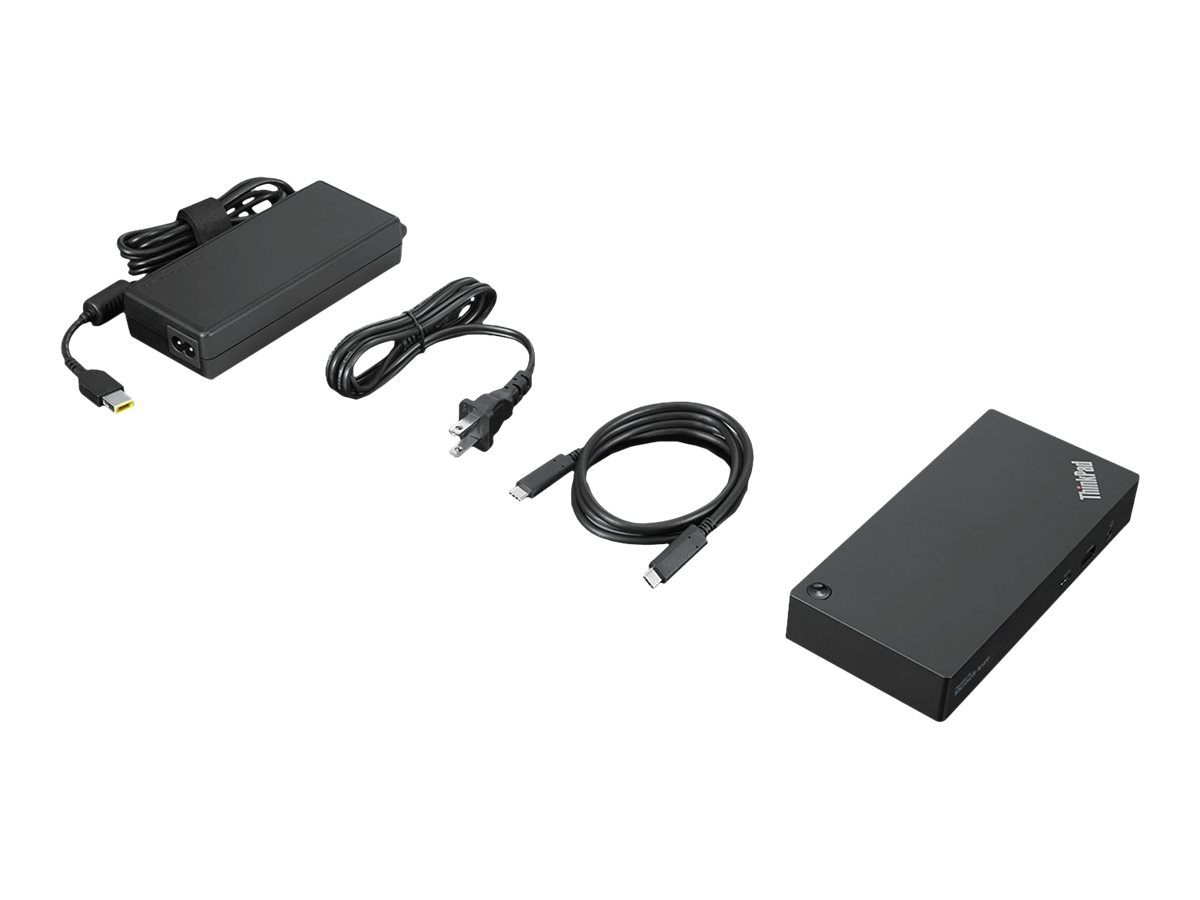

Cables
1 x USB-C to USB-C cable - external
Height
1.2 inch
Weight
13.68 ounce
Width
6.7 inch
Depth
3.1 inch
Color
Black
Color Category
Black
Compliant Standards
BSMI, CB, cULus, FCC, ICES, KCC, LoA, RCM, TUV Mark, VCCI
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - replacement - 3 years
Limited Warranty
3 Year
Compatibility Specs
Lenovo ThinkPad E14 Gen 3 20YE ¦ Lenovo ThinkPad T14s Gen 2 20WM ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0
