Tech specs
Brand
NEC
Product Line
NEC P Series
Model
P547UL
Manufacturer
NEC Technologies
Connectivity Technology
Wired
Ethernet (LAN) Capability
Ethernet
LAN and Wireless Image Transferring Protocols
Wired LAN
LAN and Wireless Presentation
LAN
Interface Provided

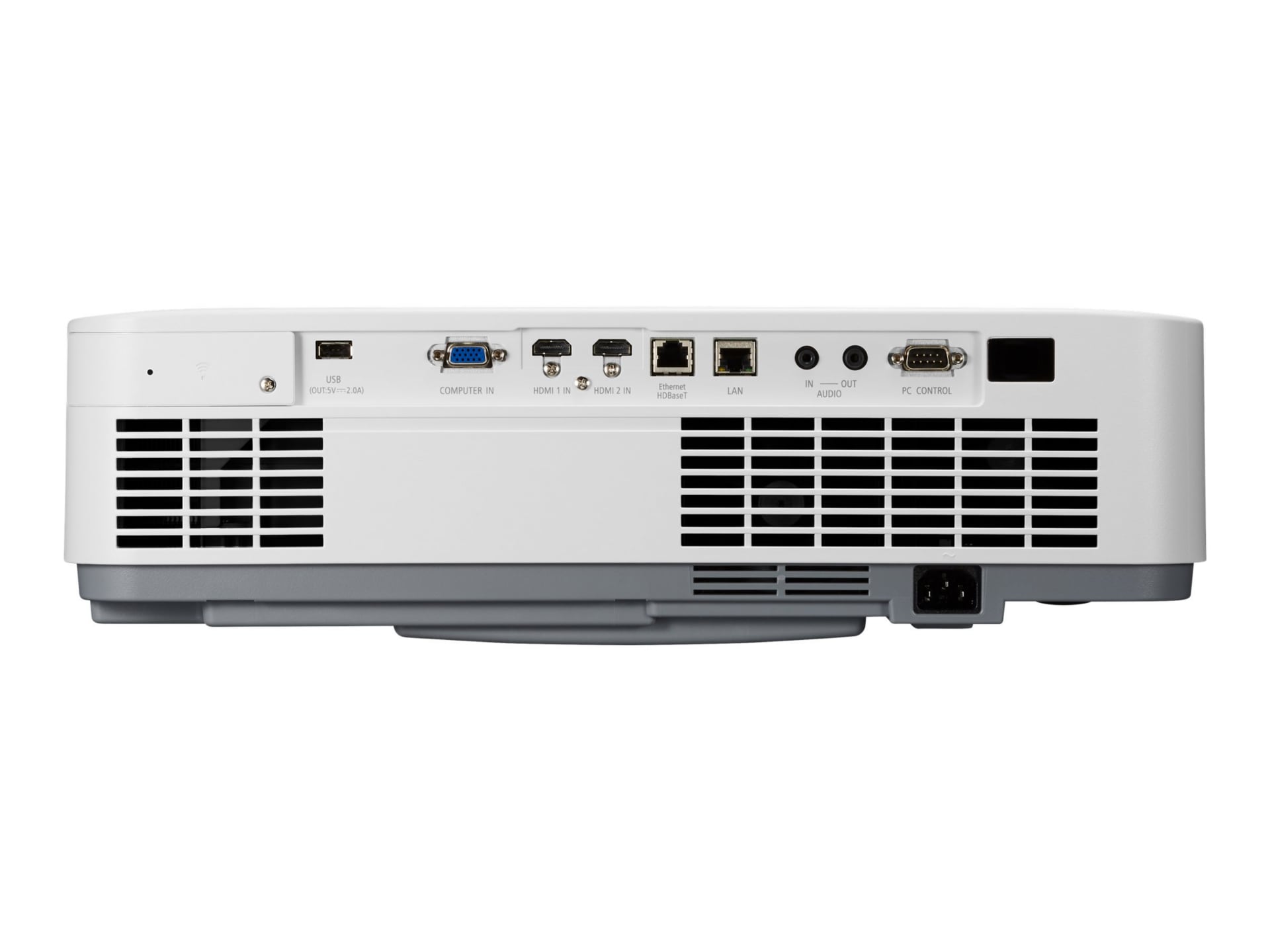

1 x audio line-in - mini-phone stereo 3.5 mm, 1 x audio line-out - mini-phone stereo 3.5 mm, 1 x HDBaseT input - RJ-45, 1 x network - RJ-45, 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management), 1 x USB - 4 pin USB Type A, 1 x USB - 4 pin USB Type B (management), 1 x VGA input - 15 pin HD D-Sub (HD-15), 2 x HDMI input - 19 pin HDMI Type A
Video Interfaces
HDBaseT, HDMI, VGA
Form Factor
Integrated
Output Type
Speaker(s)
Speaker Output Mode
Mono
Speaker Output Power
20 watt
Video Modes
1080i, 1080p, 480i, 480p, 4K UHD (3840 x 2160), 576i, 576p, 720p
Brightness
5400 lumens
Contrast Ratio
3000000:1
Display Resolution Abbreviation
4K UHD
Focus Type
Manual
Horizontal Keystone Correction
-30 / +30
Keystone Correction Direction
Horizontal, Vertical
Lens Shift Type
Manual
Max Diagonal Image Size
300 inch
Max Horizontal Sync
100 kilohertz
Max Projection Distance
42 ft
Max Resolution
3840 x 2160
Max Vertical Sync
120 hertz
Min Diagonal Image Size
29.9 inch
Min Projection Distance
2.6 ft
Native Aspect Ratio
21:9
Native Resolution
1920 x 1200
Portability
Non-portable
Throw Ratio
1.23 - 2:1
Vertical Keystone Correction
-30 / +30
Vertical Lens Shift
0% / 60%
Zoom Factor
1.6x
Zoom Type
Manual
Frequency
50/60 hertz
Power Supply
AC
Required Voltage
AC 100-240 volt
Software Type
ProAssist Software
Built-in Devices
0.64" LCD with MLA
Controls & Adjustments
Keystone correction
Lamp Life
20000 hour(s)
Lamp Type
Laser/Phosphor
Lens Aperture
F/1.5-2.1
Lens Shift
Horizontal, Vertical
Lens Shift Detail
29% / 29%
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
20 - 80% (non-condensing)
Sound Emission
26 decibel
Sound Emission (Economic Mode)
22 decibel
Speakers
1 x mixed channel
Class
Digital projector
Packaged Quantity
1
Product Type
LCD projector
Projector Features
16:10 aspect ratio support, 16:9 aspect ratio support, 4:3 aspect ratio support, AMX Control System, Auto Power Off, Auto power on, Carbon Savings Meter, Cornerstone Correction, Crestron RoomView, Eco Mode, Landscape mode, NaViSet Administrator 2, PJlink, Portrait mode, ProAssist compatible (limited), Tilt-free Installation
Recommended Use
Presentation and multimedia
Included Accessories
2 x AAA batteries, Lens cover, Remote control
Height
5.6 inch
Weight
20.72 lbs
Width
18.9 inch
Depth
16 inch
Color Category
White
Compliant Standards
CAN/CSA 62368-1, FCC Part 15 Class B, ICES-003 issue 7, IP5X, UL 60950-1 Second Edition, UL 62368-1 Third Edition
ENERGY STAR Certified
No
TCO Certified
No
Service & Support Details
Limited warranty - 5 years, Limited warranty - parts and labor - 20000 hours
Limited Warranty
5 Year
Standby Power Consumption
0.3 watt
