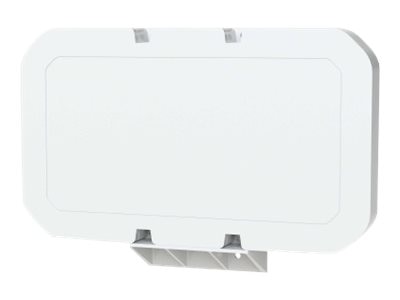

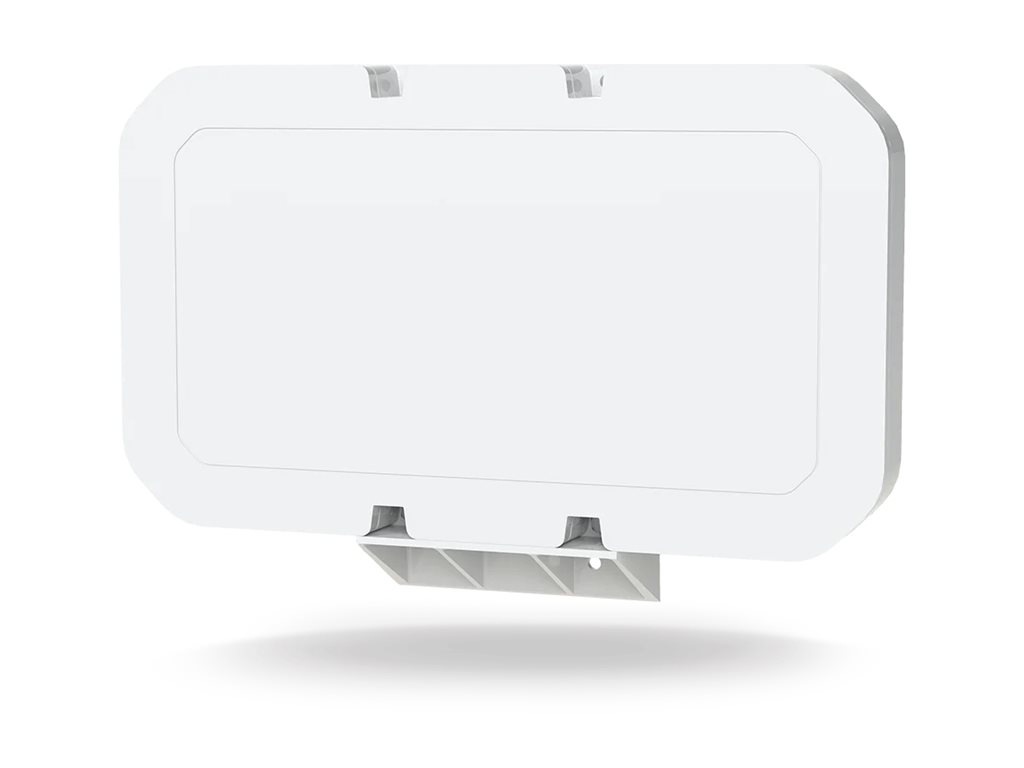

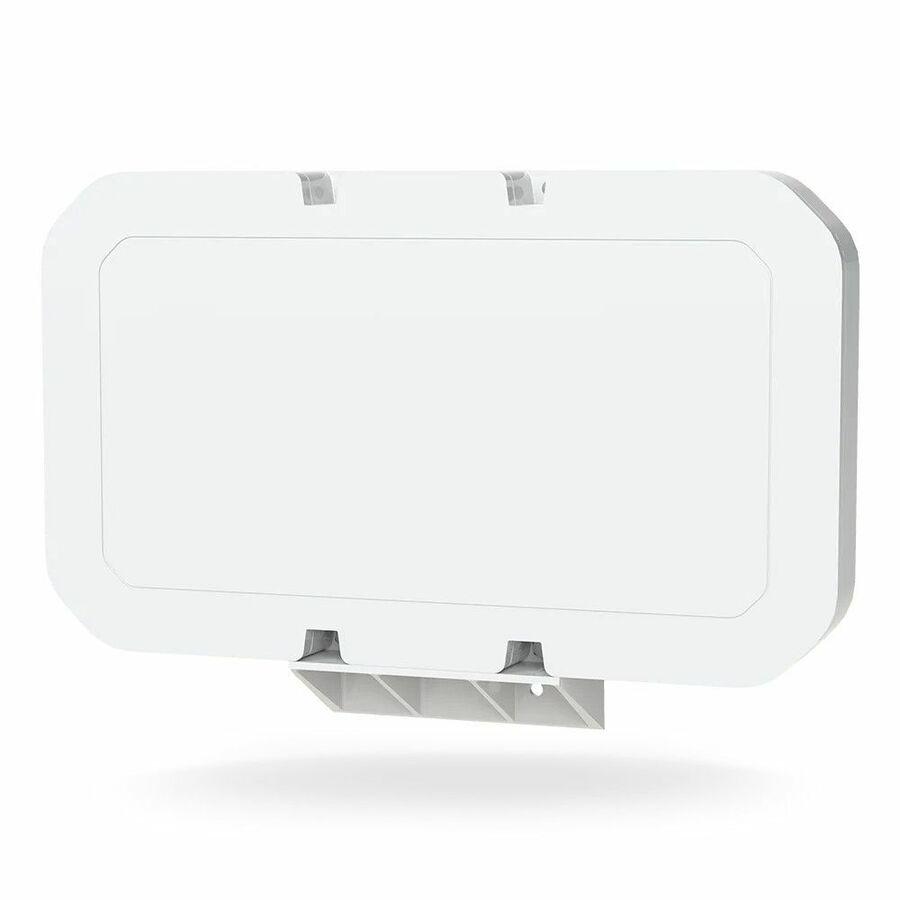

Panorama Antennas DWMM4[G]-6-60 Antenna
![Panorama Antennas DWMM4[G]-6-60 Antenna](https://webobjects2.cdw.com/is/image/CDW/6922776?$product-detail$)
Quick tech specs
- 4×4 MiMo Omnidirectional Antenna
- 4G/5G LTE Ready
- Optional GPS/GNSS
- Multiple Mounting Options
- Covers Wideband 600-6000MHz
- IP66 rated
Know your gear

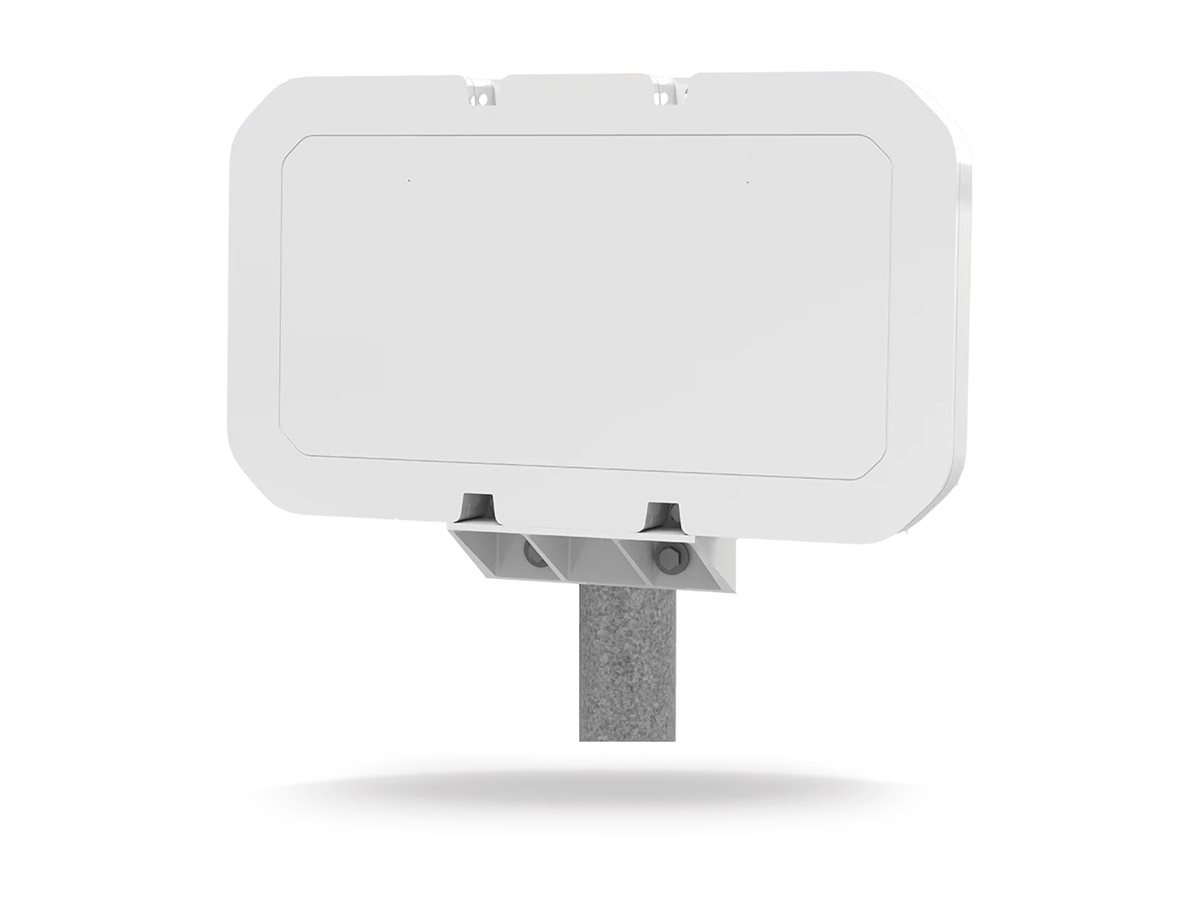

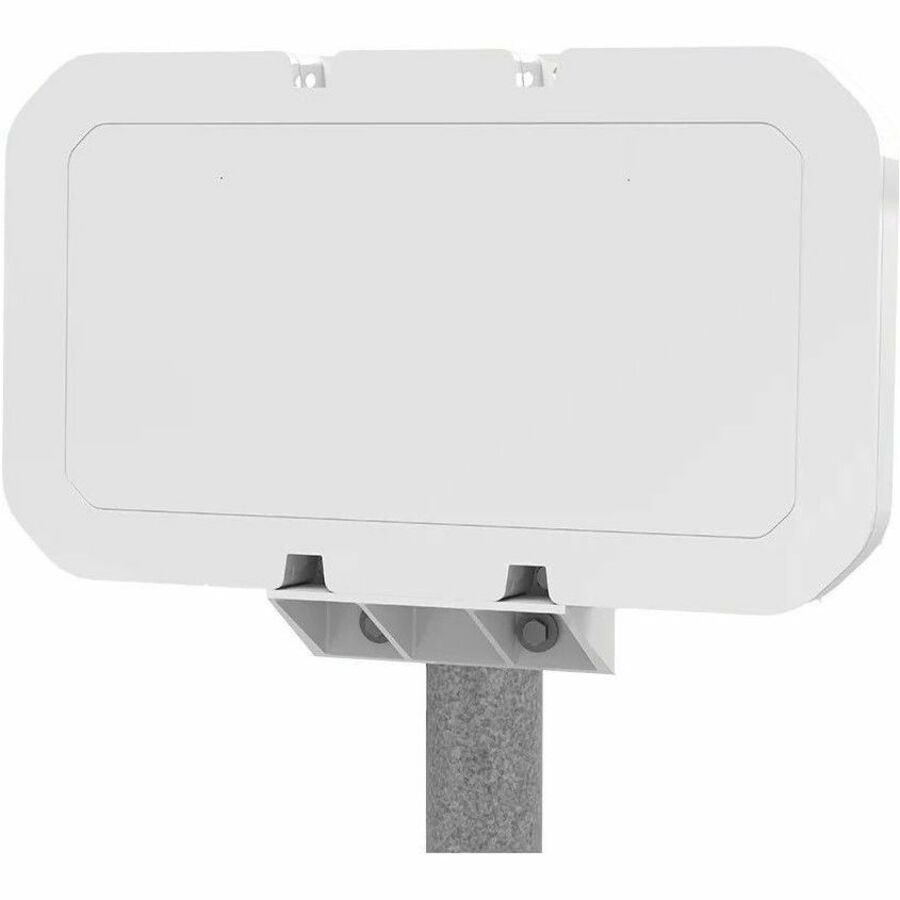

The Panorama DWMM4[G]-6-60 Antenna Provides a 4x4 MiMo Solution for Global 4G/5G Networks from 617 MHz to 6000 MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a vast range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

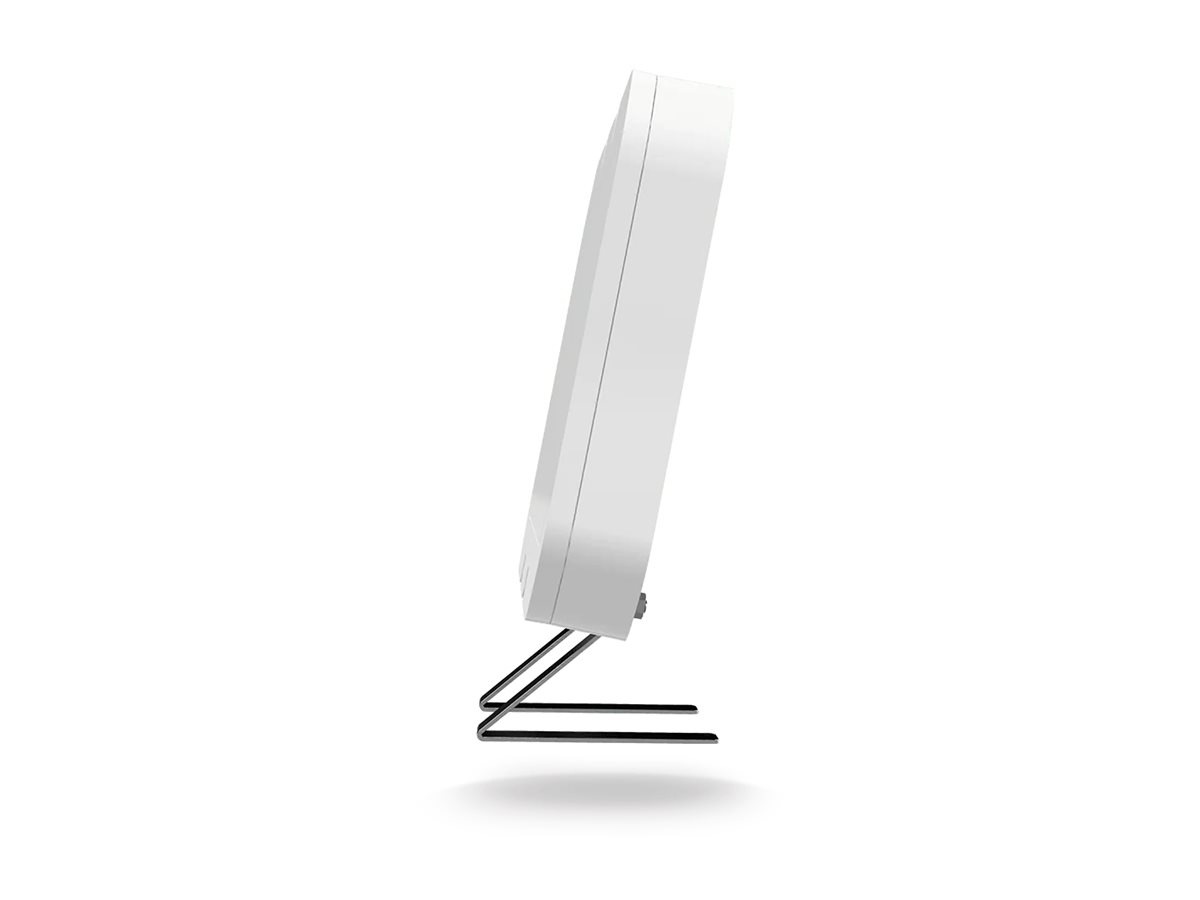

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy antenna placement without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimizes exposed connector joints and simplifies cable management for easy installation.
