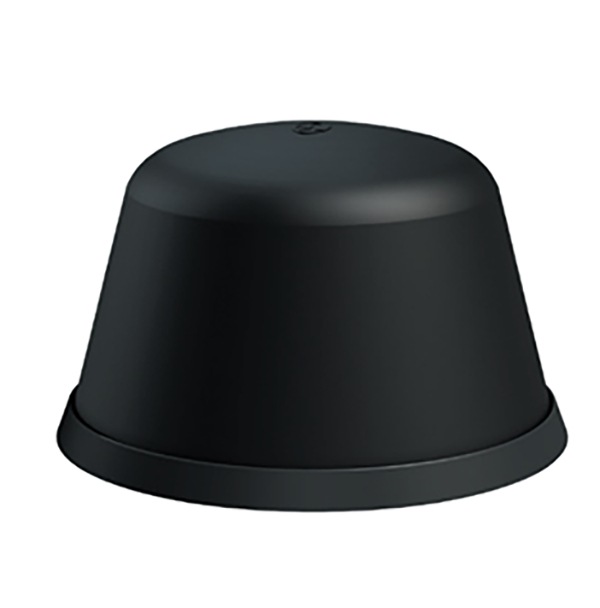

Panorama Antennas Low Profile 4G/5G, WiFi & GPS/GNSS
Quick tech specs
- Designed to operate at 617 MHz to 960 MHz frequency
- Offers up to 26 dB gain
- Get improved gps signal from further away with this antenna
- Can be mounted as panel mount
Know your gear
- Rugged Low Profile Design
- Wideband 4G/5G Element
- Optional up to 4x4 MiMo Dual Band WiFi + 6e
- Optional Integrated GPS/GNSS Antenna
The LP[G]E antenna series is a range of low profile antennas in a robust compact housing, with a wideband cellular element covering 4G/5G frequencies from 617- 960/ 1427-6000MHz.
The LGE version incorporates an active GPS/GNSS antenna with a 26dB gain LNA and further variants can feature from one to four dual band WIFI + 6e elements.
Designed to be tough yet cost effective, the antenna features a IP69K / IK10 rated enclosure, moulded in LEXAN. The antenna is supplied with short coaxial cable tails and can be kitted with Panorama Antennas' low loss extension cables in various length and connector configurations.
This antenna does not require a ground plane for use above 698MHz and maintains a high level of performance even when mounted on a non-metallic surface.
