Tech specs
Brand
Pepwave
Product Line
Pepwave MAX
Model
BR2 Pro
Manufacturer
Peplink
Broadband Transmission Technology
2.4 GHz / 5 GHz
Cellular Data Connectivity Technology
LTE
Compliant Standards
IEEE 802.1Q, IEEE 802.3at, UPnP, X.509
Connectivity Technology
Wired, Wireless
Data Link Protocols
2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
2x2 MU-MIMO technology, Advanced QoS, Captive Portal, DHCP reservation, DHCP server, DNS proxy, DoS attack prevention, Drop-in mode, E-mail notification, Failover protection, High Availability, Ignition Sense, Load balancing, NAT support, Passive PoE supported, Port forwarding, Pre-Shared Key (PSK), SIP ALG (Application Layer Gateway), Syslog support
Form Factor (Hubs & Switches)
Desktop
Integrated Switch
4-port switch
Key Features
Firewall, USB port, VPN support
Network Standard
DDNS, DHCP, PPPoE
Product Type
Wireless router
Remote Management
HTTPS, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol
Static IP routing
Status Indicators
Cellular, Status
WAN Ports Quantity
2
Wireless LAN
802.11a/b/g/n/ac/ax
Installed Quantity
2
Modem Transmission Data Rate
4 GBps
Expansion Slots
4 Nano-SIM

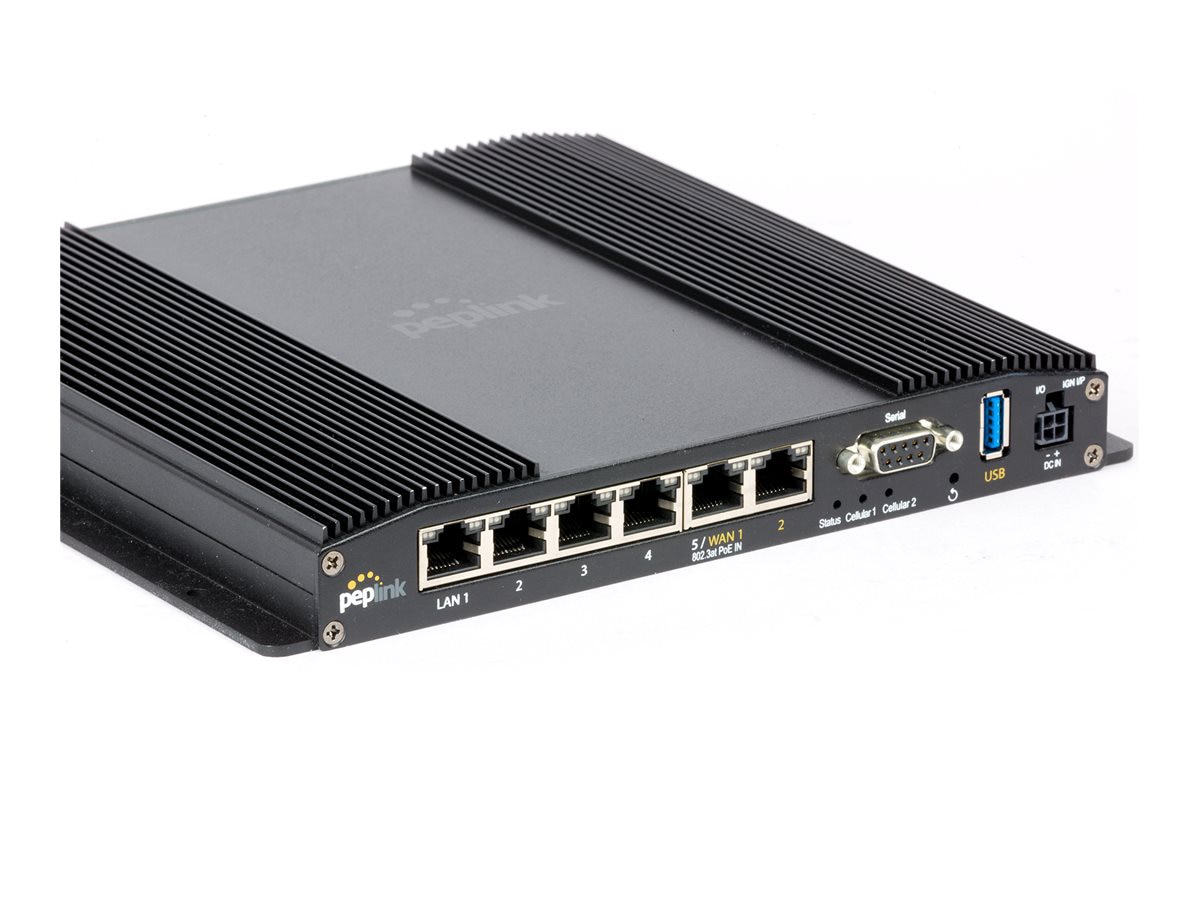

Interface Provided
Antenna: 1 x SMA - GPS, Antenna: 2 x RP-SMA - Wi-Fi, Antenna: 8 x SMA, LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 3.0: 1 x 9 pin USB Type A, WAN / LAN: 1 x 2.5GBase-T (PoE+) - RJ-45, WAN: 1 x 2.5GBase-T - RJ-45
Power Consumption Operational
12 watt
Required Voltage
AC 100-240 volt
Software Type
Pepwave MAX Firmware
Antenna Form Factor
External detachable
Encryption
256-bit AES
Max Operating Temperature
149 degree Fahrenheit
Min Operating Temperature
-40 degree Fahrenheit
Operating Humidity
15 - 95% (non-condensing)
Authentication Method
Radio Service Set ID (SSID), RADIUS
Capacity
IPSec tunnels: 5, Maximum number of access points: 30, Maximum PPTP/L2TP/OpenVPN users: 3, Number of PepVPN/SpeedFusion Peers: 2 (maximum 5), Recommended users: 1 - 150, SSIDs total: 16
Country
Worldwide
Device Type
External power adapter
Packaged Quantity
1
Product Type
Wireless cellular modem
Service Activation
No
Bridge & Router
Routing throughput: 1 Gbps, SpeedFusion throughput (256-bit AES): 200 Mbps, SpeedFusion throughput: 400 Mbps

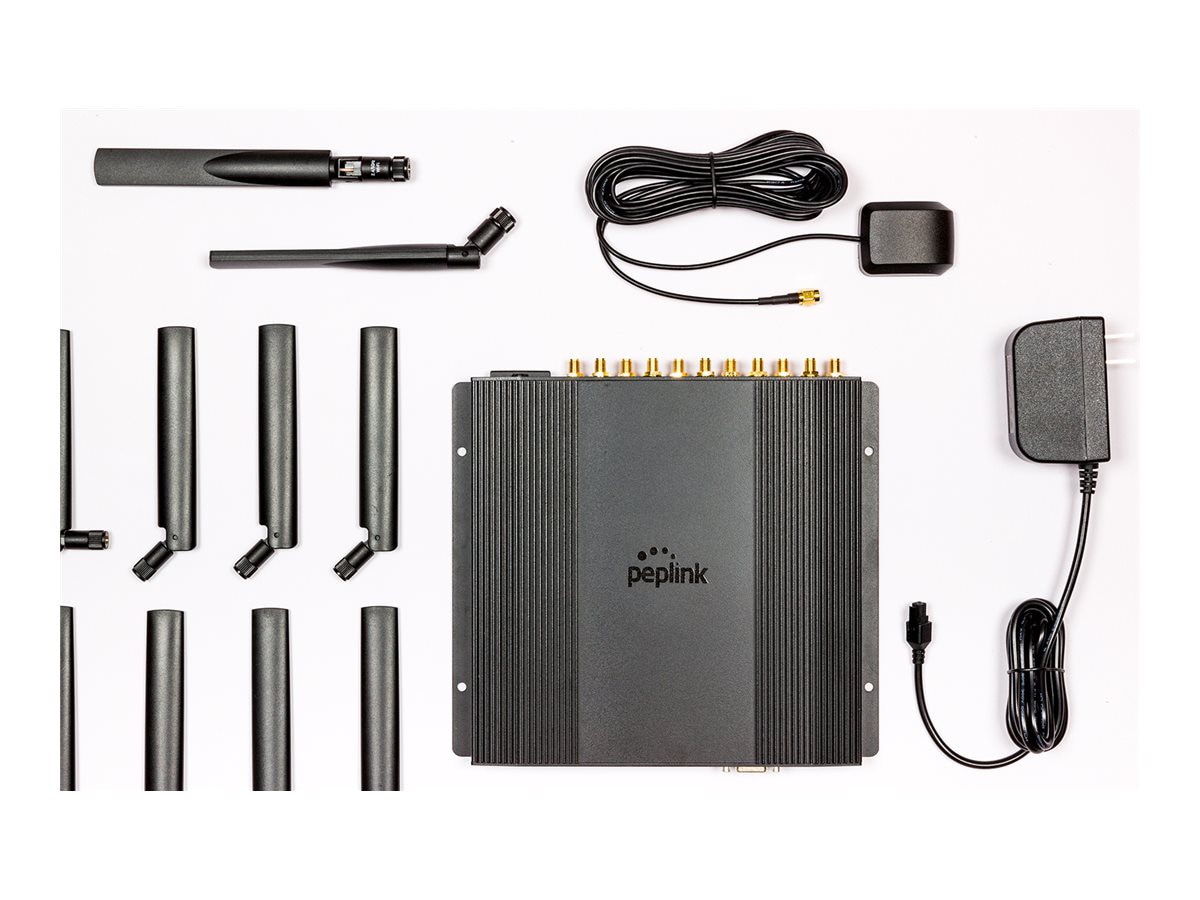

Included Accessories
2 x Wi-Fi antennas, 8 x LTE/5G antennas, GPS antenna
Height
1.2 inch
Weight
2.43 lbs
Width
8.6 inch
Depth
7.7 inch
Color Category
Black
Compliant Standards
E Mark, EN 50155, EN 61000, EN 61373, FCC, RoHS
Service & Support Details
Limited warranty - 1 year
Limited Warranty
1 Year
