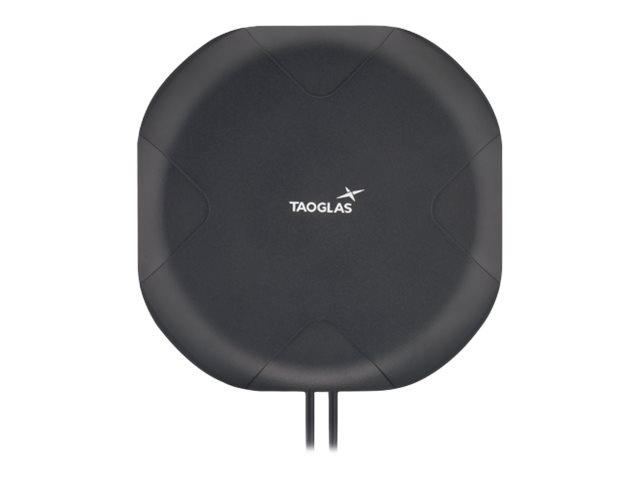

Taoglas TGX.45 - antenna

$199.68
$145.99
Mfg # TGX.45.A.BI.02 CDW # 8118791 | UNSPSC 43221723

Quick tech specs

  • Antenna
  • cellular
  • omni-directional
  • dipole
  • 3.97 dBi
  • wall-mountable, pole mount, glass-mounted
View All View More

Know your gear

The Taoglas TGX.45.A is a 2x 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all sub 6 GHz cellular bands from 400 to 6000 MHz. It uses two dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receive signal levels, leading to better coverage and performance, especially in urban environments.

The TGX.45 design is an evolution of the hugely successful TG.45 antenna design and it is unrivaled in its ability to cover all 5G/4G Sub 6 GHz bands. The antenna is tuned for great performance at the recently established 5GNR bands between 3300-4200 MHz and covers the Band 31 (450 MHz) and Band 71 (617 MHz) at the lower end of the 5G/4G frequency spectrum. High efficiency and good gain is achievable at each band on both MIMO antennas.

The cross polarized antennas' layout also enhances MIMO performance capabilities, thus improving signal quality. This is achieved by positioning the antenna elements orthogonal to each other aligning with the +/-45 degree polarized signals received from most base station antennas and in turn, enhances throughput capacity giving the user the best possible cellular performance for their device. The TGX.45 has been designed for typical applications including gateways, routers and wireless access points that require, high efficiency and unrivaled performance, and a pair of antennas can be used to create a 4 x 4 MIMO solution.

The robust TGX.45 enclosure is IP65 rated and manufactured from ASA for exceptional mechanical performance. The TGX.45 is an omnidirectional antenna but the mounting bracket allows the user to position the antenna and lock it into place for optimal performance.
$199.68
$145.99
Advertised Price
Availability: 3 units In Stock
