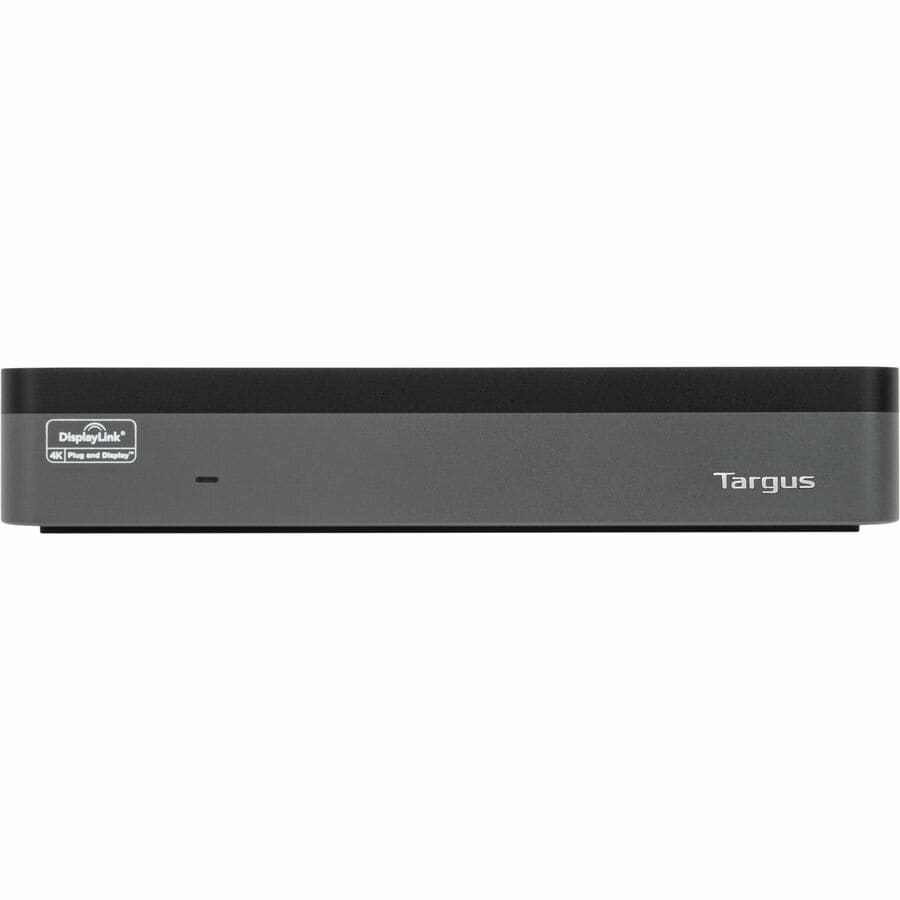

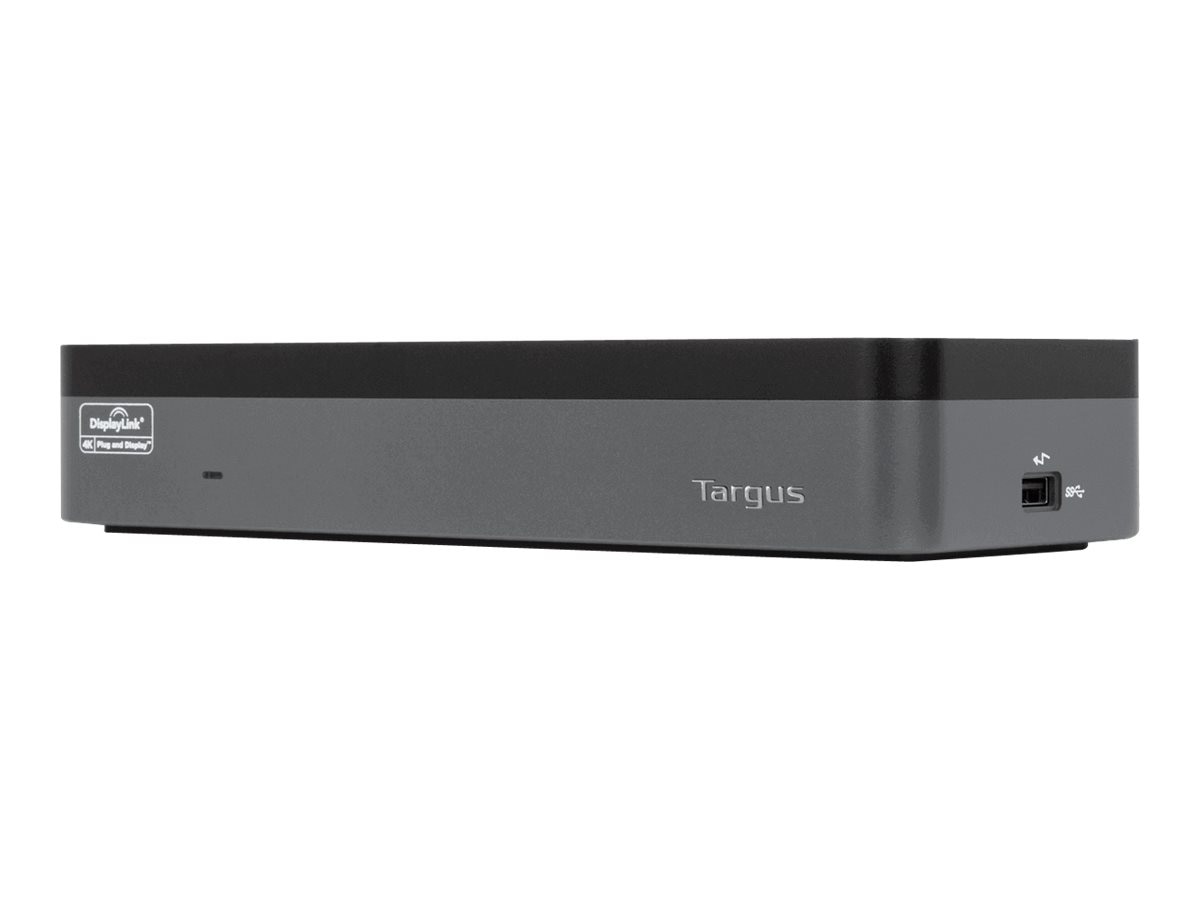

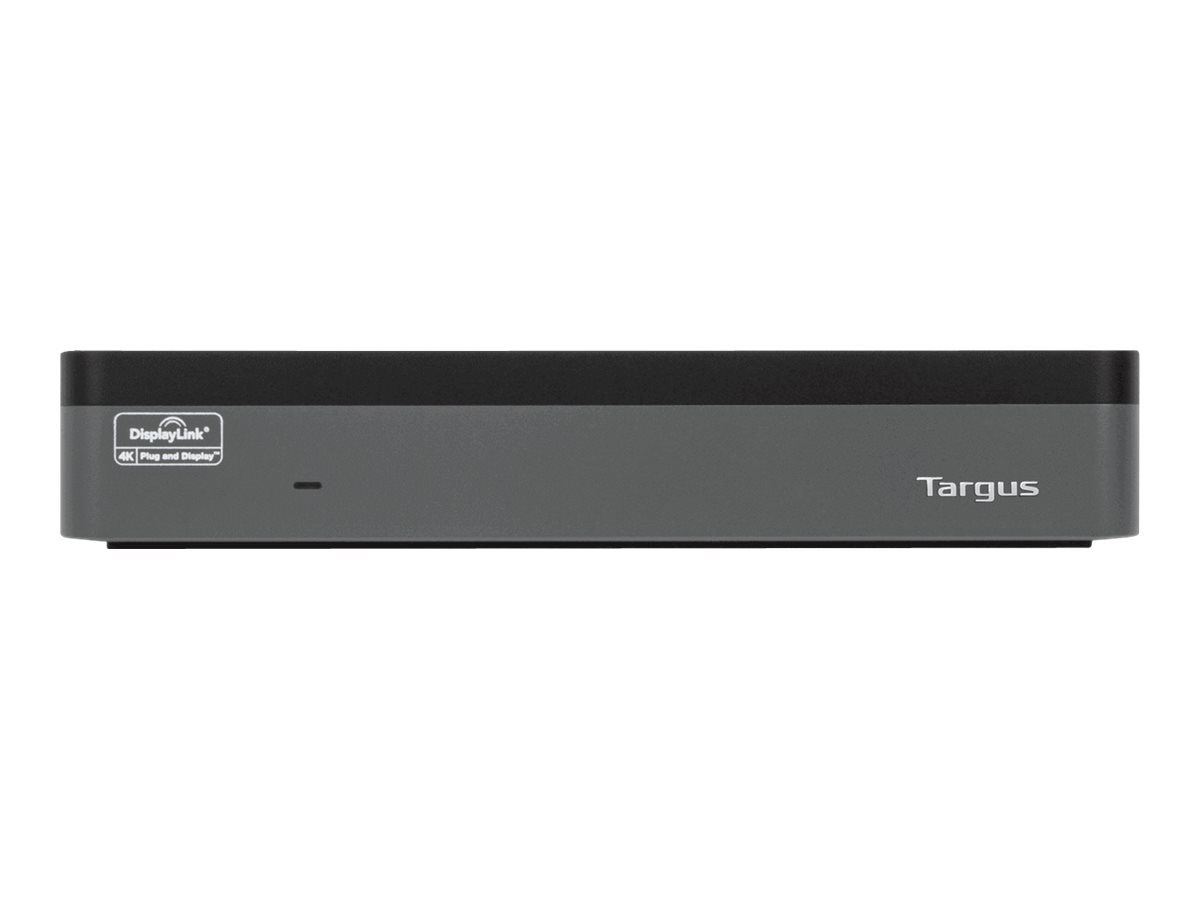

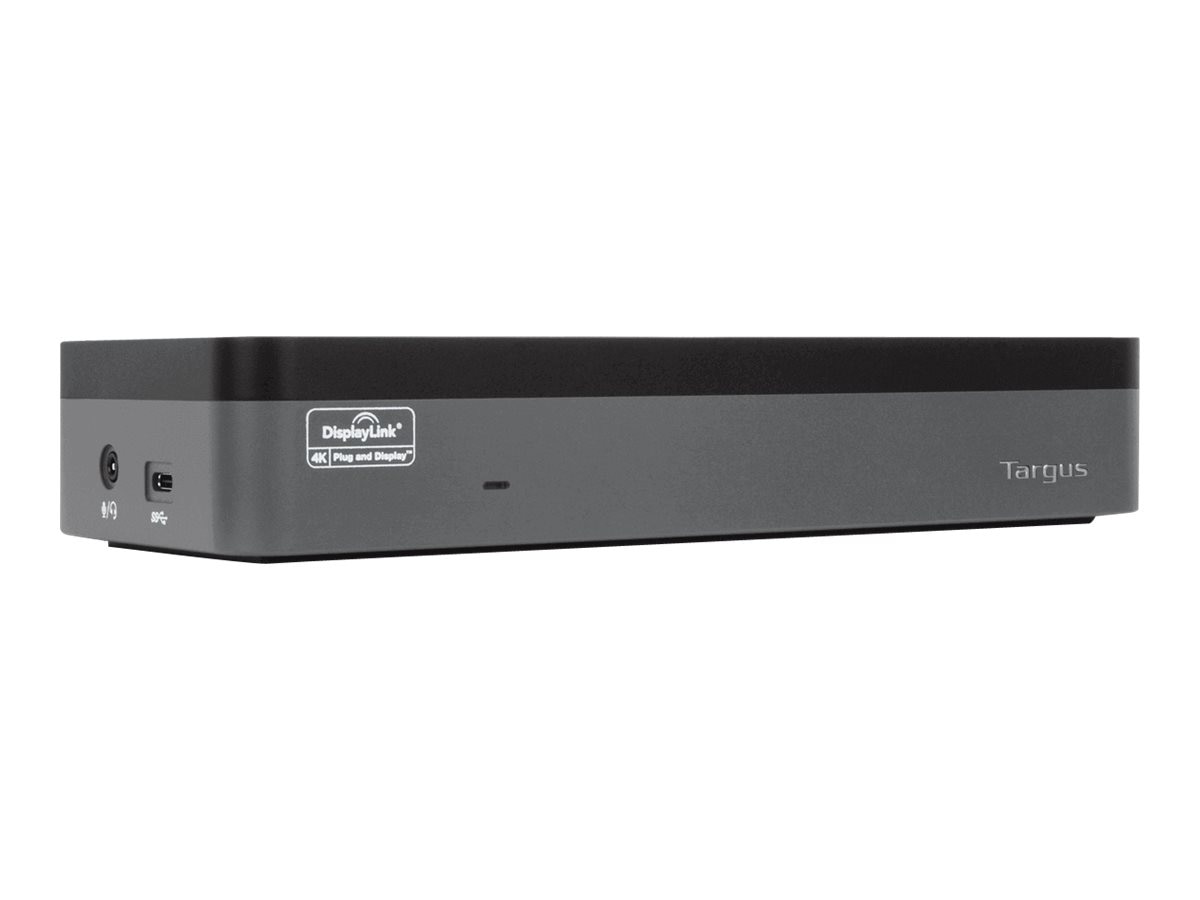

Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
$476.99
Mfg # DOCK570USZ
CDW # 5723727
| UNSPSC 43211602
Quick tech specs
- Supports single 5K and four 4K UHD displays via four DisplayPort (3840 x 2160 p60) or four HDMI (3840 x 2160 p50) ports (or combination of)
- Power Delivery 2.0 up to 100WDC (90W legacy devices using barrel tips)
- 4 USB 3.2 Gen 1 Type-A ports (1 fast charging) connect essential peripherals
- 1 3.5mm combo Audio In/Out for mics,speakers,and headphones with Apple and
- Alt Mode host compatible (including Thunderbolt™ 3 and other alt modes)
- 1 USB 3.2 Gen 1 Type-C port
- 1 Gigabit Ethernet port
Know your gear

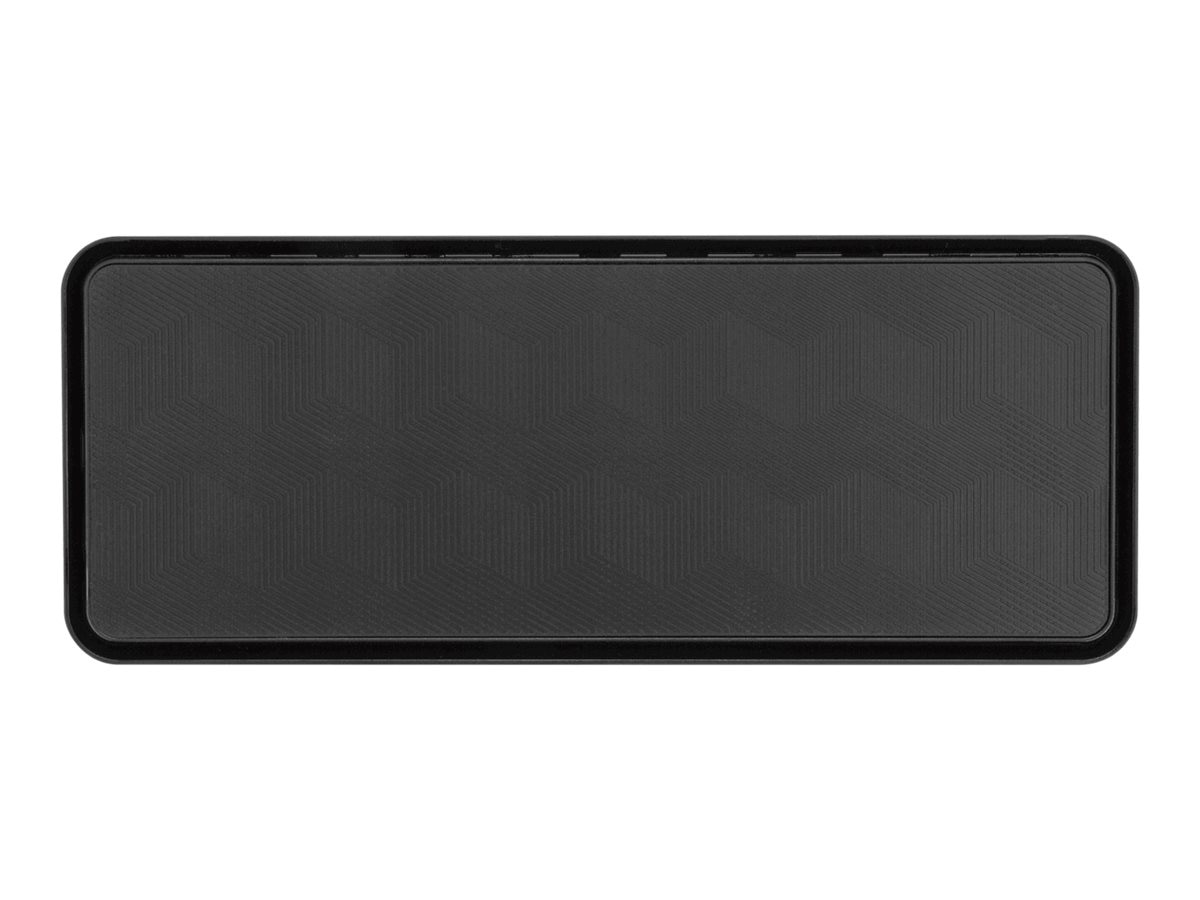

Boost productivity and performance with the world's first enterprise-class universal docking station to deliver four 4K extended displays. Ideal for large enterprises - the Targus USB-C™ Universal Quad 4K (QV4K) Docking Station maximizes workstation viewing. Dual DisplayLink® DL-6910 chip technology supports up to four DisplayPort (3840 x 2160 p60) or HDMI (3840 x 2160 p50) displays. The docking station includes numerous additional ports to connect your essential peripherals and Ethernet network. This sleek dock helps reduce clutter by providing the ease of a single connection for key peripherals like your mouse, keyboard, and more. Its rubberized, padded bottom protects against scratches, while the VESA bracket mounting provision allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings. Your most advanced configurations become easy with compatibility across virtually any laptop and most standard peripherals. Charging tips and a USB-C to USB-A adapter included to make this dock compatible with a variety of legacy laptops from major brands.
Add to Compare
Enhance your purchase
Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Deliv is rated
4.10 out of
5 by
7.
Rated 5 out of
5 by
jsg from
It is a wire saver! (only one wire to the PC)
I originally got it to work with 2 1080 27" and a 4k 43" on my PixelBook. and was perfect. 4k at 60fps on the 4k and 1080 at 60fps on one and 1080 at 144 fps on the other. I now use the dock between my desk top (Windows/Still issues on linux) a 2012 Mac-pro and the PixelBook, Oh also with a Brio 4k web cam all at the same time! on one dock! . Fricken perfect. Now I need a 3 device usb 3.2 switch... instead of a KVM... Gunna Make One? (5th star if I could hook up more computers to the dock at the same time)
Date published: 2020-11-09T00:00:00-05:00
Rated 5 out of
5 by
Dan from
Loved this docking station
I loved this docking station with its 4 HDMI port and multiple USB ports. Ultimately had to replace it with a different unit as there was some incompatibility with my work laptop. Would only hear a slight clicking by the USB port on my laptop (HP Elitebook and this only occurred 1 out of times it was connected. I would eventually get the failed connects to work but never really understood what actually change to work. Once working, never failed.. Worked flawlessly with my personal laptop every time (Lenova Yoga)
Date published: 2021-09-27T00:00:00-04:00
Rated 5 out of
5 by
BIGSHUNN from
Mounting Dock Station
What is the Bolt Size on the bottom for Mounting the Quad 4k?
Date published: 2021-07-16T00:00:00-04:00
Rated 5 out of
5 by
JFS from
Home Office Upgrade!
Could not be happier with this product. It eliminated the screen flickering I was having issues with when using an USB to HDMI adapter, and actually improved my video performance on my business laptop. Very happily driving 3 monitors with this, and would highly recommend to improve overall home office performance.
Date published: 2021-02-02T00:00:00-05:00
Rated 5 out of
5 by
Ivan from
Excellent
I use this to connect 3 monitors + audio + network + keyboard/mouse to both a Dell laptop via USB-C and an older desktop via USB-A. Both work flawlessly, I am really amazed that this is even possible. Hats off to the Targus team for working with DisplayLink to enable this technology.
Date published: 2022-01-18T00:00:00-05:00
Rated 5 out of
5 by
chris24 from
Should be better for $400
Doesn't work with my mac even after enabling screen recording & downloading a driver. Does not recognize the dock at all. Used my laptop for this doc for a while and is really spotty with screens randomly dropping.
Date published: 2023-05-22T00:00:00-04:00
Rated 5 out of
5 by
Finman from
Awesome dock!!
I tried a Plugable quad 4k Thunderbolt dock 1st but it was not hot unpluggable. Powering off every time I disconnected was a PITA super quickly. I move my laptop 2x a day. I stumbled across this, saw it's USB-C instead of Thunderbolt & hesitantly ordered it to see how it handled quad 4k displays.... it's a work place dream come true!! I'm connected to quad 4k displays, using the laptop's display + a USB-C powered external display as a 6th.... 6 displays & I use all daily.
Plug in 2 cables (the dock, the LG USB display) & I'm up & running for work, daily. There are no issues with hot plug/unplugs. I'm able to watch videos full screen if wanted & that also works great. I'm not a gamer so I can't speak for any of that level of performance.
1 minor but not minor missing detail in the description is there's a power button to shut it off. All the other docks I've owned over the years stay on 24x7x365.25 & there is always a power draw for doing nothing (I'm a miser when it comes to wasting $ on electricity, so knowing it's powered off left me with a good feeling)
From what I'm seeing, it's a native 4k display connectivity & not using DisplayLink but I haven't been able to validate that yet. Nothing wrong with DisplayLink because I'm using them in offices (rock stable for getting work done on quad 4ks there too). It's a nice plus to be able to use native displays instead though.
This thing is a 7 star out of 5 star rating for what I need it to do, flawlessly.
Date published: 2023-09-27T00:00:00-04:00
