Tech specs
Brand
Tripp Lite
Product Line
Eaton Tripp Lite Series
Model
Internet Office 120V 550VA 300W Standby UPS, Ultra-Compact Desktop, Battery Backup USB 50/60Hz
Manufacturer
Tripp Lite
Input Connectors
1
Interface Provided
1 x management (USB)
Battery Recharge Time
6.5 Hours
Battery Voltage
12 volt

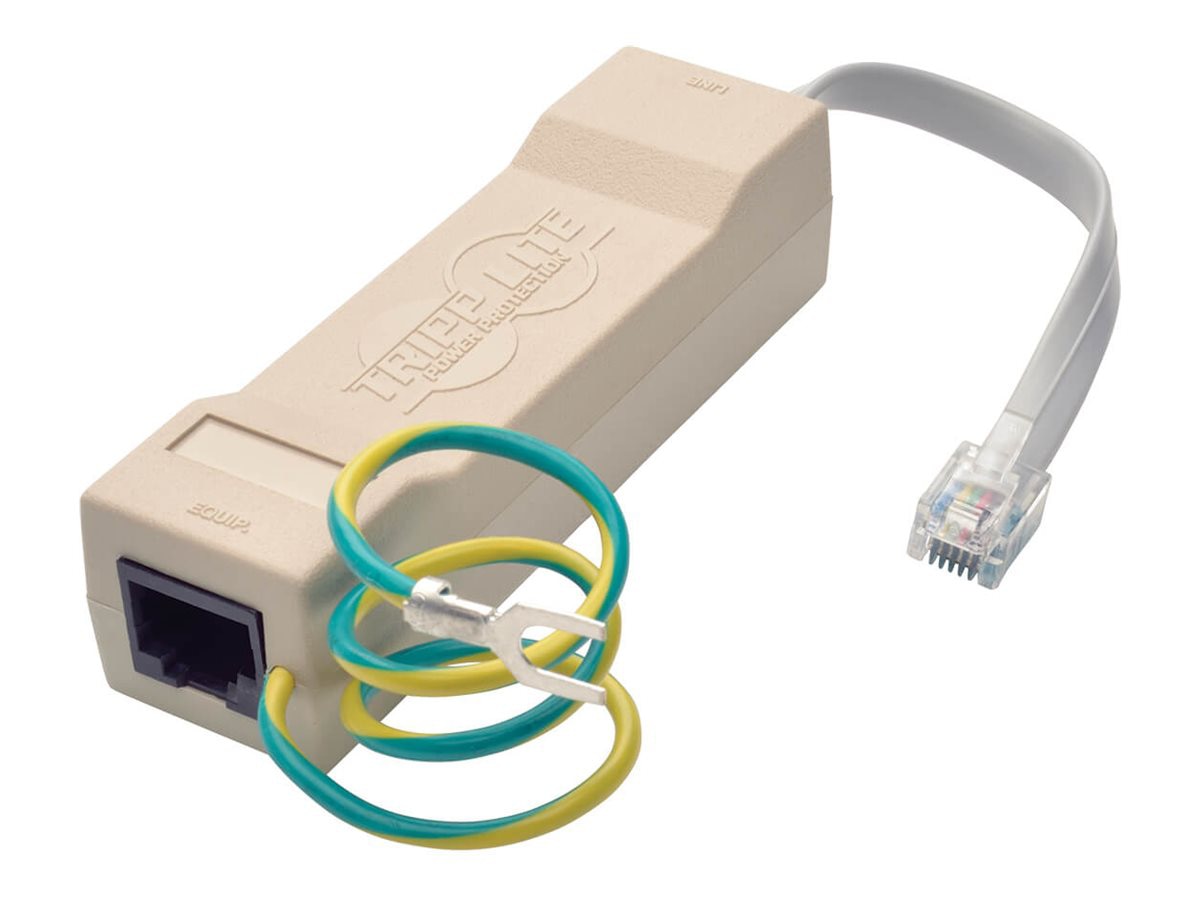

Dataline Surge Protection
Phone line - RJ-11 - 1 input line / 1 output line
Emergency Power Off
Audible alarm, Cold-start function, LED display, LED indicators, Noise filtering, PWM modified sinewave, Right-angle connector
Frequency
50/60 hertz
Frequency Provided
50/60 hertz
Input Connector Type
Power NEMA 5-15P
Input Wiring
1-phase
Load Rating
Individual PC
Load Type
At full load
Max Run Time
1.2 min at full load, 5 min at half load
Output Connector Quantity
10
Power Capacity
550 volt ampere per kilogram
Power Output Connectors Details
5 x power NEMA 5-15R (surge) - 120 V, 5 x power NEMA 5-15R (UPS and surge) - 115 V
Power Provided
300 watt
Provided Voltage
AC 120 volt
Required Voltage
AC 120 volt
Surge Suppression
Yes
UPS Technology
Off-line
Voltage Provided Margin
± 5%
Waveform Type
Sine Wave
Battery Run Time (Up To)
1.2 minute (time unit)
Software Type
TrippLite PowerAlert (free download)
Efficiency
98% AC mode
Form Factor (Power Device)
External
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
0 - 90% (non-condensing)
Country
Canada, Puerto Rico, United States
Features
Mounting holes, Wall Mountable
Packaged Quantity
1
Product Type
UPS
Subcategory
UPS
Cables
Power cable - integrated - 6 ft, USB cable - external
Height
3.1 inch
Weight
5 lbs
Width
5.7 inch
Depth
10.8 inch
Color Category
Black
Compliant Standards
CSA, FCC Part 15 B, NOM, RoHS, UL 1778
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Equipment Protection Value
100000 US Dollars
Service & Support Details
Limited warranty - 3 years
Limited Warranty
3 Year
Surge Energy Rating
316 joules
