Quick tech specs
- Line-interactive UPS offers complete power protection for small network applications including telecom/security and digital signage
- Keeps AC power running during blackouts to allow time for file saves/safe shutdown
- battery backup
- Protects equipment against blackouts/ brownouts/ overvoltages/ surges/line noise
- Maintains continuous 120V nominal output during brownouts/overvoltages
- Tripp Lite is now part of Eaton (3 Year Warranty w/ Reg.)
Know your gear

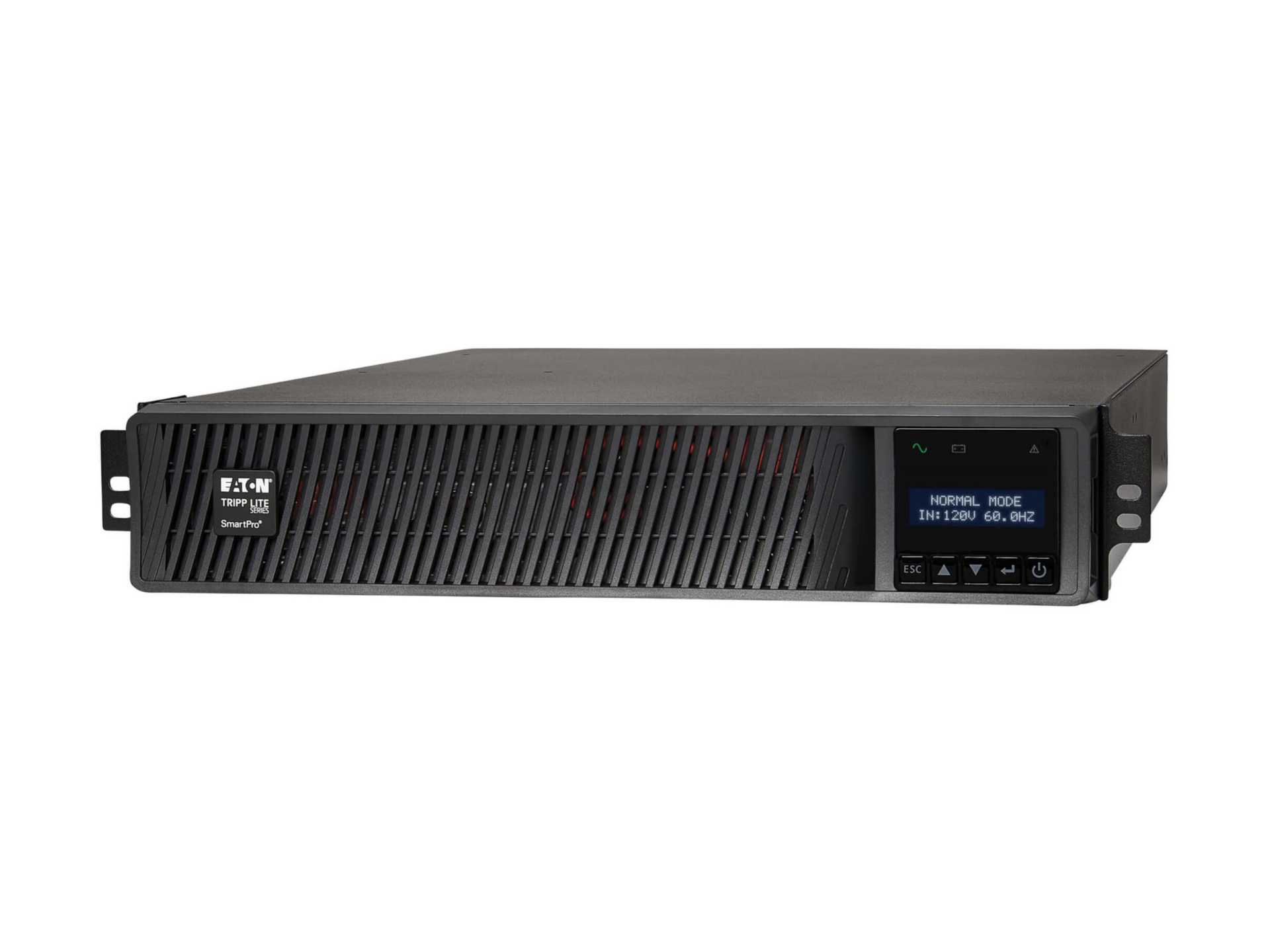

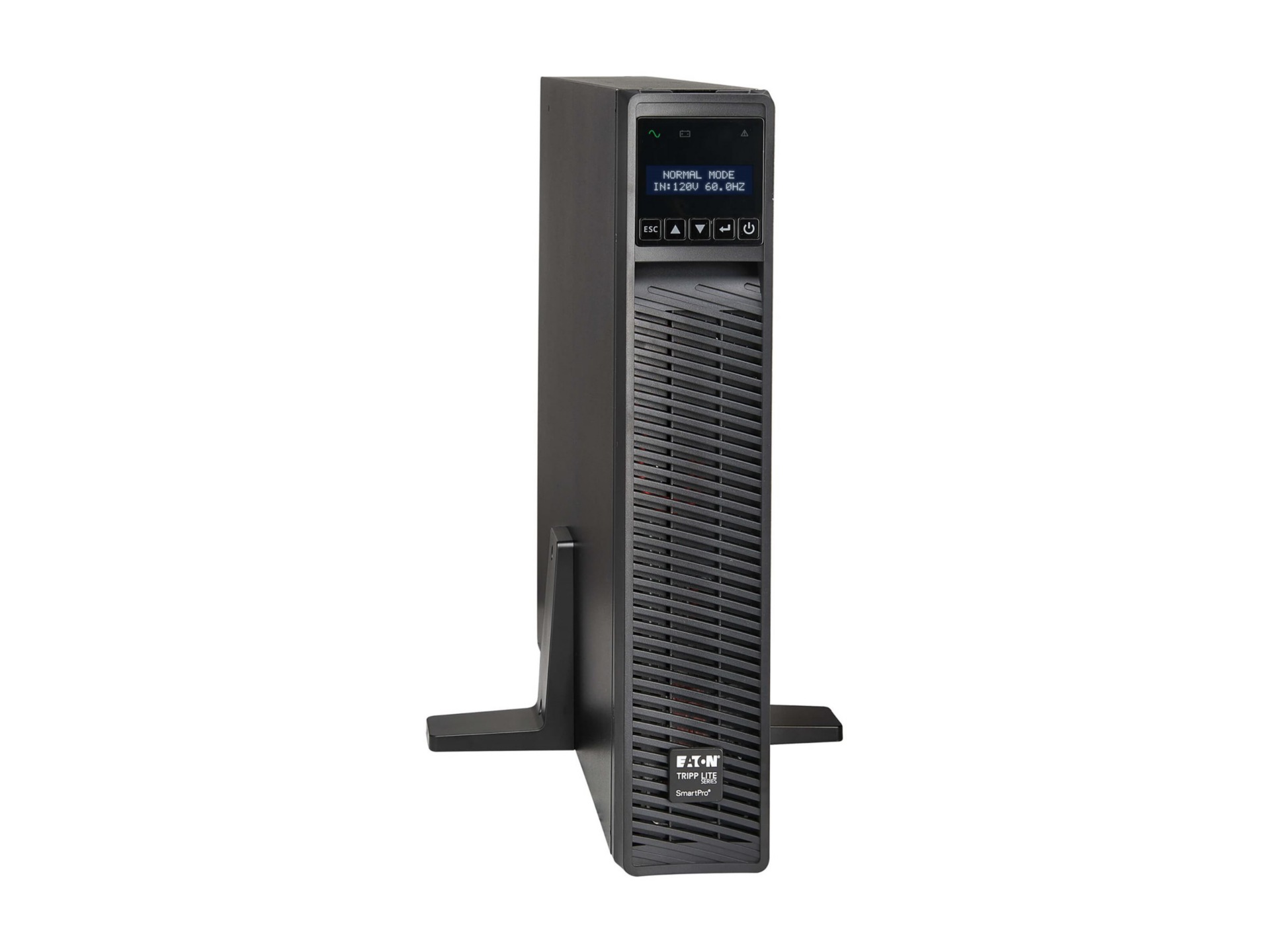

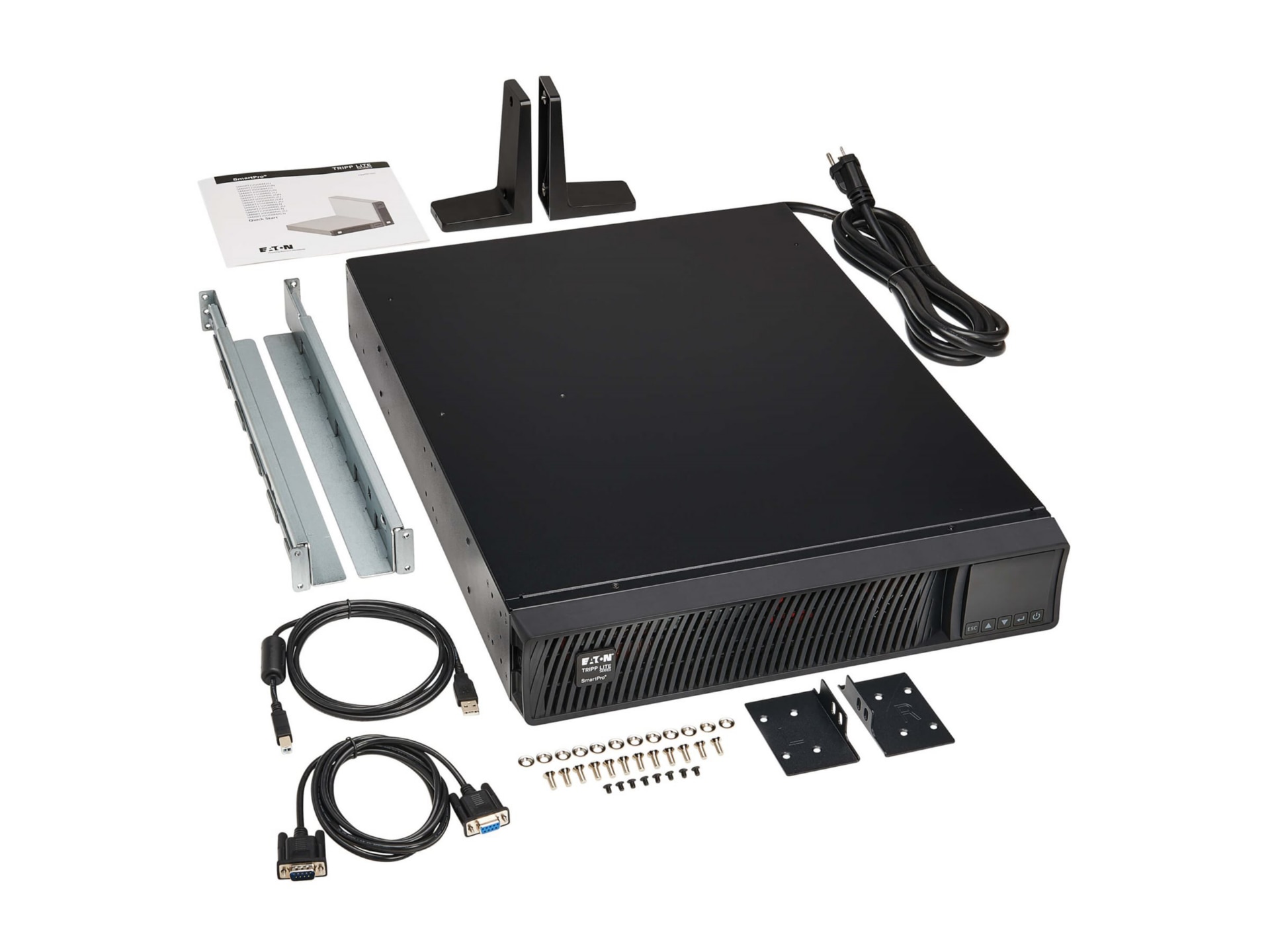

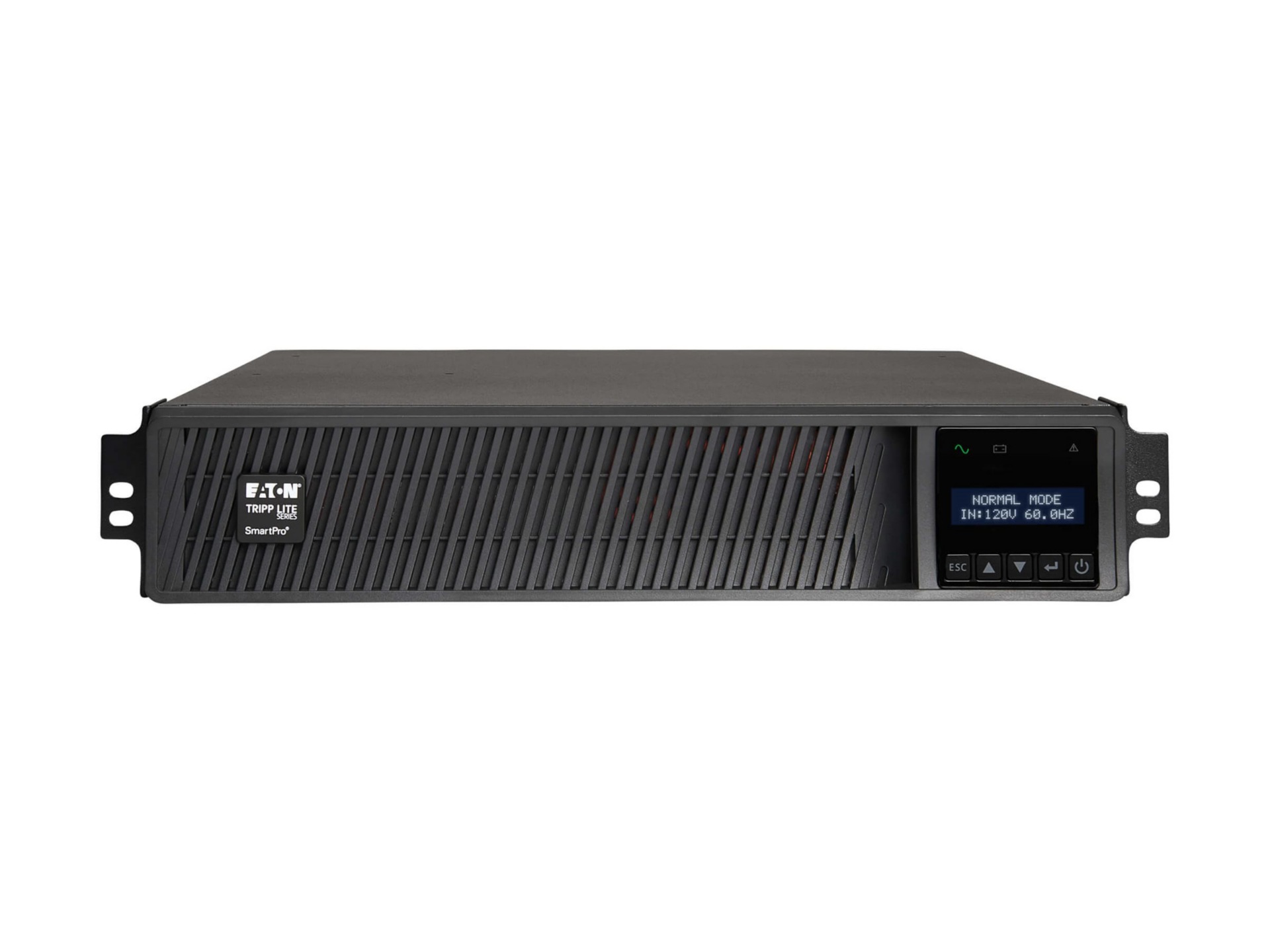

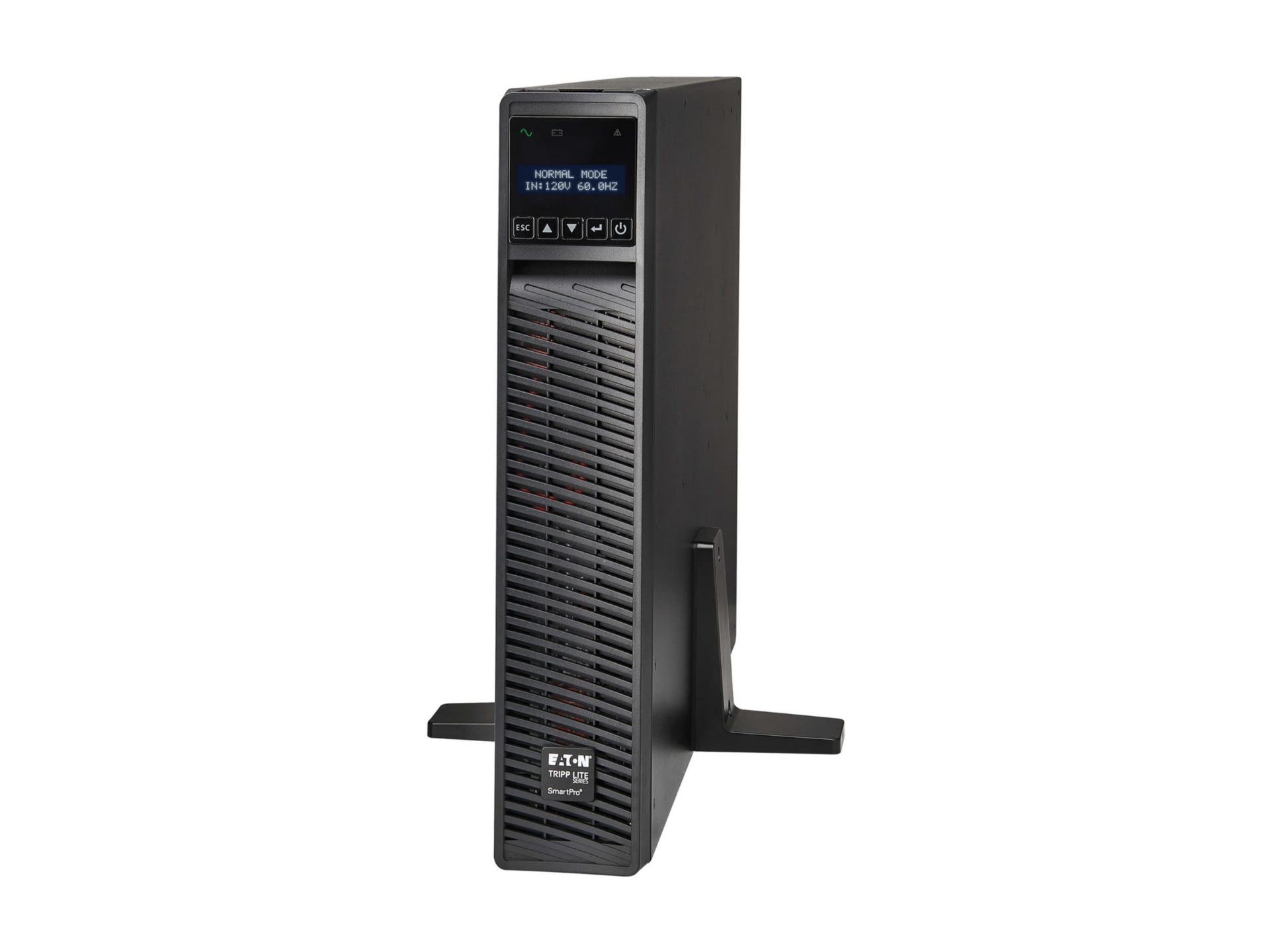

750VA/750W/120V Battery Backup for Distributed IT - Telecom or Enterprise Deployments
The SMART750RMXL2UN provides reliable battery backup and AC power protection for connected devices against blackouts - brownouts - surges and line noise Unity power factor ensures the most watts possible at each power rating - so you can connect more equipment Pure sine wave power and unity power factor - even when on battery - means this SmartPro® UPS can be used with sensitive IT equipment - including servers - VoIP phones - data storage and PoE switches Even if the battery is depleted - the UPS will automatically restart when the power comes back on after an extended outage
Reliable - Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable - hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U - sold separately)
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management - including load shedding - reboots of connected equipment and safe shutdowns The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices - detecting lost connectivity and automatically rebooting IT equipment Optional EnviroSense2 modules (E2MT - E2MTDO and E2MTHDI - all sold separately) provide a variety of environmental monitoring and control options
NEMA 5-15R Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads Front and rear cooling fans help protect equipment from overheating
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features ten selectable screens that allow quick access to a wide range of detailed UPS and site power information LEDs show UPS status: a green light means utility power is on - an orange light means the UPS is in battery mode and a red light indicates an active alarm or fault The control panel rotates to accommodate both rack-mount and tower configurations
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage - data loss and performance problems caused by brownouts The SMART750RMXL2UN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss This EMI/RFI filtering also helps your connected components perform better and last longer
