Tech specs
Brand
Zebra
Product Line
Zebra

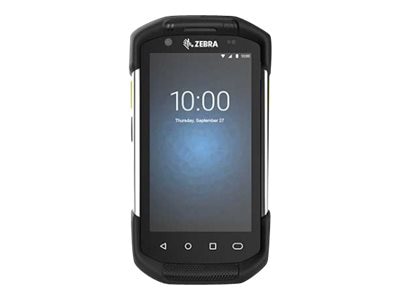

Model
TC77
Manufacturer
Symbol Technologies
Clock Speed
2.2 GHZ
Cores
8-core
Processor Brand
Qualcomm
Processor Type
Snapdragon 660
Flash Memory Cards Supported
microSD, microSDHC, microSDXC
Flash Memory Installed
32 GB
Max Flash Memory Cards Supported
256 GB
Memory Card Slot
microSD slot
RAM Installed
4 GB
Cellular Data Connectivity Technology
AWS, EDGE, FDD LTE, GPRS, GSM, HSPA, HSPA+, TDD LTE, UMTS
Security Protocols & Features
AES, EAP-TLS, EAP-TTLS, LEAP, MS-CHAP, MS-CHAPv2, PAP, PEAPv0, PEAPv1, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
SIM Card Type
Nano SIM
Wireless Connectivity
Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, NFC
Wireless LAN
802.11a/b/g/n/ac, Bluetooth 5.0, NFC
Mobile Activation
Mobile Activation Available - Special Attn
Mobile Broadband Access
4G
Expansion Slots
1 x microSD, 2 x Nano-SIM card
Interface Provided
1 x USB 2.0
Barcode Reader
Yes
Barcode Symbology Supported
Code 39
Features
Capacitive touch screen, Corning Gorilla glass
Multi-touch Screen
Yes
Native Resolution
1280 x 720
Screen Size
4.7 inch
Screen Size (metric)
11.9 centimetre
Touchscreen
No
Display Backlight Technology
LED backlight
Audio Input Type
Three microphones
Output Type
Speaker
Cameras (compact list)
Rear camera + front camera
Rear Camera
Yes
Rear Camera Resolution
13 Megapixel
Second Camera
Yes
Second Functions
IR camera
Second Sensor Resolution
0.3 Megapixel
Sensor Resolution
5 Megapixel
Battery Capacity
4620 mAH
Battery Chemistry
Lithium ion
Battery Name
PowerPrecision+
Operating System Edition
Android 8.1 (Oreo)
Input Device Type
Touchscreen
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
-4 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
Minimum Bar Width
3 milli-inch
Operating Humidity
5 - 95% (non-condensing)
Rugged
Yes
Scan Element Type
2D imager
Scanning Distance
36.3 inch
Sensor Type
3-axis accelerometer, 3-axis gyro sensor, Ambient light sensor, Digital compass
Vibration Alert
Yes
Country
North America
Features
256 QAM Modulation on 5G GHz radio, Interactive Sensor Technology (IST), Low-Density Parity Check (LDPC), MIMO Technology, SE4750 Standard Range Array Imager, SIM lock
GPS
A-GPS/GPS/GLONASS/Galileo/BeiDou receiver
Packaged Quantity
1
PDA Software Type
Google Mobile Services
Platform Supported
Android
Product Type
Data collection terminal
Service Activation
Yes
USB Host
Yes
Height
6.3 inch
Weight
13.26 ounce
Width
3.3 inch
Depth
1.1 inch
Color Category
Black
Compliant Standards
FeliCa, IP65, IP67, ISO 14443 type A, ISO 14443 type B, ISO 15693, MIL-STD 810G
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 1 year
Limited Warranty
1 Year
