Tech specs
Brand
Cisco
Product Line
Cisco
Model

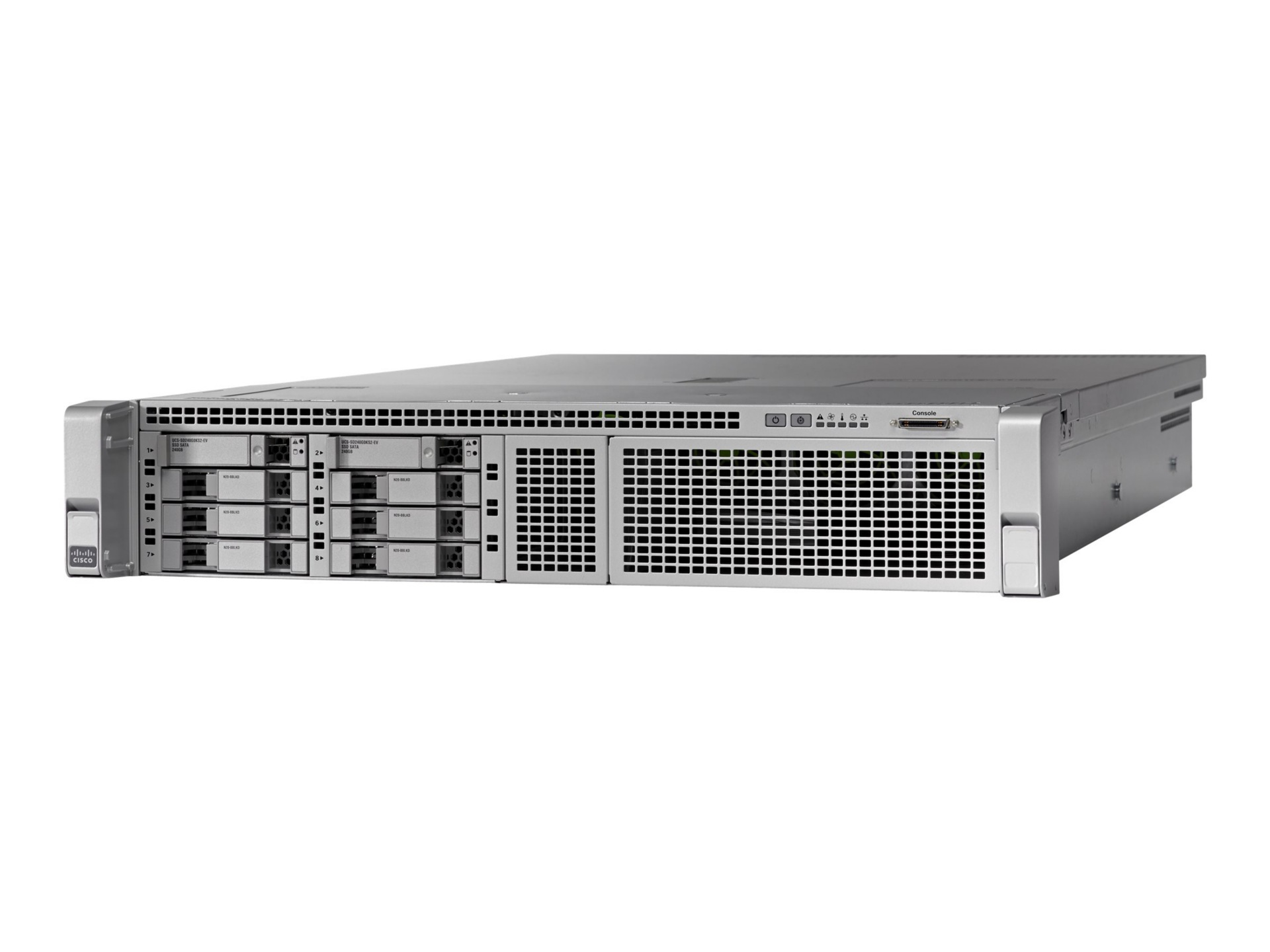

8540 Wireless Controller
Manufacturer
CISCO DS HARDWARE DIRECT
Clock Speed
2.5 GHZ
Processor Brand
Intel
Processor Number
E5-2680V3
Processor Type
Xeon
Processors Installed
1
Memory Technology
SDRAM
RAM Installed
64 GB
Drive Interface
Serial ATA-600
Hard Drive Capacity
240 GB
Port Expansion Hard Drive Type
SSD
Hot-Swap
Hot-swap
Installed Quantity
2
RAID Levels
RAID 0, RAID 1, RAID 5, RAID 6
Compliant Standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet
Features
CAPWAP support, Cisco FlexConnect, Cisco VideoStream technology, CleanAir technology, Deep Packet Inspection (DPI), IPv6 support, Mesh networking, Rogue access point detection, SNTP support, Syslog support, Trusted Platform Module (TPM), VLAN support, Wi-Fi Multimedia (WMM) support
Form Factor
Rack-mountable
Network Standard
ARP, Bonjour, BOOTP, DHCP, ICMP/IP, IPSec, TCP/IP, UDP/IP
Product Type
Network management device
Remote Management
CLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol
CIDR
Expansion Bays
2 (total) / 2 (free) x hot-swap - 2.5"
Interface Provided
1 x serial - RJ-45, 1 x VGA, 2 x USB 3.0 - Type A, 3 x 1000Base-T (management) - RJ-45, 4 x 10Gb Ethernet - SFP+
Hot-Plug
Hot-plug
Power Supplies Installed
2
Power Supplies Supported
2
Redundant Power Supply
Yes
Hard Drive Form Factor
2.5"
Hard Drive Form Factor (metric)
6.4 cm
Encryption
AES, AES-CBC, AES-CCM, AES-CCMP, DES, IKE, MD5, PKI, RC4, RSA, SHA-1, SSL, TKIP, TLS 1.0, TLS 1.1, Triple DES, WEP, WPA, WPA2
Form Factor (RAM)
DIMM 288-pin
Max Operating Temperature
95 degree Fahrenheit
Min Operating Temperature
41 degree Fahrenheit
Operating Humidity
10 - 90% (non-condensing)
Authentication Method
Extensible Authentication Protocol (EAP), RADIUS, TACACS, X.509 certificates
Capacity
Manageable access points: up to 6000, Virtual interfaces (VLANs): 4096, Wireless clients: 64000
Device Type
Internal power supply
Packaged Quantity
1
Network Device
Throughput: 40 Gbps
Included Accessories
32 GB SD card, Rack mount kit
Height
3.4 inch
Height (Rack Units)
2
Weight
43.87 lbs
Width
19 inch
Depth
30.2 inch
Compliant Standards
AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Service & Support Details
Limited warranty - 3 years
Integrated System
3-year warranty
