Tech specs
Brand
EVGA
Product Line
EVGA
Model

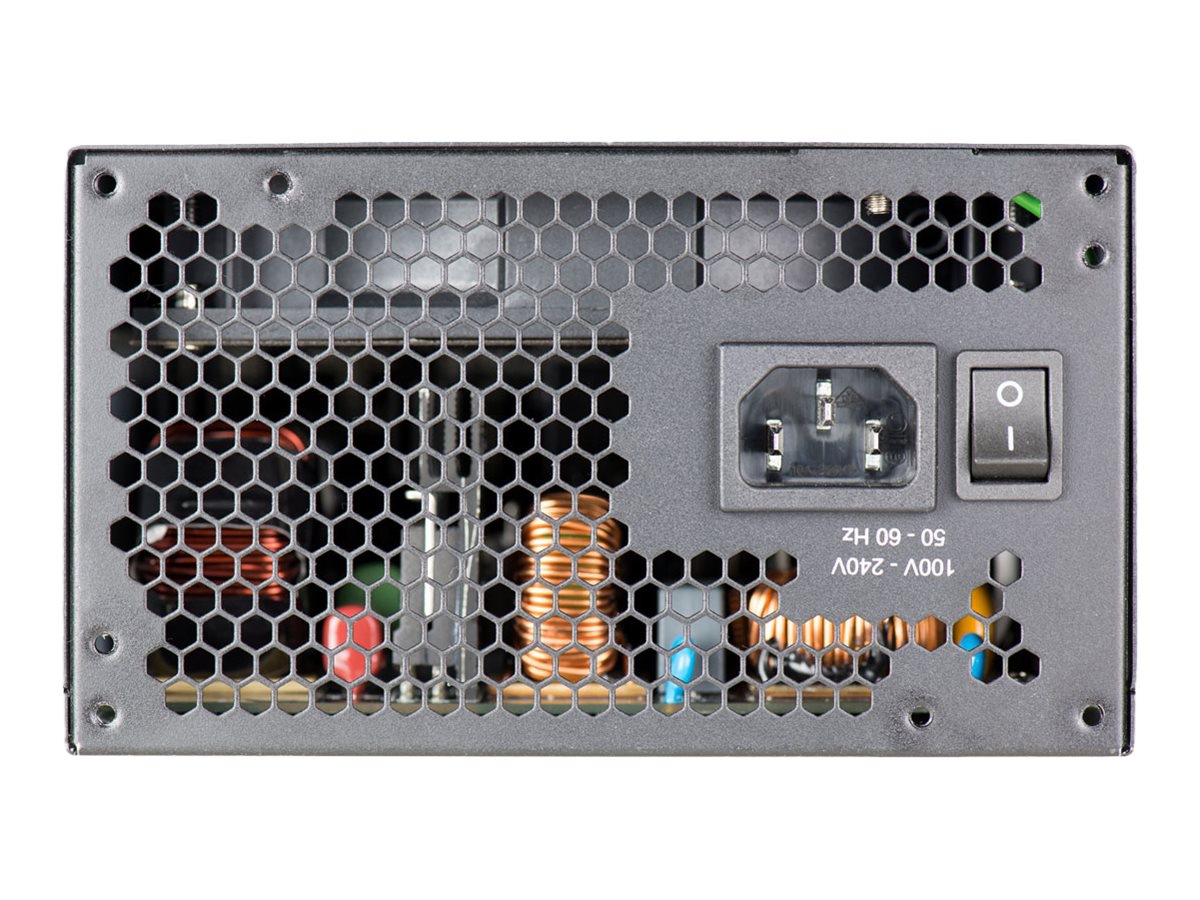

1000 GQ
Manufacturer
EVGA
Cooling System
135 mm fan
Emergency Power Off
Active CLAMP circuitry, CrossFire ready, Eco-Mode, Fluid dynamic bearing cooling fan, Intel 4th-gen CPU (Haswell) compatible, Overcurrent protection, Overheat protection, Overpower protection, Overvoltage protection, Semi-modular, Short-circuit protection, Single 12V rail, SLI ready, Solid capacitors, Undervoltage protection
Frequency
50 - 60 hertz
Output Current
+12V - 83.3 A, +3.3V - 24 A, +5V - 24 A, +5VSB - 3 A, -12V - 0.5 A
Power Factor Correction
Active Power Factor Correction (PFC)
Power Output Connectors Details
1 x power 24 pin ATX, 10 x 8 pin PCI Express power with detachable 2 pin section, 12 x 15 pin Serial ATA power, 2 x 4 pin mini-power connector, 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 3 x 4 pin internal power
Power Provided
1000 watt
Power Supply Compatibility
PC/Server
Provided Voltage
+3.3, +5, ±12 volt
PSU Form Factor
ATX
Required Voltage
AC 100-240 volt
Specification Compliance
ATX12V / EPS12V
80 PLUS Certification
80 PLUS Gold
Efficiency
90% (115VAC) / 92% (220-240VAC)
Form Factor (Power Device)
Internal
Max Operating Temperature
122 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Modular
Yes
MTBF
100,000 hour(s)
Packaged Quantity
1
Product Type
Power supply
Subcategory
Power supplies
Height
3.3 inch
Weight
7.05 lbs
Width
5.9 inch
Depth
7.1 inch
Color Category
Black
Compliant Standards
CB, cTUVus, ErP 2013, FCC, RCM, RoHS, TUV, WEEE
ENERGY STAR Certified
No
Service & Support Details
Limited warranty - parts and labor - 5 years
Limited Warranty
5-year warranty
