Tech specs
Brand
Juniper, Juniper Networks
Product Line
Juniper Networks
Model

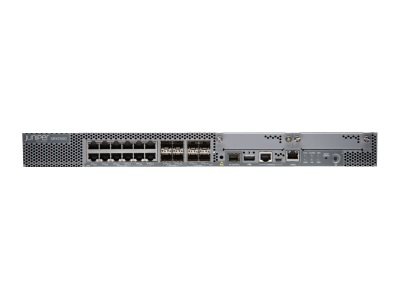

SRX1500 Services Gateway
Manufacturer
Netscreen
RAM Installed
16 GB
Hard Drive Capacity
16 GB
Hard Drive Capacity (2nd)
120 GB
Port Expansion Hard Drive Type
SSD
Storage (2nd)
SSD
Compliant Standards
IEEE 802.1p, IEEE 802.1x
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Anti-spam protection, Anti-virus protection, DDos attack prevention, Dead Peer Detection (DPD), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, Firewall protection, Front to back airflow, Generic Routing Encapsulation (GRE), Inspect SSL Encrypted Traffic, Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, J-Flow, LLDP support, NAT support, PAT support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, URL filtering, VPN support, Weighted Random Early Detection (WRED)
Form Factor
Rack-mountable
Network Standard
DDNS, DHCP, DNS, IPSec, PPPoE
Ports
20
Product Type
Security appliance
Remote Management
CLI, HTTP, SNMP, SSH, Telnet
Routing Protocol
BGP, DVMRP, ECMP, IGMP, IGMPv2, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, Static IP routing, VRRP
Expansion Slots
2 (total) / 2 (free) x expansion slot
Interface Provided
1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x management - SFP (mini-GBIC), 1 x mini-USB, 1 x USB 2.0 - Type A, 12 x 1000Base-T - RJ-45, 4 x 1000Base-X - SFP (mini-GBIC), 4 x 10Gb Ethernet - SFP+
Nominal Voltage
DC -40 -72 V
Power Consumption Operational
150 watt
Power Supplies Installed
1
Power Supplies Supported
2
Redundant Power Supply
Optional
Operating System
JUNOS
Hard Drive Form Factor
mSATA
Hard Drive Form Factor (metric)
mSATA
Encryption
256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
85,787 Hours
Operating Humidity
10 - 90% (non-condensing)
Airflow Direction
Front to back airflow
Authentication Method
Active Directory, Secure Shell (SSH), X.509 certificates
Capacity
Concurrent IPSec sessions: 512000, GRE tunnels: 2000, IPSec VPN tunnels: 2000, IPv4 routing table entries: 2000000, IPv6 routing table entries: 2000000, MAC addresses: 64000, Maximum number of NAT rules: 8000, Security policies: 16000, Security zones: 512, Virtual interfaces (VLANs): 1000, Virtual routers: 512
Device Type
External power adapter
Packaged Quantity
1
VoIP Protocols
SDP
Network Device
Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second, Firewall throughput (1518-byte packet size): 10 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (IMIX): 5 Gbps, VPN throughput (IPSec): 1 Gbps
Height
1.7 inch
Height (Rack Units)
1
Weight
16.09 lbs
Width
17.5 inch
Depth
18.2 inch
Compliant Standards
FCC Class A certified, RoHS2
