Tech specs
Manufacturer
NETGEAR
Brand
NETGEAR
Product Line
NETGEAR ReadyDATA
Model

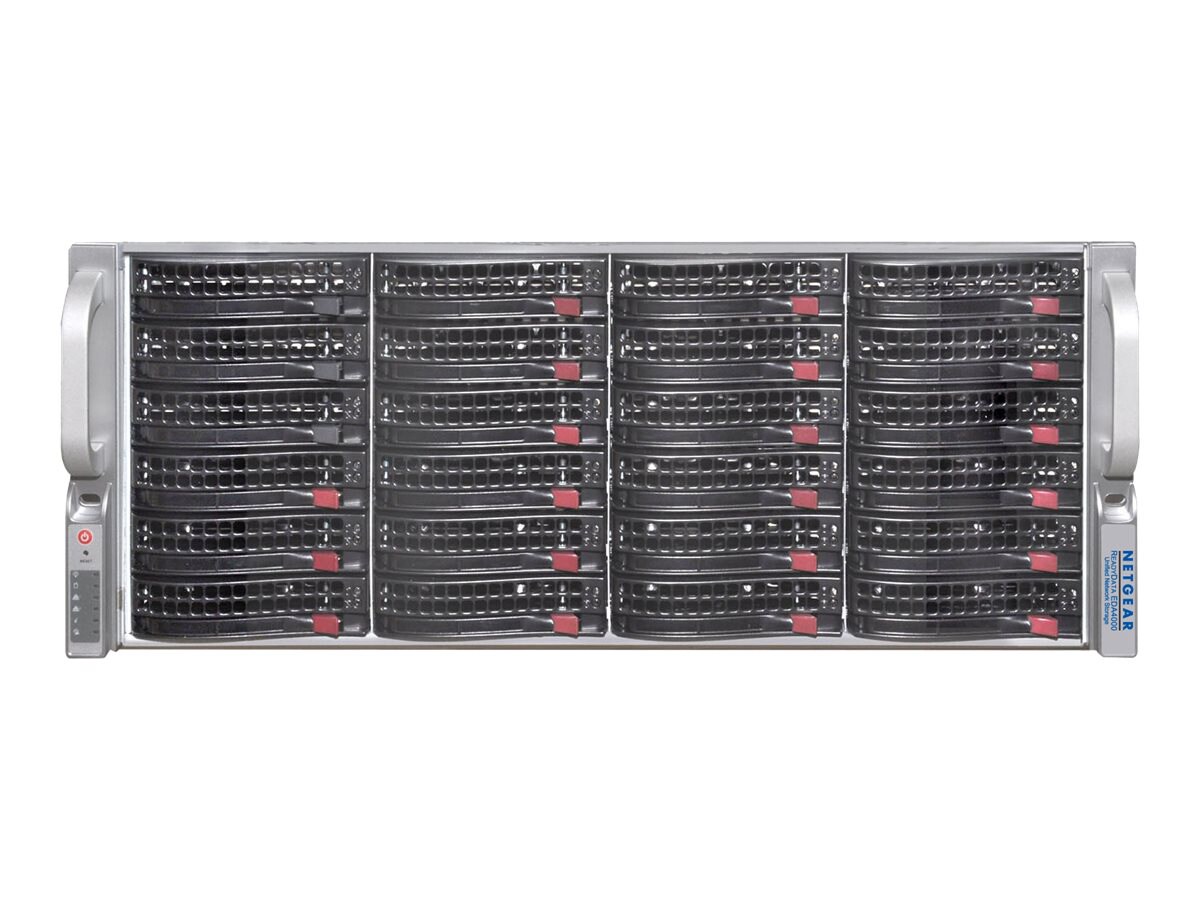

4U Expansion Chassis EDA4000
Packaged Quantity
1
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
24
Supported Interface
Serial ATA-300 / SAS
Type
Hard drive array
Rack-mountable
Rack-mountable
HDD Array External Interface Class
Serial Attached SCSI
HDD Array External Interface
Serial Attached SCSI
Max Supported Capacity
72 TB
Type
RAID
Bus Type
Serial ATA-300 / SAS
RAID Level
RAID 0, RAID 1, RAID 10, RAID 5, RAID 6
Expansion Bays
24 (total) / 24 (free) x hot-swap
Type
Internal power supply
Hot-Plug
Hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Power Provided
700 watt
Nominal Voltage
AC 120/230 V
Frequency Required
50 - 60 hertz
Height (Rack Units)
4
Compliant Standards
CCC, C-Tick, FCC, KCC, RoHS, VCCI
Width
17.2 inch
Depth
26 inch
Height
7 inch
Type
5-year warranty
Service & Support
Limited warranty - 5 years, Limited warranty - advance parts replacement - 3 years - on-site
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
104 degree Fahrenheit
Humidity Range Operating
20 - 80% (non-condensing)
