Tech specs
Brand
Axis
Product Line
AXIS
Model

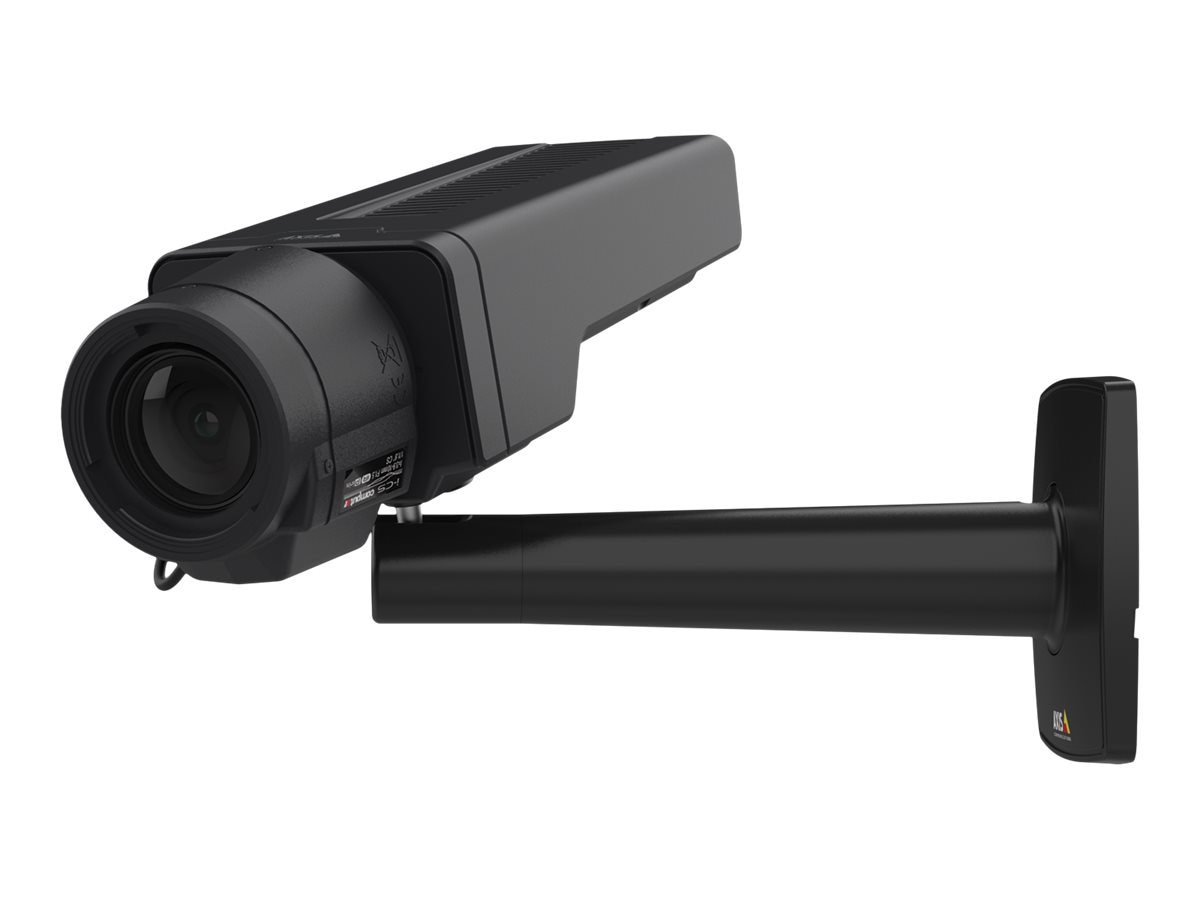

Q1656
Manufacturer
Axis Communications
Flash Memory Installed
8 GB
Memory Cards Supported
SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed
2 GB
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols
ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Connectivity Technology
Wired
Ports
Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45, Serial RS-485/RS-422 - terminal block
Image Sensor Size
1/1.8"
Image Sensor Type
RGB CMOS
Audio Formats
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support
Yes
Audio Support Features
Two-way audio capability
Camera Mechanical Design
Fixed
Control Interface
RS-422, RS-485
Digital Video Capture Resolution
160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512
Max Frame Rate
60 frames per second
Max Video Resolution
2688 x 1512
Motion Detection
Yes
Shutter Speed (Max)
1/47500 second (time unit)
Shutter Speed (Min)
1 second (time unit)
Camera Type
Network surveillance camera
Night Vision
Yes
Low Voltage Power
DC 10 - 28 V / PoE Plus Class 3
Power Consumption Operational
5.1 watt
Software Type
Windows decoder 1-user license
Angular Field of View (H, Max, Degree)
120
Angular Field of View (H, Min, Degree)
47
Angular Field of View (V, Max, Degree)
63
Angular Field of View (V, Min, Degree)
27
Auto Iris Control
P-Iris
Camera Iris
Auto iris
Focal Length Control
Vari-focal
Form Factor
Box
Lens Aperture
F/1.5
Lens Mount
I-CS-mount
Max Focal Length
10 millimetre
Max Operating Temperature
140 degree Fahrenheit
Min Focal Length
3.9 millimetre
Min Focus Distance
19.7 inch
Min Operating Temperature
-4 degree Fahrenheit
Operating Humidity
10 - 85% (non-condensing)
Optical Zoom
2.9
Sensor Size (metric)
14.1 mm (1/1.8")
Total Pixels
4,000,000 pixels
Video Formats
H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
Video Input
Color
Features
180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), Audio Detection, Audio Noise Reduction, Axis Edge Vault, Brightness control, Brute force delay protection, Constant Bit Rate (CBR), Contrast control, Corridor mode, Defog, Digital PTZ function, Distortion correction function, Electronic image stabilization, Exposure control, Exposure zone, Forensic WDR, Heater, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, Lightfinder 2.0 technology, Line Crossing Detection, Multi-streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pelco Protocol, Polygon privacy mask, Remote Back Focus, Remote focus, Saturation control, Secure Boot, Signed firmware, Text overlay, TPM 2.0 module, Variable Bit Rate (VBR), White balance, Zipstream technology
Packaged Quantity
1
Included Accessories
Connector kit, Drill hole template, Resistorx L-key, Stand
Height
2.7 inch
Weight
27.86 ounce
Width
3.1 inch
Depth
8.4 inch
Color
Black
Color Category
Black
Compliant Standards
AS/NZS CISPR 32 Class A, BFR-free, CAN ICES-3(B)/NMB3(B), CISPR 24, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC 62471, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IK08, ISO 21207 method B, KS C 9547, KS C 9815, KS C 9832 Class A, KS C 9835, NEMA TS-2, NEMA250 Type 4X, NIST SP500-267, PVC-free, RCM, VCCI Class A
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
