Tech specs
Brand
Axis
Product Line
AXIS
Model
V5925
Manufacturer
Axis Communications
Flash Memory Installed
512 megabyte
Memory Cards Supported
SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed
1 GB
Network Interface
Ethernet 10Base-T/100Base-TX
Protocols
ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SIP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SSH, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology
Wired
Ports

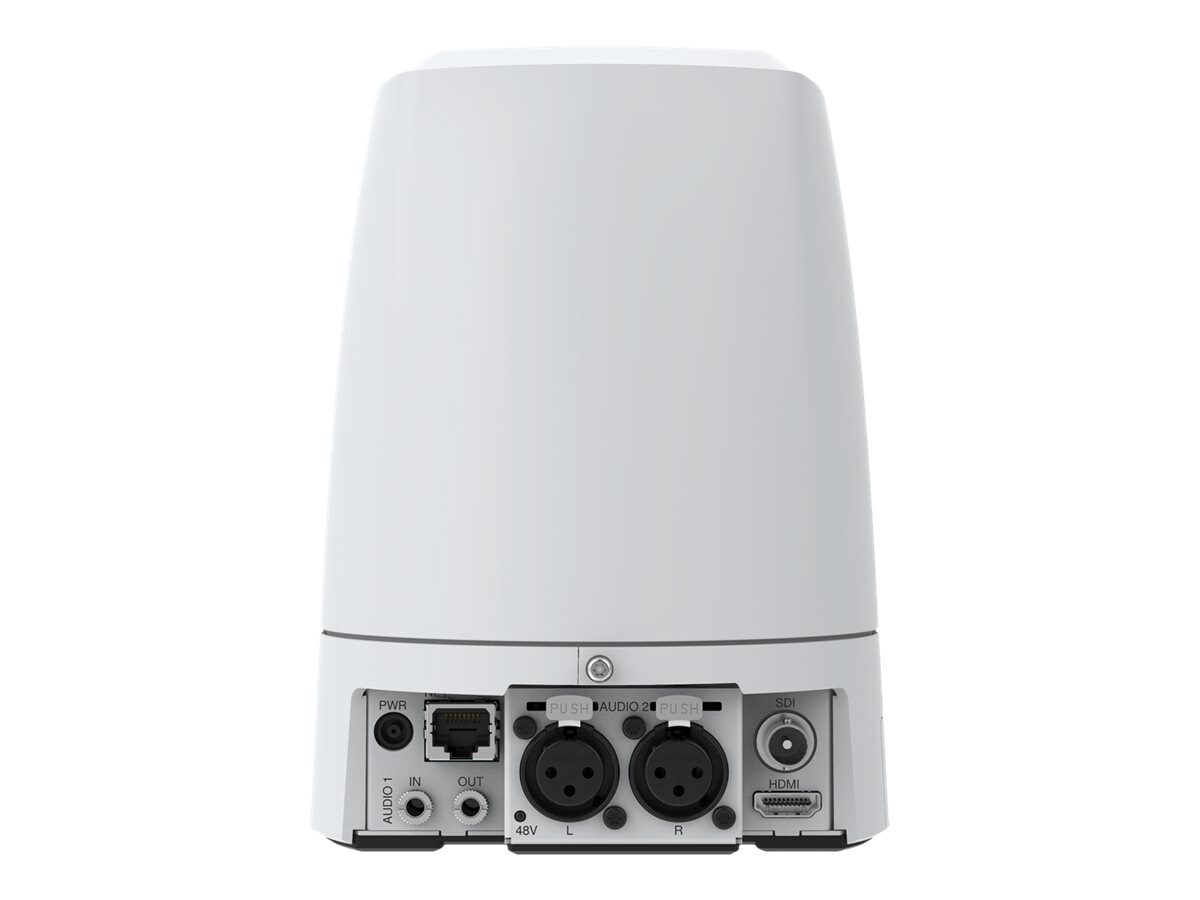

3G-SDI - BNC, Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3 pin XLR x 2, Audio line-in/microphone - 3.5 mm stereo jack, HDMI output, LAN - RJ-45, Serial RS-232 (Visca)
Image Sensor Size
1/2.8"
Image Sensor Type
RGB CMOS
Tilt
-20 to +90
Audio Formats
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support
Yes
Audio Support Features
Two-way audio capability
Camera Mechanical Design
Pan / tilt / zoom
Control Interface
VISCA
Digital Video Capture Resolution
1920 x 1080
Digital Zoom
12
Max Frame Rate
60 frames per second
Max Panning Speed (degree/sec)
100
Max Tilting Speed (degree/sec)
90
Max Video Resolution
1920 x 1080
Motion Detection
Yes
Panning Range (degree)
-170 to +170
Shutter Speed (Max)
1/10000 second (time unit)
Shutter Speed (Min)
1 second (time unit)
Still Image Capture Resolution
160 x 90, 1920 x 1080
Video Modes
1080p
Video Signals
3G-SDI, HDMI
Camera Mount Type
Ceiling mount, Wall mount
Camera Type
Network surveillance camera
Low Voltage Power
DC 11 - 13 V
Power Consumption Operational
14 watt
Power Device Type
Power adapter
Software Type
Camstreamer (3 months trial), Windows decoder 1-user license
Angular Field of View (H, Max, Degree)
62
Angular Field of View (H, Min, Degree)
2.3
Angular Field of View (V, Max, Degree)
37
Angular Field of View (V, Min, Degree)
1.3
Auto Iris Control
P-Iris
Power Device Form Factor
External
Focus Modes
Automatic
Lens Aperture
F/1.4-4.6
Max Focal Length
132 millimetre
Max Operating Temperature
104 degree Fahrenheit
Min Focal Length
4.4 millimetre
Min Operating Temperature
32 degree Fahrenheit
Minimum Illumination
0.03 lux - B&W - F1.4 - 30 IRE, 1 lux - color - F1.4 - 30 IRE
Operating Humidity
10 - 85% (non-condensing)
Optical Zoom
30
Sensor Size (metric)
9.1 mm (1/2.8")
Video Formats
AVC, H.264, H.265, HEVC, MJPEG, MPEG-4
Video Input
Color
Alarm Input Quantity
1
Alarm Output Quantity
1
Country
United States
Features
Adaptive Bitrate (ABR), Audio Detection, Brightness control, Exposure control, Infrared-cut filter, ONVIF (Profile G) support, ONVIF (Profile S) support, Progressive scanning, Saturation control, Sharpness control, Variable Bit Rate (VBR), White balance, Zipstream technology
Packaged Quantity
1
Included Accessories
I/O connector, Mounting kit
Height
7.1 inch
Weight
3.31 lbs
Width
5.4 inch
Depth
5.4 inch
Color
White
Color Category
White
Compliant Standards
AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN/UL 62368-1, IEEE 802.1x, KC, KCC KN32 Class A, KCC KN35, NIST SP500-267, RCM, VCCI Class A
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
