Tech specs
Brand
Barracuda
Product Line

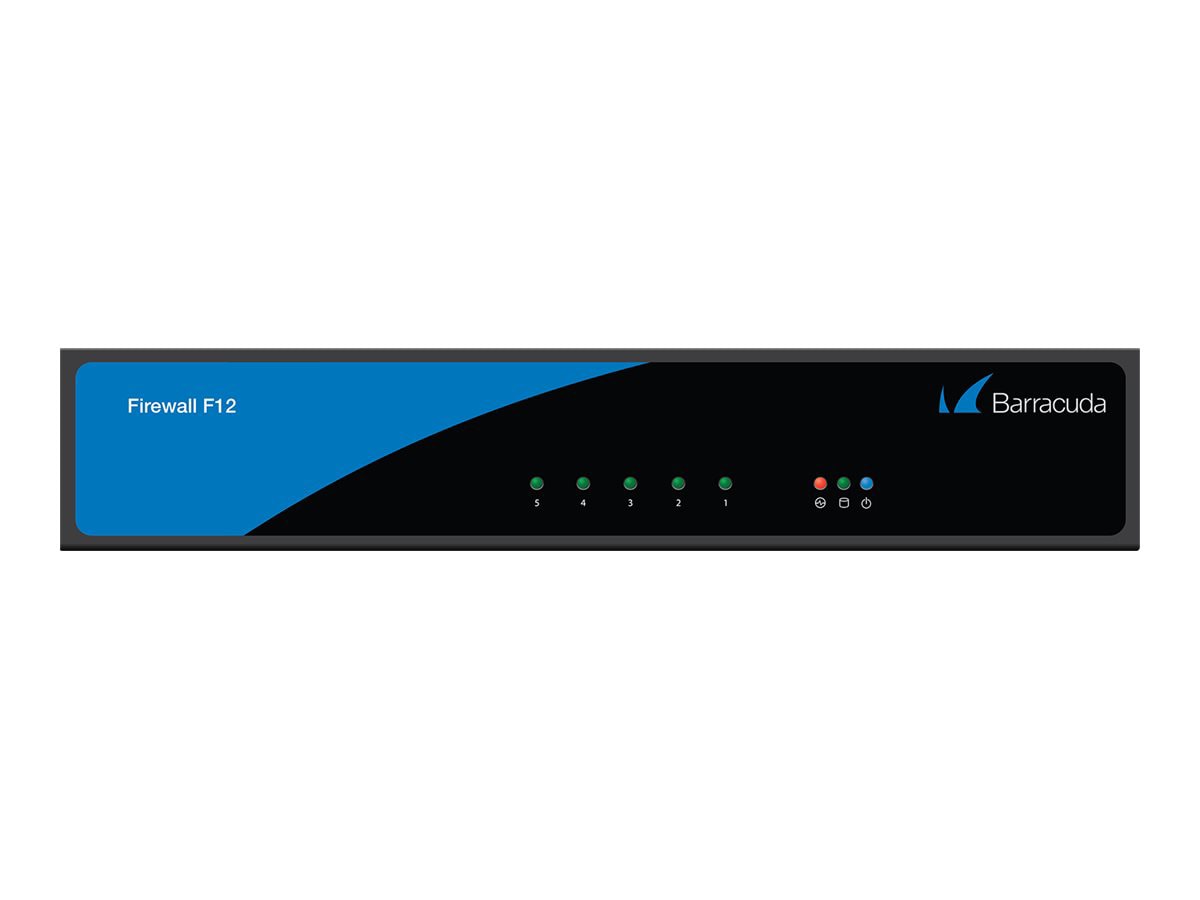

Barracuda CloudGen Firewall F-Series
Model
F12
Manufacturer
Barracuda
Processor Brand
Intel
RAM Installed
2 GB
Hard Drive Capacity
80 GB
Port Expansion Hard Drive Type
SSD
Installed Quantity
1
Compliant Standards
IEEE 802.1Q, X.509
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Anti-spyware protection, Anti-virus protection, Application filtering, ARP support, Bandwidth control, Black list, Bridge mode, Built-in hardware crypto accelerator, DDos attack prevention, Deep Packet Inspection (DPI), DHCP client, DHCP relay, DHCP server, DNS caching, DoS attack prevention, E-mail notification, E-mail protection, Event notification, Fanless, Firewall protection, Flooding detection, FTP proxy, High Availability, HTTP proxy, Identity Awareness, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Jumbo Frames support (up to 9000 bytes), Load balancing, Manageable, NAT support, PAT support, Quality of Service (QoS), Reset button, Routing, SMS remote control, SNMP trap, SSH support, Stateful Packet Inspection (SPI), Syslog support, Traffic replication, Traffic shaping, Transparent Proxy, URL filtering, Virtual Routing and Forwarding (VRF), VLAN support, VoIP support, VPN support, Web Filtering, Web threat protection, White list
Form Factor
External
Network Standard
ARP, DDNS, DHCP, DNS, FTP, IPSec, L2TP, POP3, PPPoA, PPPoE, PPTP, SMB, SMTP, SMTPS, TCP/IP, UDP/IP
Ports
5
Product Type
Firewall
Remote Management
CLI, SMTP, SMTPS, SNMP, SSH
Routing Protocol
BGP, OSPF, RIP
Status Indicators
HDD activity, Link/activity, Power, Status
Interface Provided
1 x console - RJ-45, 4 x USB 3.0 - Type A, 5 x 1000Base-T - RJ-45
Frequency
50/60 hertz
Power Consumption Operational
45 watt
Built-in Devices
LED panel
Encryption
128-bit AES, 256-bit AES, Blowfish, CAST, DES, PKI, SSL, TLS, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
5 Year
Operating Humidity
5 - 95% (non-condensing)
Operating System Required
Apple MacOS X 10.5 - 10.11, Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10
Authentication Method
Active Directory, LDAP, NTLM, RADIUS, SecurID, TACACS+, X.509 certificates
Capacity
Concurrent sessions: 80000, Maximum number of users: 5 - 75, New sessions per second: 8000
Country
North America
Device Type
External power adapter
Packaged Quantity
1
Service Activation
No
VoIP
Yes
VoIP Protocols
H.323, SCCP, SIP
Network Device
Firewall throughput (UDP): 1.2 Gbps, IPS throughput (UDP): 400 Mbps, NGFW throughput: 250 Mbps, Threat protection throughput: 230 Mbps, VPN throughput (128-bit AES, TINA): 220 Mbps, VPN throughput (256-bit AES, GCM): 170 Mbps, VPN throughput (256-bit AES, MD5): 200 Mbps, VPN throughput (256-bit AES, SHA-256): 170 Mbps, VPN throughput (256-bit AES, TINA): 200 Mbps
Cables
1 x network cable, 1 x serial cable
Included Accessories
USB flash drive
Height
1.7 inch
Height (Rack Units)
1
Weight
4.41 lbs
Width
9.1 inch
Depth
6 inch
Color Category
Black, Blue
Compliant Standards
FCC, RoHS
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
