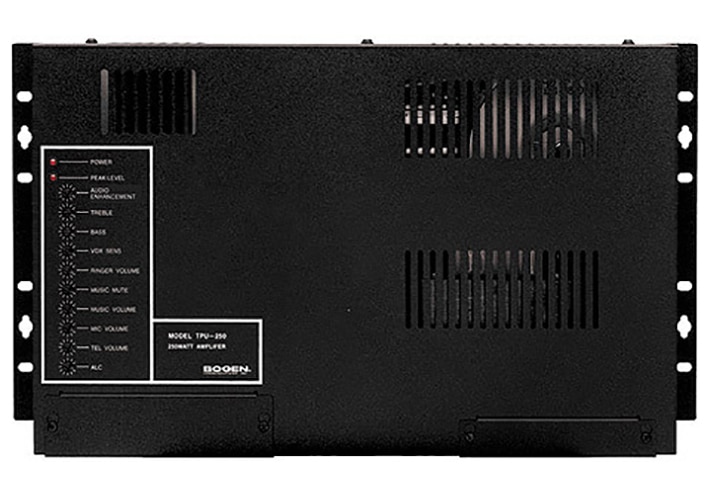

Bogen TPU250 - amplifier

The TPU250 can also be rack-mounted.This amplifier permits paging from telephone and/or microphone.Music input through an RCA jack or screw terminals.Voice-activated, variable level, music mute with fade back after page. This amp includes a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls

during non-business hours. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and outputs.



Features:



35, 60, 100, and 250-watt models

• Inputs for 600-ohm balanced telephone line, LO-Z balanced

microphone, and background music

• Music input (RCA jack or screw terminals)

• Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques

• Page from telephone and/or microphone

• Signal-activated paging channel automatically mutes background music

• Adjustable background music muting level during a page

• Music gradually returns to its normal level after a page

• Aphex® Aural Exciter increases intelligibility, improves

perceived loudness (with no increase in power), and reduces

listener fatigue

• Separate controls for page volume, music volume, night ringer, music mute, and Aphex® Aural Exciter

• Bass and treble controls

• Built-in night ringer activated by contact closure or by 90V ring signal

• Balanced or unbalanced 16-ohm, 25V, 25VCT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250

• VOX sensitivity level control eliminates transmission of background noise when paging from a telephone

• Thermal and electronic overload protection

• Jacks provided for bridging additional TPU amplifiers

• Brackets are attached for easy wall mounting;TPU250 can be rack-mounted

• TPU-B models can be rack-mounted with RPK82 kit

• Peak level indicator lights when amplifier is driven into clipping

• 120V AC, 60Hz power source

• UL and CSA listed
