Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model
9606R
Manufacturer
CISCO DS HARDWARE DIRECT
Features
Fan tray
Form Factor (Hubs & Switches)
Rack-mountable
Product Type
Switch
Subcategory
Network hubs and switches
Expansion Slots
2 (total) / 2 (free) x supervisor slot, 4 (total) / 4 (free) x line-card slot
Hot-Plug
Hot-plug
Power Supplies Supported
4
Redundant Power Supply
Optional
Redundant Power Supply Supported
N+1 (with optional power supply)
Humidity Range Storage
10 - 95% (non-condensing)
Max Operating Temperature
113 degree Fahrenheit
Max Storage Temperature
167 degree Fahrenheit
Min Operating Temperature
23 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
4,113,900 Hours
Operating Humidity
10 - 95% (non-condensing)
Supported Devices
6
Airflow Direction
Side to side airflow
Device Type
Internal power supply (not installed)
Installed Devices/Modules
0
Packaged Quantity
1
Performance
Bandwidth per slot: 6.4 Tbps, Switching capacity: up to 25.6 Tbps
Height
13.9 inch
Height (Rack Units)
8
Weight
69.03 lbs
Width
17.4 inch
Depth
16.1 inch
Color Category
Gray
Compliant Standards
AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 300 386 V1.6.1, EN 50121-4, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32 Class A, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, V-3 Class A
Service & Support Details
Limited warranty - replacement - lifetime - response time: next business day
Limited Warranty
Limited Lifetime
Compatibility Specs

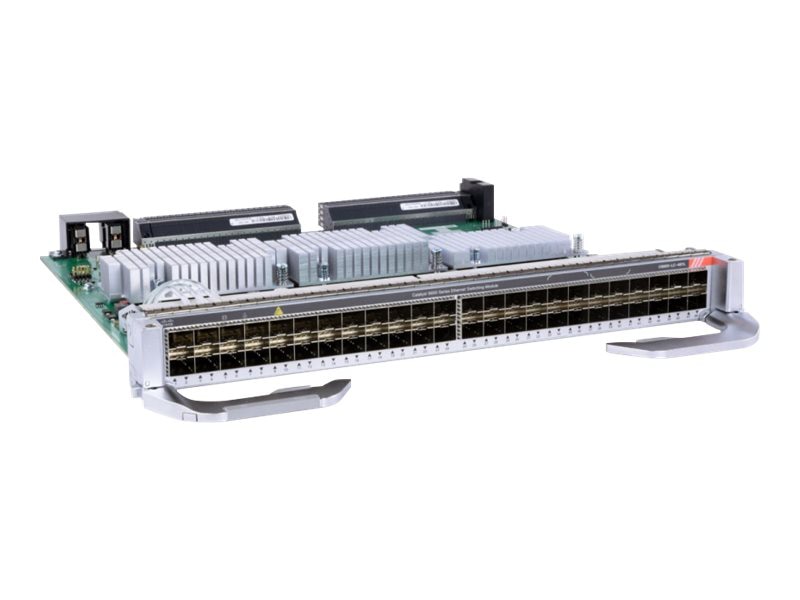

P/N: C9600X-LC-32CD
