Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model

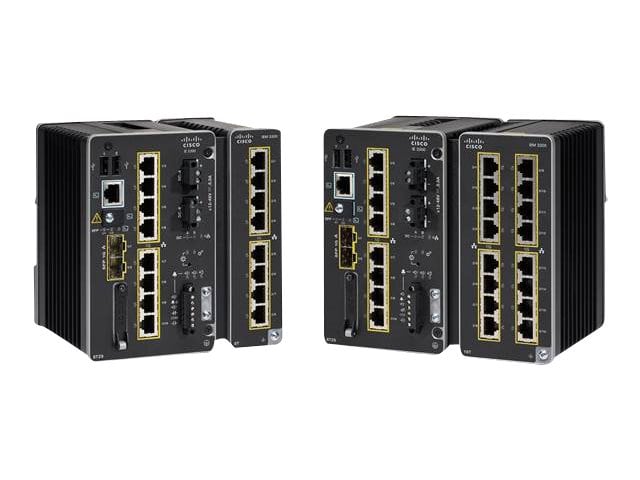

IE3400 Rugged Series
Edition
Network Essentials
Manufacturer
Cisco Systems
Flash Memory Installed
1.5 GB
RAM Installed
4 GB
Compliant Standards
IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features
802.1x authentication, Access Control List (ACL) support, ARP support, BOOTP support, BPDU Guard, Broadcast Storm Control, CIP Sync (IEEE 1588), DHCP relay, DHCP server, DHCP snooping, DHCP support, DiffServ support, Dying Gasp, Dynamic ARP Inspection (DAI), Fanless, Guest VLAN, IGMP filtering, IGMP querier, IGMP snooping, Internet Control Message Protocol (ICMP), IP source guard, IPv4 support, IPv6 support, LACP support, LLDP support, Management Information Base (MIB), Multicast Storm Control, Per-VLAN Spanning Tree Plus (PVST+), Port Security, Precision Time Protocol (PTP), Quality of Service (QoS), RADIUS support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, Spanning Tree Protocol (STP) support, Syslog support, Unicast Storm Control, Uni-Directional Link Detection (UDLD), User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3, Voice VLAN
Form Factor (Hubs & Switches)
DIN rail mountable
MAC Address Table Size
8K entries
Manageable
Yes
Ports
10
Product Type
Switch
Remote Management
HTTP, NTP, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Routing Protocol
IGMP, IGMPv2, IGMPv3, MSTP, RSTP, STP
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Interface Provided
1 x alarm, 1 x mini-USB Type B, 1 x serial (RS-232) RJ-45, 2 x 1000Base-X SFP, 2 x alarm, 8 x 10/100/1000 Base-T RJ-45
Port Quantity
8
Port Type
10/100/1000
Ports Type (2nd)
Gigabit SFP
Electric Current Required
5.4 A
Power Consumption Operational
39 watt
Redundant Power Supply
Yes
Built-in Devices
SD card reader
Humidity Range Storage
5 - 95% (non-condensing)
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
-40 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
549,808 Hours
Operating Humidity
5 - 95% (non-condensing)
Authentication Method
RADIUS, Secure Shell (SSH), TACACS+
Capacity
ACL: 1500, IGMP groups: 1000, Queues: 8, STP instances: 128, VLAN IDs: 256
Device Type
Internal power supply
Packaged Quantity
1
Ports (2nd) Quantity
2
Height
6 inch
Weight
3.75 lbs
Width
3.6 inch
Depth
5.3 inch
Color Category
Black
Compliant Standards
AS/NZS CISPR 32 Class A, CB 60950-1, CISPR 11 class A, CISPR 35, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55032/CISPR 32 Class A, EN 60068-2-52, EN 60068-2-60, EN 60079-0, EN 60079-15, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61850-3, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-78, IEC 60079-0, IEC 60079-15, IEC 60950-1, IEC 61850-3, IEC 62368-1, IEC/EN 61010-2-201, IEEE 1588, IEEE 1613, KN32 Class A, KN35, UL 121201, UL/CSA 60079-0, UL/CSA 60079-15, UL/CSA 61010-2-201, UL/CSA/EN 62368-1, UL/CSA60950-1, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - advance parts replacement - 5 years - response time: 10 days, Technical support - 90 days
Limited Warranty
5 Year
