Tech specs
Brand
Code
Product Line
Code
Model

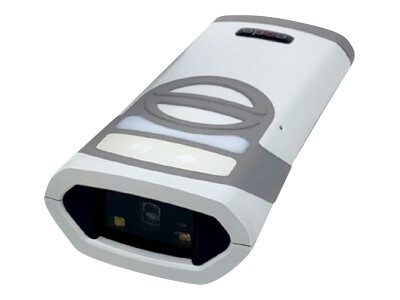

Reader CR2700
Manufacturer
Code Corporation
Connectivity Technology
Wireless
Barcode Symbology Supported
Australian Post, Aztec code, BC 412, Canadian Post, CC-A, CC-B, CC-C, Codabar, Codablock F, Code 11, Code 128, Code 39, Code 49, Code 93, Data Matrix, Data Matrix Rectangular Extension, EAN/JAN, Grid Matrix Code, GS1 DataBar, GS1 DataBar Composites, Han Xin, Hong Kong 2 of 5, IATA 2 of 5, Intelligent Mail Barcode, Interleaved 2 of 5, Japanese Post, Kix (Netherlands) Post, Korea Post, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI-Plessey, NEC 2 of 5, PDF417, Pharmacode, PLANET, Plessey, Postnet, QR code, QR Model 1, Royal Mail, Straight 2 of 5, Telepen, Trioptic Code, UPC, UPU ID-tags
Sensor Resolution
1280 x 960
Touchscreen
No
Batteries Installed
1
Power Device Type
Power adapter
Drop Specification
6 ft to concrete
Form Factor
Companion
Image Sensor Type
2D imager
Interface
Bluetooth 5.0
Max Operating Temperature
131 degree Fahrenheit
Min Operating Temperature
-4 degree Fahrenheit
Minimum Bar Width
3 milli-inch
Operating Humidity
5 - 95% (non-condensing)
Print Contrast Signal (PCS)
15%
Scanning Distance
13.1 inch
Skew (Degrees)
60
Country
United States
Scanner Functionality
Barcode scanner
Features
15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), CodeShield Level 2 disinfectant ready housing
Kit
Kit
Max Coverage Angle
65
Packaged Quantity
1
TTL Decoding
Decoded
Cables
1 x USB cable - 3 ft
Included Accessories
Bluetooth adapter, Desktop base, Inductive charging station
Height
1.1 inch
Weight
4.62 ounce
Width
2.1 inch
Depth
5.2 inch
Color
Light gray
Color Category
Gray
Compliant Standards
IP65
Service & Support Details
Limited warranty - 3 years
Limited Warranty
3-year warranty
