Tech specs

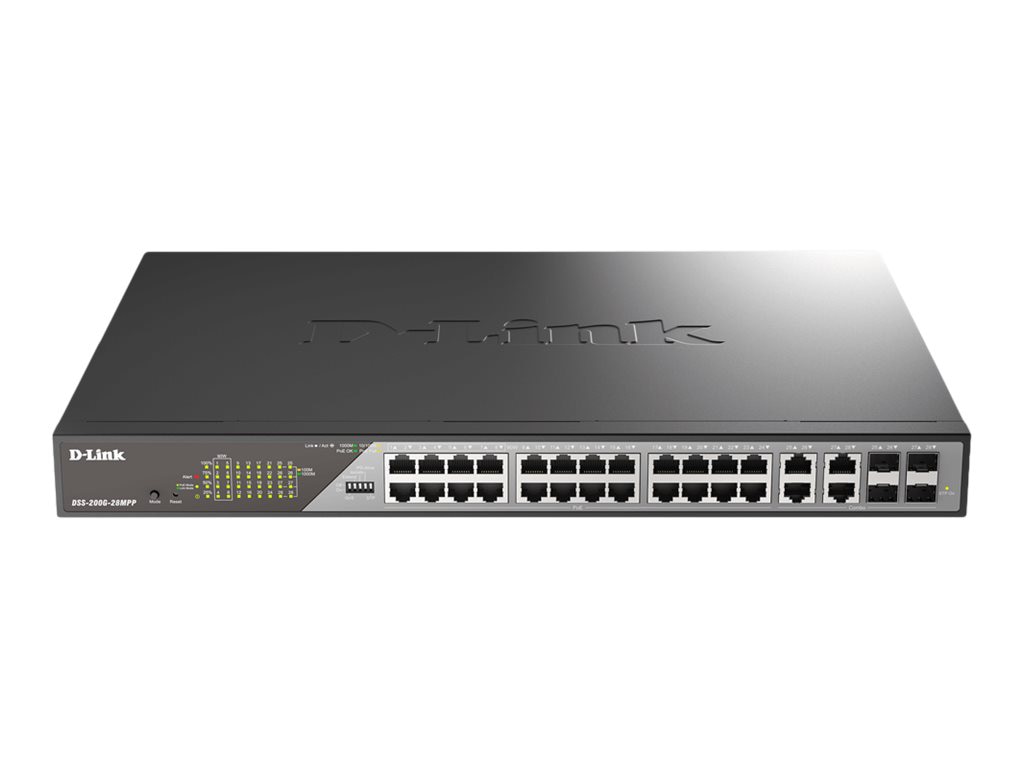

Brand
D-Link
Product Line
D-Link DSS
Model
200G-28MPP
Manufacturer
D-Link
Flash Memory Installed
32 megabyte
Memory Technology
DDR3 SDRAM
RAM Installed
128 megabyte
Compliant Standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, ITU-T G.8032
Features
2 fans, 6KV Surge protection, ARP support, Asymmetric VLAN, Auto Surveillance VLAN, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Built-in DIP switch, Cable Diagnostics Function, DHCP client, DoS attack prevention, Energy-Efficient Ethernet (EEE), Ethernet Ring Protection Switching (ERPS), Flow control, Full duplex mode, Green Technology, Half duplex mode, Head-of-line (HOL) Blocking Prevention, IGMP snooping, Isolate mode, LLDP support, Loopback detection, MLD snooping, Multicast Storm Control, ONVIF support, PD-Alive, Port mirroring, Port-based VLAN, Quality of Service (QoS), Reset button, Tagged VLAN, TCP support, UDP support, Unknown Storm Control, VLAN management, VLAN support, Voice VLAN, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
10240 bytes
MAC Address Table Size
8000 entries
Manageable
Yes
PoE Budget
518 watt
Ports
24
Power Over Ethernet (PoE)
PoE
Product Type
Switch
Remote Management
ICMP, MIB, SNMP, SNMP 2
Routing Protocol
IGMP, IGMPv2, RSTP, STP
Status Indicators
Alarm, Link/activity/speed, PoE, Power
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Interface Provided
1 x alarm input RJ-45, 24 x 10/100/1000 Base-T RJ-45 PoE - 90 W, 4 x 1000Base-T SFP
Port Quantity
24
Port Type
10/100/1000 (PoE)
Ports Type (2nd)
Combo SFP
Frequency
50 - 60 hertz
Required Voltage
AC 100-240 volt
Encryption
SSL
Humidity Range Storage
0 - 95% (non-condensing)
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
23 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
289,075 Hours
Operating Humidity
0 - 95% (non-condensing)
Capacity
Packet buffer size: 4.1 Mbit, QoS priority queues per port: 4, Virtual interfaces (VLANs): 4094, VLAN groups: 128
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding bandwidth: 41.67 Mbps, Switching bandwidth: 56 Gbps
Ports (2nd) Quantity
4
Rack Mounting Kit
Included
Service Activation
No
Included Accessories
Rack mounting brackets
Height
1.7 inch
Height (Rack Units)
1
Weight
10.38 lbs
Width
17.3 inch
Depth
13 inch
Color Category
Black
Compliant Standards
BSMI, CB, cUL, FCC, IC, LVD, UL
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Standby Power Consumption
15.19 watt
