Tech specs
Brand
EVGA
Product Line
EVGA
Model

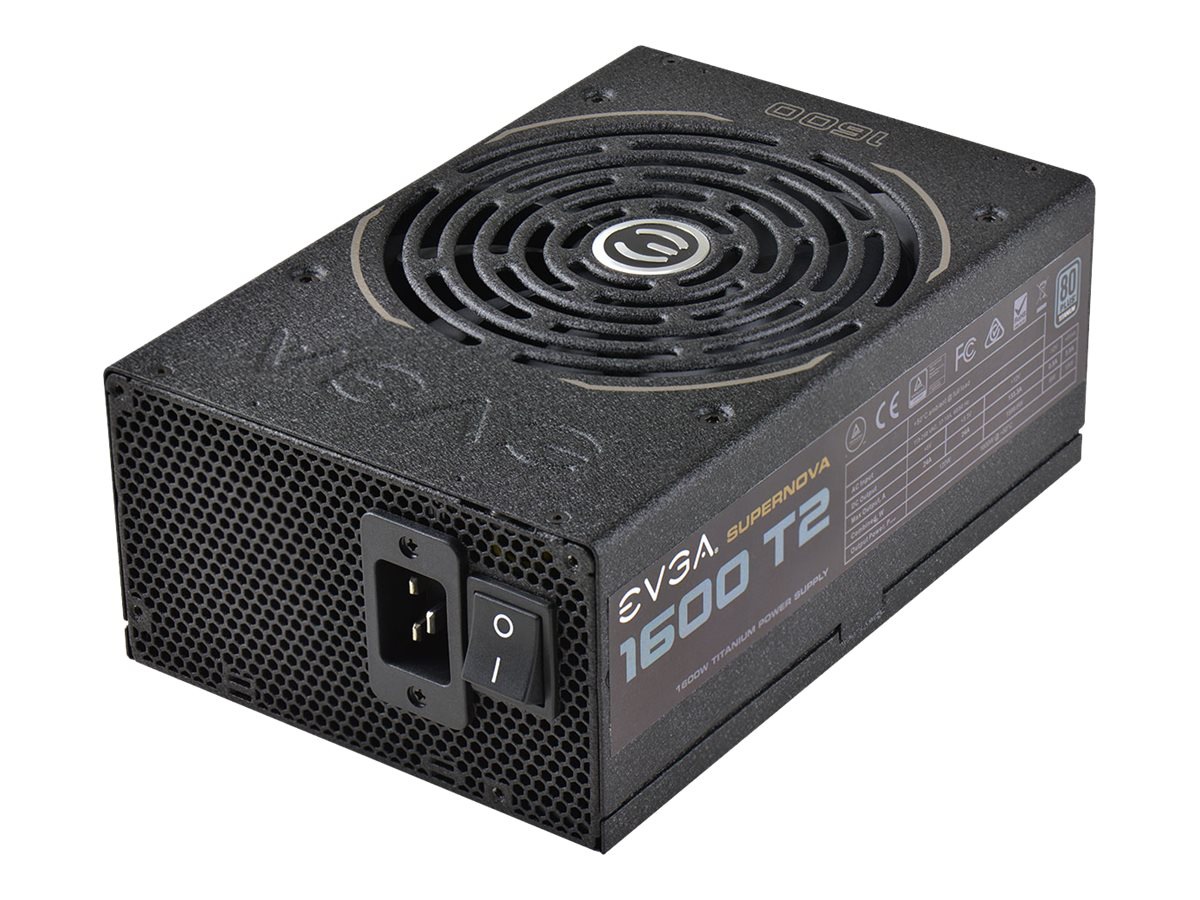

SuperNOVA 1600 T2
Manufacturer
EVGA
Cooling System
140 mm fan
Emergency Power Off
CrossFire ready, Dual ball bearing cooling fan, ECO Intelligent Thermal Control System, Fully modular, Overcurrent protection, Overpower protection, Overvoltage protection, Short-circuit protection, SLI ready, Undervoltage protection
Frequency
50 - 60 hertz
Output Current
+12V - 133.3 A, +3.3V - 24 A, +5V - 24 A, +5VSB - 3 A, -12V - 0.5 A
Power Output Connectors Details
1 x power 24 pin ATX, 16 x 15 pin Serial ATA power, 2 x 4 pin mini-power connector, 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 5 x 6 pin PCI Express power, 6 x 4 pin internal power, 9 x 8 pin PCI Express power with detachable 2 pin section
Power Provided
1600 watt
Power Supply Compatibility
PC/Server
Provided Voltage
+3.3, +5, ±12 volt
Required Voltage
AC 115-240 volt
80 PLUS Certification
80 PLUS Titanium
Efficiency
94% (115VAC) / 96% (220-240VAC)
Form Factor (Power Device)
Internal
Max Operating Temperature
122 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Modular
Yes
MTBF
100,000 hour(s)
Packaged Quantity
1
Product Type
Power Supply
Subcategory
Power supplies
Height
3.3 inch
Weight
8 lbs
Width
5.9 inch
Depth
7.9 inch
Color Category
Black
Compliant Standards
BSMI, CB, cTUVus, Energy-Related Products (ErP) Lot 6, ErP 2013, FCC, RCM, RoHS, TUV, WEEE
ENERGY STAR Certified
No
Service & Support Details
Limited warranty - parts and labor - 10 years
Limited Warranty
10-year warranty
