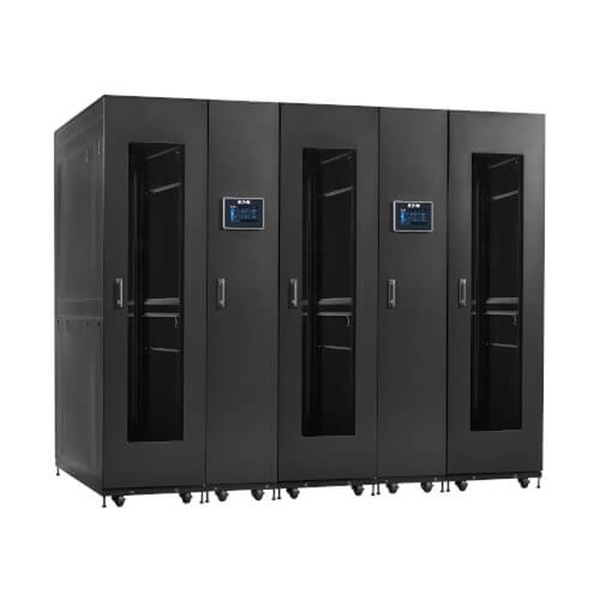

Eaton SmartRack Pre-Configured, Self-Cooling Modular Data Center - 3x 44U Racks, 2x 12 kW AC Units
Quick tech specs
- Scalable Modular Data Center combines IT rack and cooling enclosures to form one compact/configurable performance optimized data center POD
- Houses up to 132U of rackmount equipment on built-in mounting rails
- Ships ready for immediate population/connection/po- wering up
- Reduces deployment time/lowers costs/simplifies the launching process
- Slim 12 kW in-row cooling units help prevent equipment downtime
- Ideal for edge computing/AI and machine learning and manufacturing applications
Know your gear
Scalable Modular Data Center Promotes Quick Configuration and Lower Costs
The growth of edge computing and distributed AI has increased demand for small data centers with shorter deployment cycles - lower costs and optimized capacity This SmartRack Modular Data Center is composed of IT rack and cooling enclosures that form a performance optimized data center (POD) This solution reduces deployment time - lowers cost and simplifies the process of launching a new data center
Easy Configuration and Scalability
The SRP-3R-2C12's three IT rack enclosures each house up to 44U of rack-mounted equipment on built-in rails Dual cooling enclosures come with slim 12 kW in-row cooling units (SRCOOLDXRW12) to help prevent equipment malfunctions due to overheating or fluctuating temperatures Together - the IT rack enclosures and the data center cooling enclosures form an efficient closed-loop cooling system
Equipment Protection
POD enclosures protect equipment from physical and environmental conditions found in factories - warehouses and other edge computing locations Power and data cables are separated from cooling lines - protecting them from moisture The IT rack enclosures have locking front and back doors with clear acrylic windows that allow convenient visual monitoring of equipment
Efficient Cooling
The SRCOOLDXRW12 in-row precision cooling system includes an outdoor condenser Removable side panels form a closed-loop cooling system with the rack enclosures to help prevent equipment malfunctions due to overheating or fluctuating temperatures Precision cooling eliminates hot spots - prevents hot/cold mixing - reduces energy consumption - increases cooling capacity and decreases fan noise A user-friendly color touchscreen allows local access to data and status information The built-in WEBCARDLXMINI network interface allows remote monitoring and control
Hassle-Free Transport and Positioning
The POD's modular data center enclosures are durable enough to be transported on a standard flatbed truck They arrive on-site ready to be populated - connected and powered Included metal casters help you move the enclosures into their permanent position
Simple Maintenance Access
Access to equipment is easy through the enclosures' removable - locking side panels The cooling units' filters are user-replaceable with readily available standard-size filters
