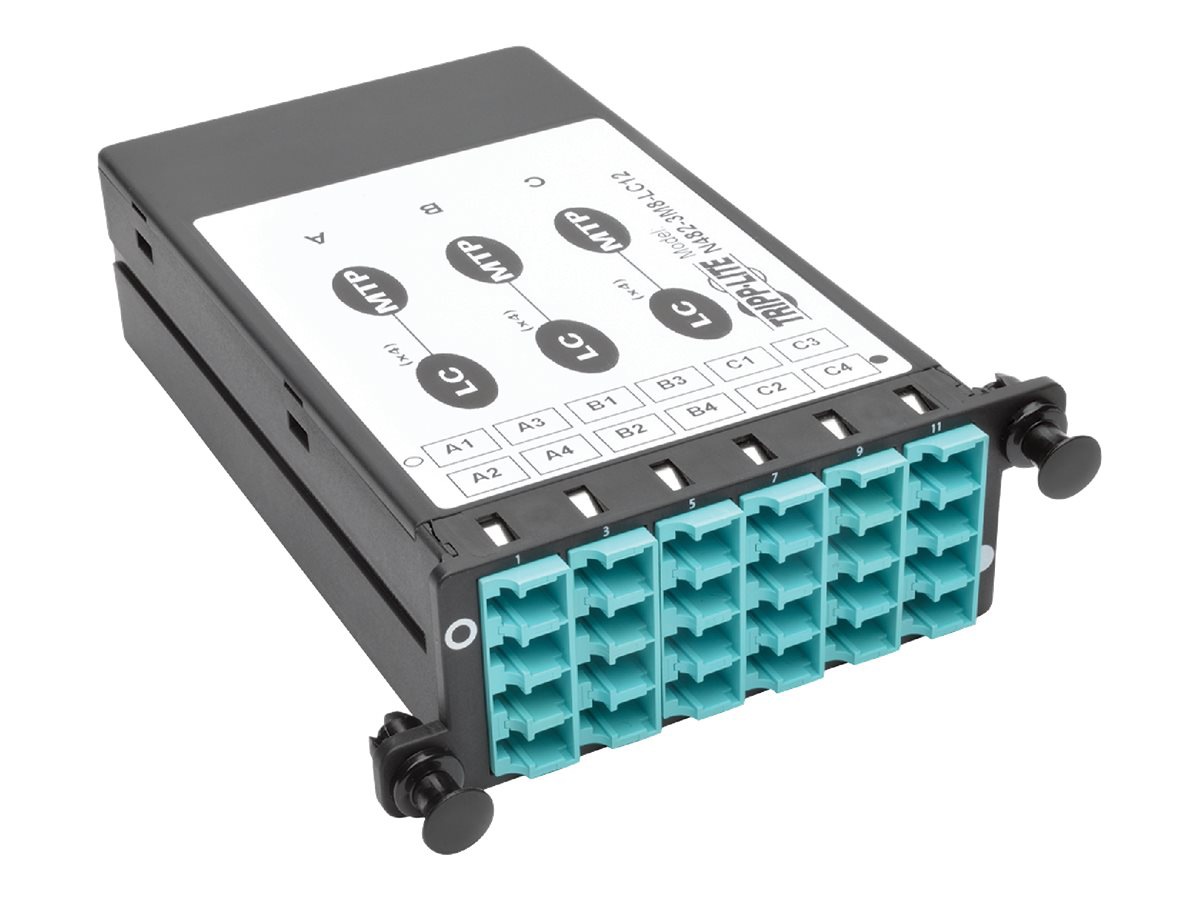

Eaton Tripp Lite Series 40GB -10GB Breakout Cassette x3 8-Fiber OM4 MTP/MPO to 12 LC Dup - fiber optic cassette

Elegant, Simple Solution for 40 Gb to 10 Gb, or 100 Gb to 25 Gb, LC Cable Connections

? High-density fiber cassette for use with N482-01U and N482-02U fiber enclosure panels

? Connect up to 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections

? Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB

? Supports 40/100 GbE internally using OM4 fiber optic cable

? Base-8 Fiber compatible with both QSFP+ 40 GbASE-SR4 to SFP+ 10 GbASE-SR and QSFP28 100 GbASE-SR4 to SFP28 25 GbASE-SR connections

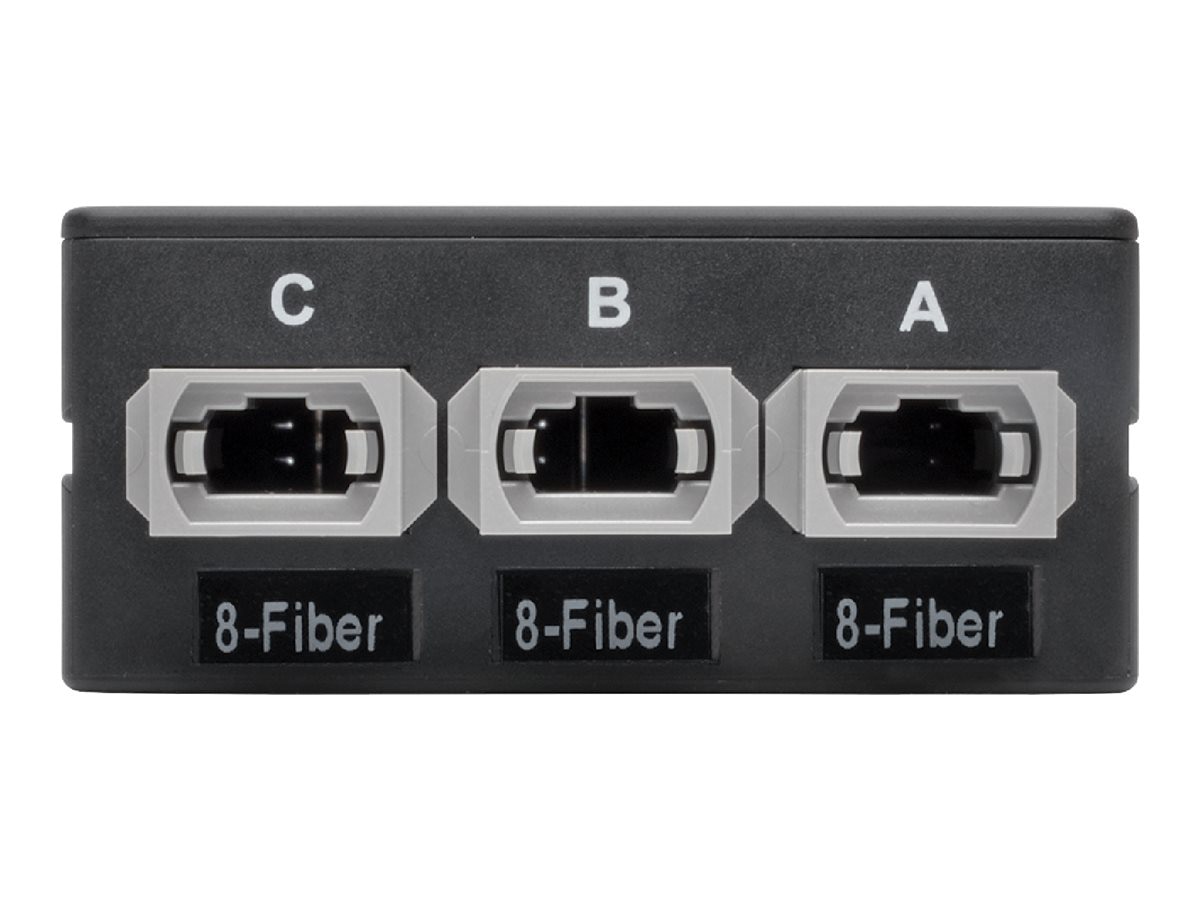

? 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity

? Also future-proofs your network for eventual 50Gb and 200Gb speeds and beyond

Designed Specifically for Use with Cabling

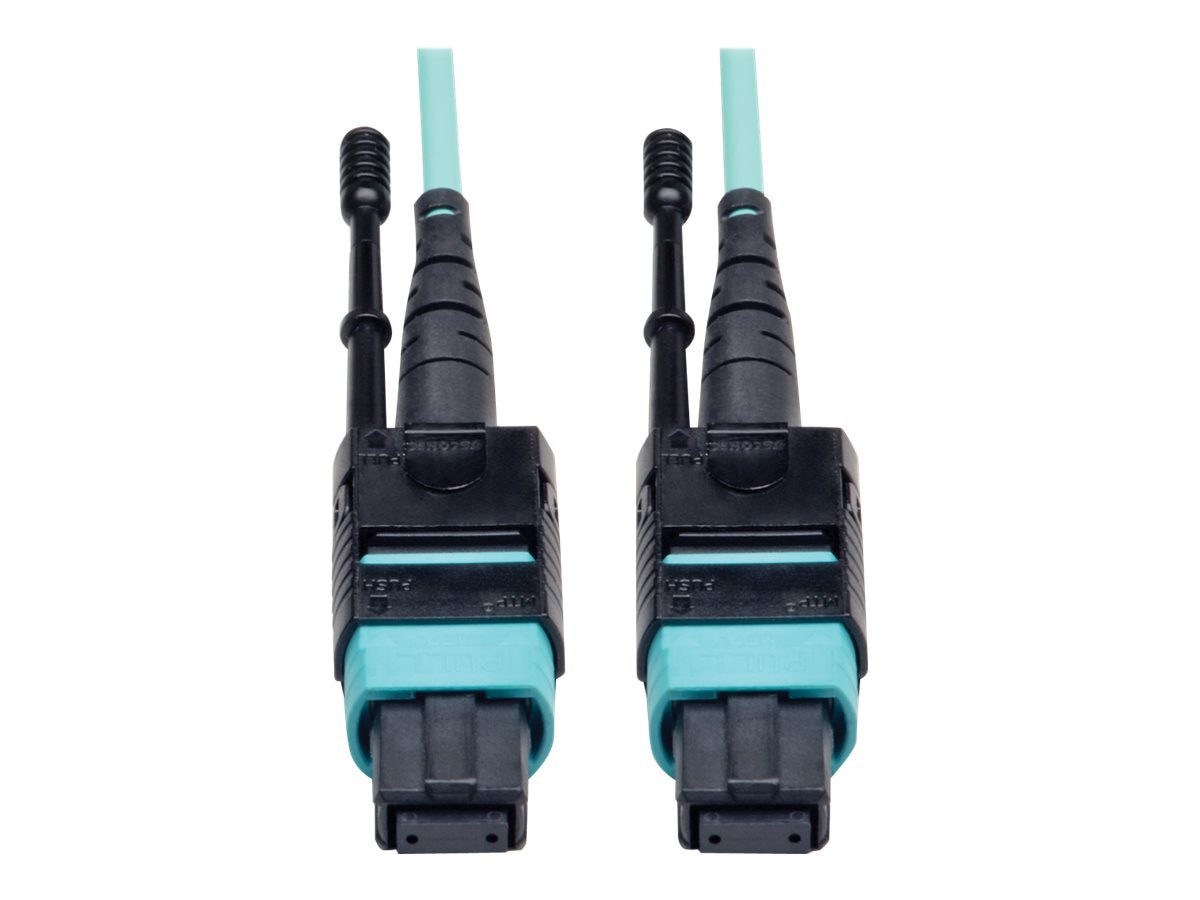

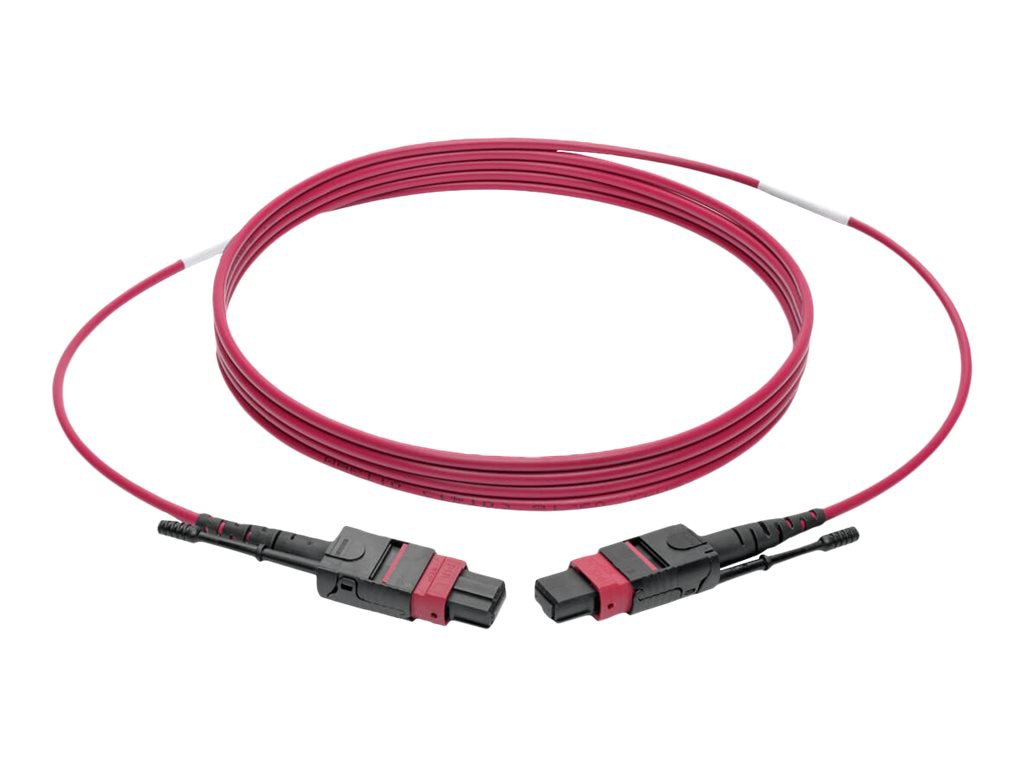

? Guaranteed compatibility with recommended cables, including N820-, N821-, N844-, N845- and N858-Series

Simple Fiber Installations Save Time and Money

? Easy installation with no tools required

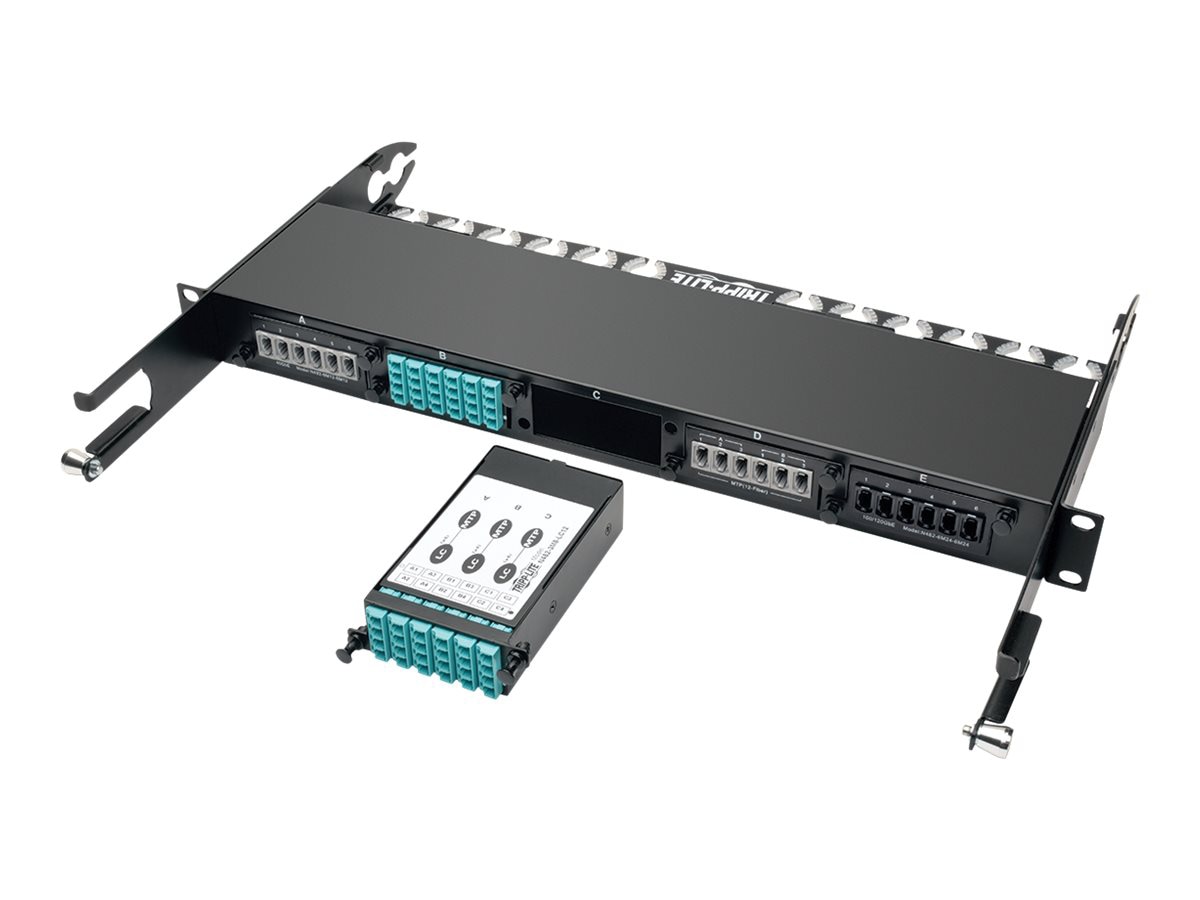

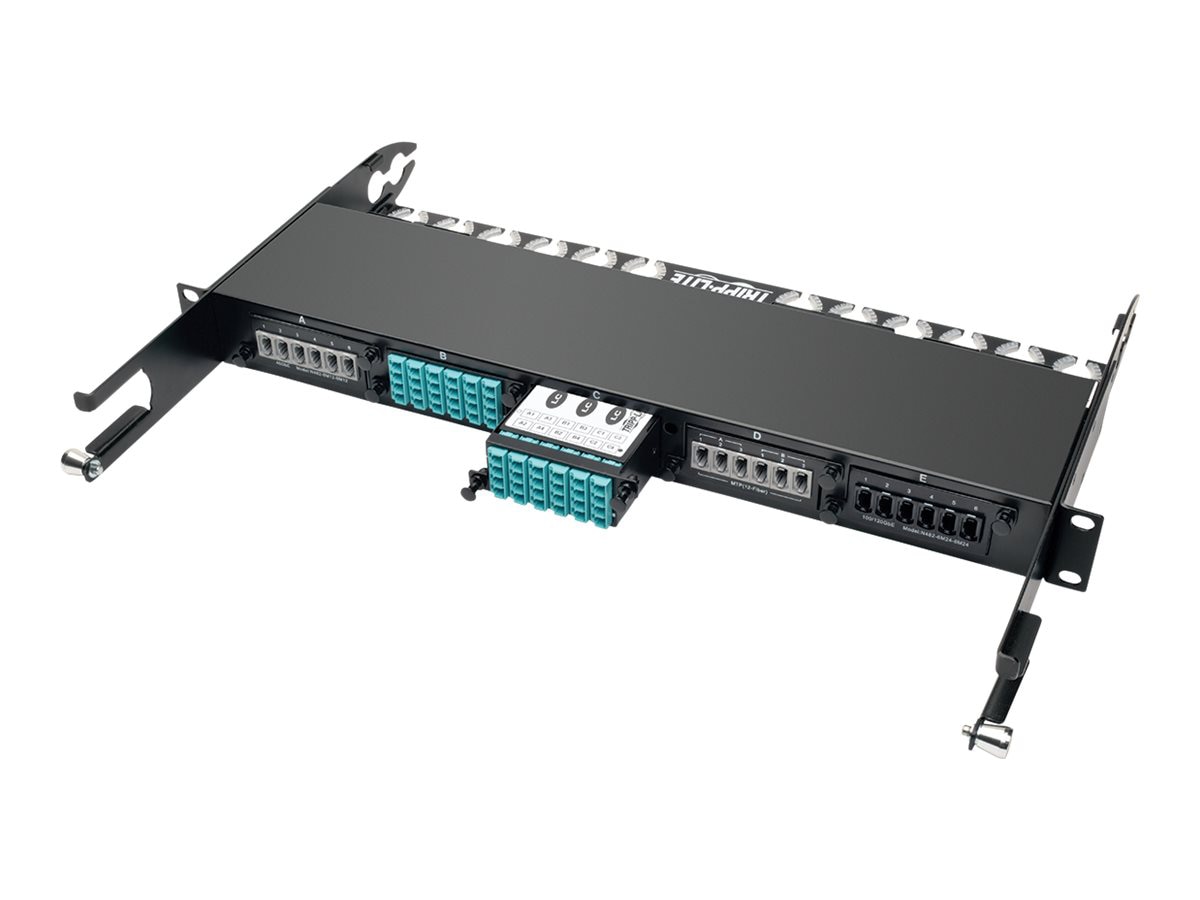

? Install up to 14 cassettes in N482-02U 2U chassis

? Install up to 5 cassettes in N482-01U 1U chassis

Easy to Modify, Upgrade or Expand Fiber Infrastructure by Adding or Swapping Cassettes

? Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements

? 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB

? Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment

Premium Construction for Optimal Performance

? Factory-terminated connectors reduce time and labor

? Dust caps protect unused ports.
