Tech specs
Brand
Epson
Product Line
Epson SureColor
Model
T5475
Manufacturer
Epson
Interface
Direct print USB, Gigabit LAN, USB 3.0, Wi-Fi(n)
Interface Required Connections
1 x Gigabit LAN - RJ-45, 1 x USB 3.0, Direct print port - 4 pin USB Type A
Color
4-ink
Image Enhancement Technology
EPSON Variable-sized Droplet Technology

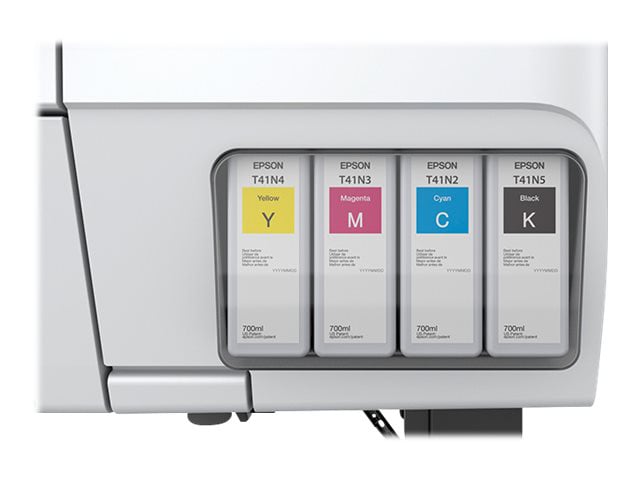

Ink Cartridge Configuration
4 cartridges (1 each: cyan, magenta, yellow, black)
Ink Palette Supported (Colors)
Cyan, magenta, yellow, black
Ink Type
Epson UltraChrome XD2 Ink
Inkjet Technology
Epson PrecisionCore MicroTFP
Max B/W Print Resolution
2400 x 1200 dpi
Max Color Print Resolution
2400 x 1200 dpi
Max Color Print Speed
0.4 min/page
Max H-Document Size
36 in
Max Mono Print Speed
0.4 min/page
Max Print Size
Roll (36 in)
Max Resolution Class B/W
2400 x 1200 dpi
Max Resolution Class Color
2400 x 1200 dpi
Min H-Document Size
8.25 in
Minimum Ink Droplet Size
4 pl
Mobile Device Printing
Wireless direct printing
Nozzle Configuration
800 nozzles (black), 3 x 800 nozzles (cyan, magenta, yellow)
Print Output Type
Color
Print Speed
Up to 0.4 min/page - B/W - A1 (23.4 in x 33.1 in), Up to 0.4 min/page - color - A1 (23.4 in x 33.1 in)
Wireless Print Technology
Wired, Wireless
Wireless Print Technology Ready
Yes
Large Format Printer Size
36"
Large Format Printer Size (metric)
914 mm
Media Feeders
1 - 1 roll - Roll (36 in)
Media Size Class
Other
Media Sizes
Roll (10 in), Roll (11.8 in), Roll (13 in), Roll (16 in), Roll (17 in), Roll (19.69 in), Roll (20.31 in), Roll (22.99 in), Roll (24 in), Roll (36 in)
Media Type
Plain paper
Touchscreen
No
Frequency
50 - 60 hertz
Power Consumption Operational
34 watt
Power Device Type
Power supply
Sleep-Mode Power Consumption
1.3 watt
Auto Paper Cutter
Yes
Language Emulation
EPSON ESC/P Raster, HP GL/2, HP RTL
Max Operating Temperature
95 degree Fahrenheit
Media Type
Plain paper
Min Operating Temperature
50 degree Fahrenheit
Operating Humidity
20 - 80% (non-condensing)
Operating System Required
Apple macOS 10.13.x, Apple MacOS X 10.10.x, Apple MacOS X 10.11.x, Apple MacOS X 10.7.x, Apple MacOS X 10.8.x, Apple MacOS X 10.9.x, Microsoft Windows 7 (32/64 bits), Microsoft Windows Vista, Microsoft Windows XP, Windows 10, Windows 8.1
Sound Emission (Idle)
32 dBA
Sound Emission (Operating)
50 dBA
Built-in Devices
Touch screen
Office Machine Type
Printer
Printer Product Type
Large-format printer
Printer Functions
Printer
Packaged Quantity
1
Preview Screen Size
4.3"
Preview Screen Size (metric)
10.9 cm
Print Technology
Inkjet
Consumables Included
1 x ink cartridge (black) - 110 ml, 1 x ink cartridge (cyan) - 110 ml, 1 x ink cartridge (magenta) - 110 ml, 1 x ink cartridge (yellow) - 110 ml
Printer Accessories Included
Stand
Height
41.7 inch
Weight
167.55 lbs
Width
54.5 inch
Depth
27.4 inch
Color Category
Black, White
Compliant Standards
CSA, EMC, FCC Class A certified, MET, RoHS, UL
Energy Star
Yes
ENERGY STAR Certified
No
EPEAT Compliant
No
Service & Support Details
Limited warranty - 1 year - on-site - response time: next business day, Technical support - phone consulting / Monday-Friday
Limited Warranty
1 Year
Standby Power Consumption
13 watt
