Tech specs
Brand
EVGA
Product Line
EVGA
Model

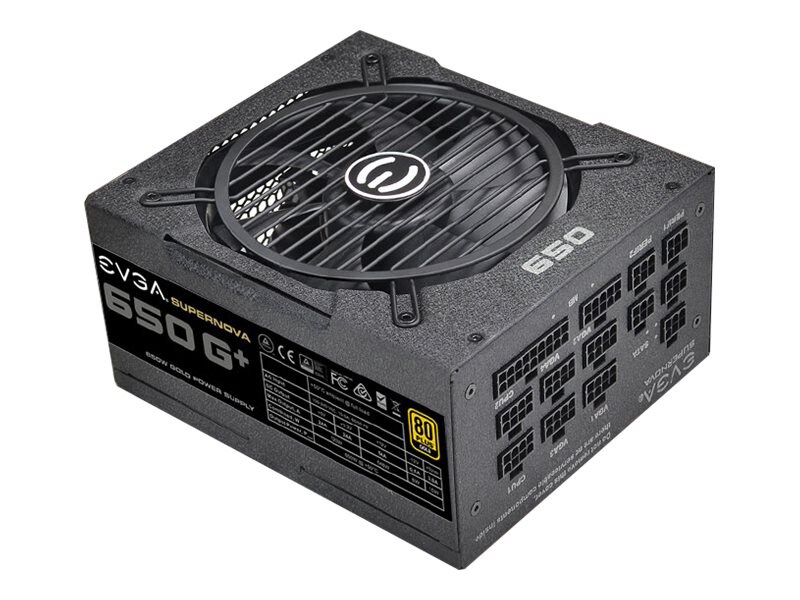

SuperNOVA 650 G1+
Manufacturer
EVGA
Cooling System
135 mm fan
Frequency
50 - 60 hertz
Output Current
+12V - 54 A, +3.3V - 24 A, +5V - 24 A, +5VSB - 3 A, -12V - 0.5 A
Power Output Connectors Details
1 x power 24 pin ATX, 2 x 4 pin mini-power connector, 2 x power 8 pin +12V with detachable 4 pin section, 4 x 8 pin PCI Express power with detachable 2 pin section, 6 x 4 pin internal power, 9 x 15 pin Serial ATA power
Power Provided
650 watt
Power Supply Compatibility
PC/Server
Provided Voltage
+3.3, +5, ±12 volt
PSU Form Factor
ATX
Required Voltage
AC 100 - 240 volt
Specification Compliance
ATX / EPS
80 PLUS Certification
80 PLUS Gold
Efficiency
90% (115VAC) / 92% (220-240VAC)
Form Factor (Power Device)
Internal
Max Operating Temperature
122 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
100,000 hour(s)
Packaged Quantity
1
Product Type
Power Supply
Subcategory
Power supplies
Cables
2 x 4 pin internal power cable 1.8 ft, 2 x PCI Express power cable 2 ft, 3 x Serial ATA power cable 1.8 ft, 4 pin internal power cable 2 ft, 4 pin internal power cable 2.5 ft, Power 24 pin ATX modular cable 2 ft, Power 4 pin to 4 pin mini-power cable, Power cable 5 ft, Serial ATA power cable 2 ft, Serial ATA power cable 2.5 ft
Height
3.3 inch
Width
5.9 inch
Depth
6.7 inch
Color Category
Black
Compliant Standards
BSMI, CB, CCC, cTUVus, cUL, FCC, RCM, RoHS, TUV, UL, WEEE
ENERGY STAR Certified
No
Service & Support Details
Limited warranty - 10 years
Limited Warranty
10-year warranty
