Tech specs
Brand
Fortinet
Product Line

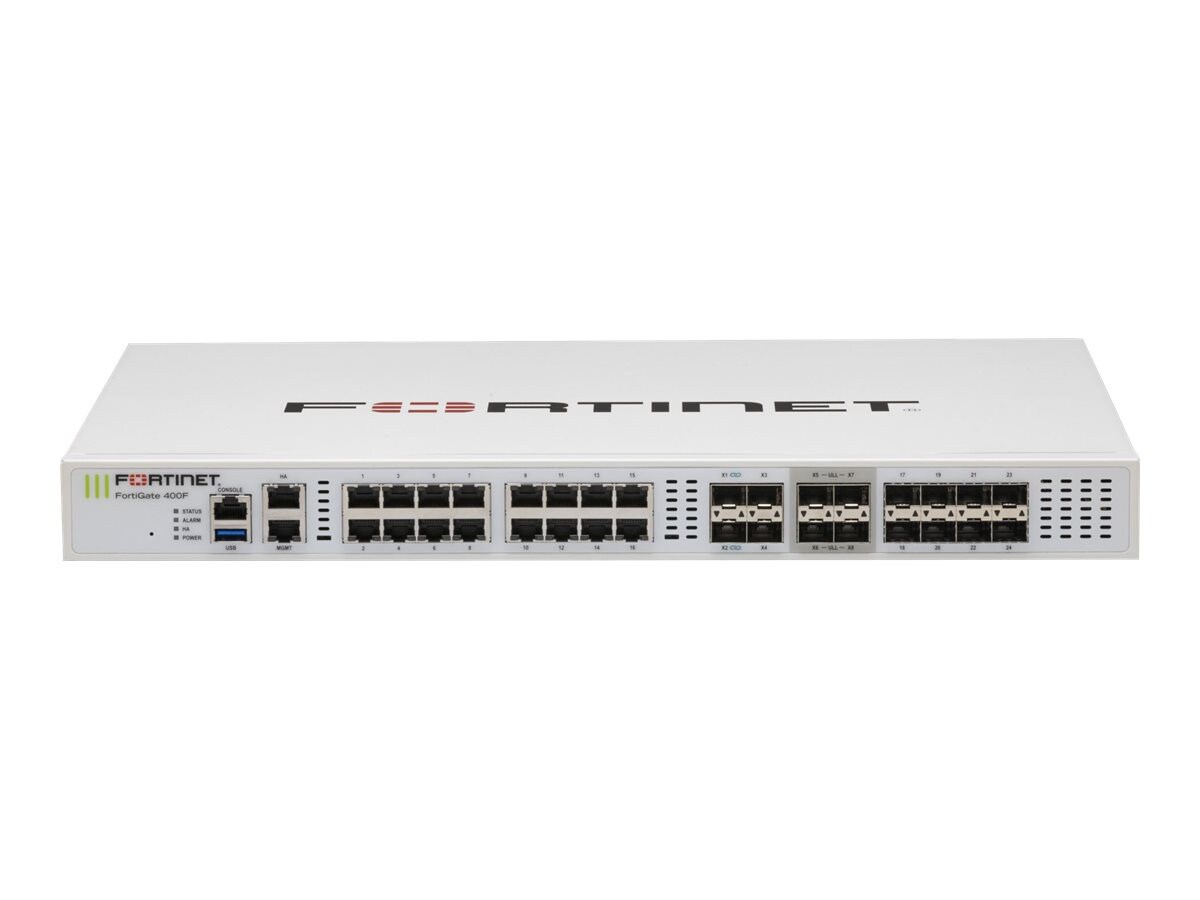

Fortinet FortiGate
Model
400F
Manufacturer
Fortinet
Processor Brand
Fortinet
Processor Type
FortiASIC CP9/NP7
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features
CAPWAP support, High Availability, IP tunnel acceleration, SD-WAN support, SSL inspection, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTN
Form Factor
Rack-mountable
Network Standard
HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Product Type
Security appliance
Remote Management
HTTP, HTTPS
Status Indicators
Alarm, HA, Power, Status
Interface Provided
1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) -, 1 x console - RJ-45, 1 x USB - Type A, 16 x 1000Base-T - RJ-45, 4 x 1000Base-X/10GBase-X - SFP, 4 x 10GBase-X (ultra-low laten, 8 x 1000Base-X - SFP
Bundled Services
3 years FortiCare 24X7 Support
Frequency
50/60 hertz
Hot-Plug
Hot-plug
Power Consumption Operational
154.8 watt
Power Supplies Supported
2
Redundant Power Supply
Yes
Required Voltage
AC 100 - 240 volt
80 PLUS Certification
80 PLUS
Encryption
256-bit AES, 256-bit SHA, SSL, TLS 1.3
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
5 - 90% (non-condensing)
Airflow Direction
Front and side to back
Capacity
Client to gateway IPSec VPN tu, Concurrent SSL VPN users: 5000, Concurrent TCP sessions: 78000, Firewall policies: 10000, Gateway to gateway IPSec VPN T, Maximum virtual domains: 10, New TCP sessions per second: 5, Number of FortiAP devices (tun, Number of FortiAP devices: 512, Number of FortiSwitches: 72, Number of FortiToken devices:, SSL inspection concurrent sess, SSL inspection CPS: 6000, Virtual domains: 10
Device Type
Internal power supply
Packaged Quantity
1
Service Activation
No
Network Device
Application control throughput, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP), Firewall latency (64-byte UDP,, Firewall throughput: 105 Mpps, IPS throughput (enterprise tra, IPv4 firewall throughput (1518, IPv4 firewall throughput (512-, IPv4 firewall throughput (64-b, IPv6 firewall throughput (1518, IPv6 firewall throughput (512-, IPv6 firewall throughput (86-b, NGFW throughput (enterprise tr, SSL inspection throughput: 8 G, Threat protection throughput (, VPN throughput (512-bit IPSec), VPN throughput (SSL): 3.6 Gbps
Included Accessories
2 x 1Gb Ethernet SX SFP transc
Height
1.7 inch
Height (Rack Units)
1
Weight
14.11 lbs
Width
17 inch
Depth
15 inch
Color Category
White
Compliant Standards
CB, cUL, FCC Part 15 A, ICSA Antivirus, ICSA Firewall certified, ICSA IPS, ICSA IPSec certified, ICSA SSL-VPN, RCM, UL, USGv6, VCCI
ENERGY STAR Certified
No
Compatibility Specs
P/N: FN-TRAN-GC, FN-TRAN-LX, F
