Tech specs
Brand
Hanwha Vision
Product Line
Hanwha Vision
Model

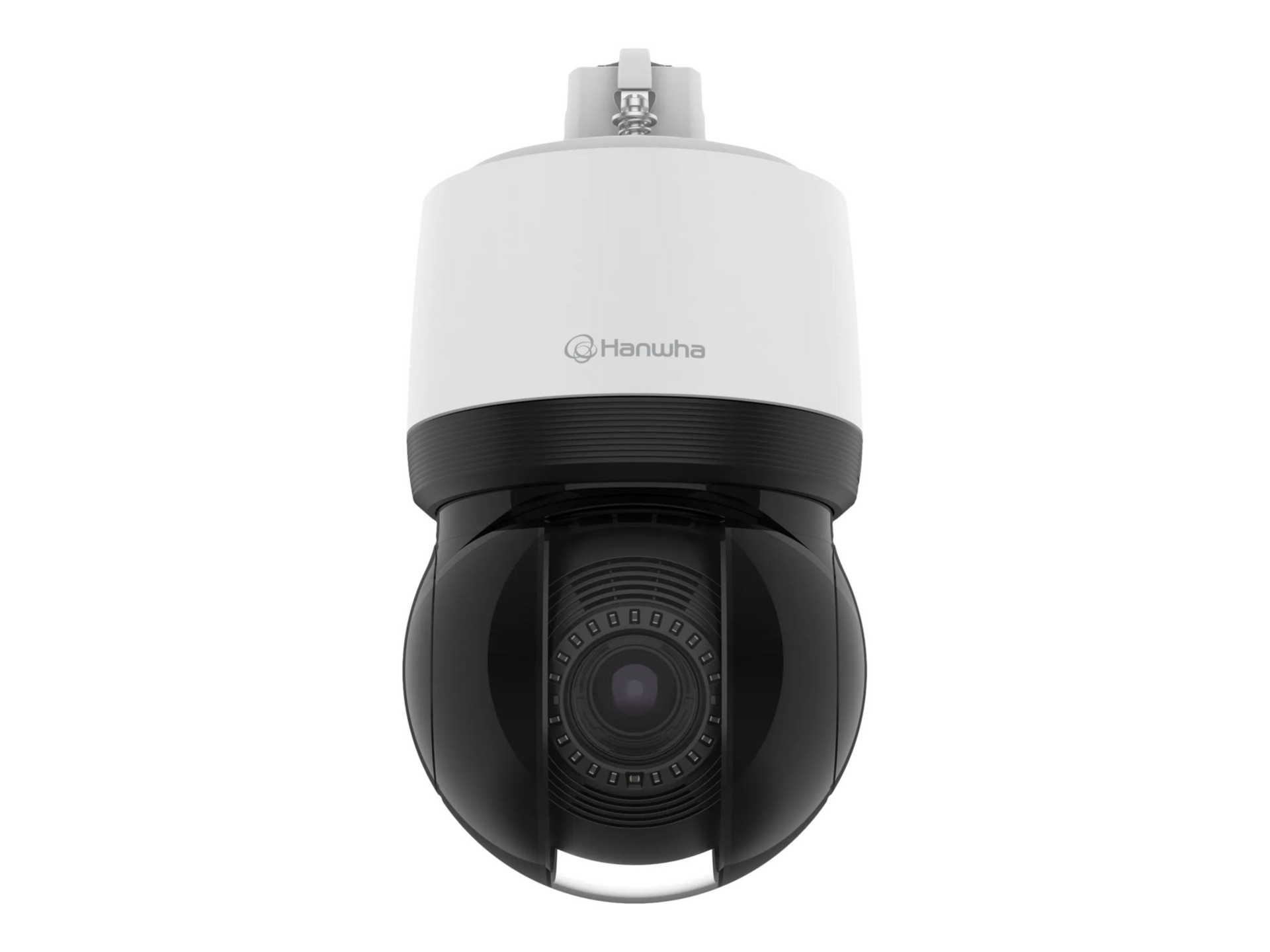

XNP-C6403
Manufacturer
Hanwha
Flash Memory Installed
512 megabyte
Memory Cards Supported
microSD Card, microSDHC Card, microSDXC Card
RAM Installed
4 GB
Network Interface
Ethernet 10Base-T/100Base-TX
Protocols
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology
Wired
Ports
LAN/power - RJ-45
Image Sensor Size
1/2.8"
Image Sensor Type
CMOS
Tilt
-20 to +90
Camera Mechanical Design
Pan / tilt / zoom
Digital Video Capture Resolution
1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom
32
Max Frame Rate
60 frames per second
Max Panning Speed (degree/sec)
700
Max Tilting Speed (degree/sec)
500
Max Video Resolution
1920 x 1080
Motion Detection
Yes
Panning Range (degree)
360
Shutter Speed (Max)
1/12000 second (time unit)
Shutter Speed (Min)
2 second (time unit)
Camera Type
Network surveillance camera
Night Vision
Yes
Low Voltage Power
PoE Plus Class 4
Power Consumption Operational
25.5 watt
Angular Field of View (H, Max, Degree)
65.66
Angular Field of View (H, Min, Degree)
1.88
Angular Field of View (V, Max, Degree)
39.4
Angular Field of View (V, Min, Degree)
1.09
Auto Iris Control
DC
Camera Iris
Auto iris
Focal Length Control
Motorized zoom
Focus Modes
Automatic, Manual
Lens Aperture
F/1.6-4.95
Max Focal Length
170 millimetre
Max Operating Temperature
165.2 degree Fahrenheit
Min Focal Length
4.25 millimetre
Min Focus Distance
16.4 ft
Min Operating Temperature
-40 degree Fahrenheit
Minimum Illumination
0.005 lux - B&W - F1.6 - shutter 1/30 sec, 0.05 lux - color - F1.6 - shutter 1/30 sec
Operating Humidity
0 - 95% RH (non-condensing)
Optical Zoom
40
Sensor Size (metric)
9.1 mm (1/2.8")
Total Pixels
2,000,000 pixels
Video Formats
H.264, H.265, MJPEG
Video Input
Color
Features
300 preset positions, Adjustable gain control, Aluminum housing, Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Azimuth display, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, DORI coverage, Entrance / exit detection, Extreme WDR, Face Detection, Firmware encryption, Fog detection, Hard-coated dome, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, Lens heater, License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Object Detection, Object Tracking, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Polycarbonate housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Signed firmware, Smart Codec, Sound classification, Spin dry, Tamper-detection, Target lock tracking, TPM 2.0 module, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Packaged Quantity
1
Height
11.5 inch
Weight
7.05 lbs
Width
6.2 inch
Depth
6.2 inch
Color
Black, RAL 9003, RAL 9005, White
Color Category
Black, White
Compliant Standards
CE/EAC, cULus, FCC, FIPS 140-2 Level 2, IEEE 802.1x, IEEE 802.3at, IK10, IP66, NDAA, NEMA TS-2 (2.2.8-2.2.9), NEMA Type 4X
Service & Support Details
Limited warranty - 3 years
Limited Warranty
3 Year
