Tech specs
Brand
Honeywell
Product Line
Honeywell
Model

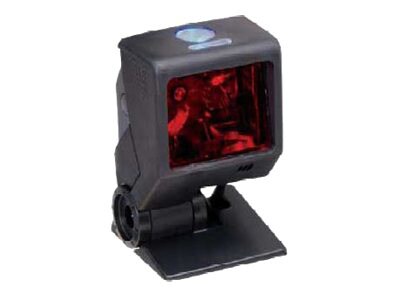

QuantumT 3580
Manufacturer
Honeywell
Connectivity Technology
Wired
Interface Required
1 x RS-232
Barcode Symbology Supported
Codabar, Code 11, Code 128, Code 39, Code 39 Full ASCII, Code 93, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Interleaved 2 of 5, ITF, MSI-Plessey, UPC, UPC-A, UPC-E
Scan Mode
Single-pass
Scan Rate
1650 line / sec
Electric Current Required
230 mA (standby), 275 mA (operating)
Drop Specification
5 ft
Form Factor
Desktop
Image Sensor Type
Visible laser diode
Interface
RS-232
Light Source Wave Length
640-660 nm
Max Operating Temperature
104 degree Fahrenheit
Max Scan Field
11.73 inch
Min Operating Temperature
-4 degree Fahrenheit
Min Scan Field
0.75 inch
Minimum Bar Width
5 milli-inch
Operating Humidity
5 - 95% (non-condensing)
Print Contrast Signal (PCS)
35%
Skew (Degrees)
60
Scanner Functionality
Barcode scanner
Features
CodeGate, Reduced Space Symbology (RSS)
Max Coverage Angle
60
OK Notification
Beeper, LED indicator
Packaged Quantity
1
TTL Decoding
Decoded
Cables
1 x serial cable - external - 11 ft
Included Accessories
Stand
Height
4.3 inch
Weight
6 ounce
Width
2.6 inch
Depth
2.6 inch
Color
Black
Color Category
Black
Compliant Standards
cULus
Service & Support Details
Limited warranty - 3 years
Integrated System
3-year warranty
