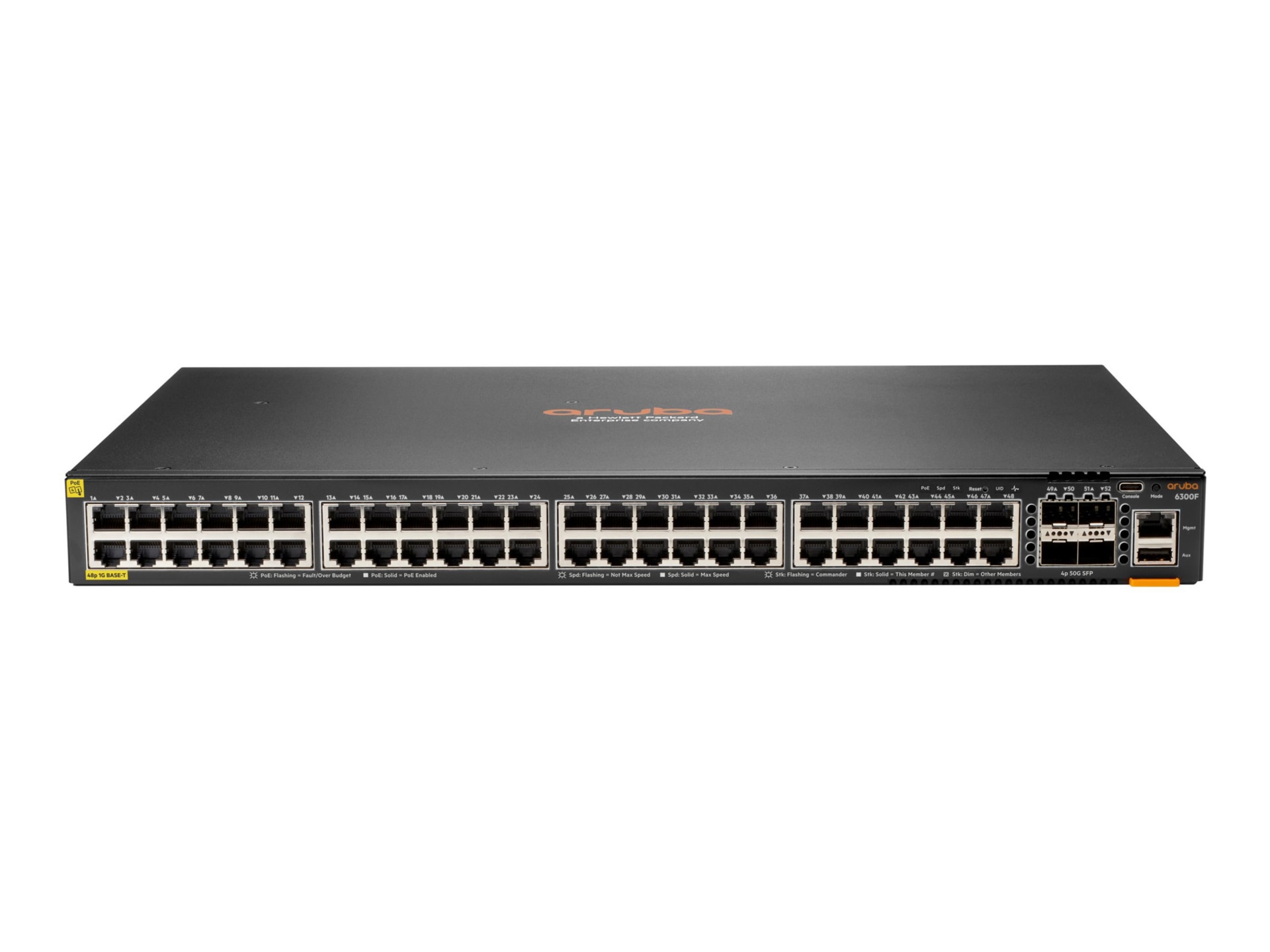

Tech specs
Brand
Aruba
Product Line
HPE Aruba
Model
6300M
Manufacturer
Aruba
Clock Speed
1.8 GHZ
Processor Brand
ARM
Processor Type
Cortex-A72
Processors Installed
1
Flash Memory Installed
32 GB
Memory Technology
DDR4 SDRAM
RAM Installed
8 GB
Advanced Switching
Layer 3
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features
2 fan tray slots, Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Source Discovery Protocol (MSDP), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9198 bytes
MAC Address Table Size
32768 entries
Manageable
Yes
Ports
48
Product Type
Switch
Remote Management
CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol
BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RSTP, STP, VRRP
Stackable
Stackable
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Interface Provided
1 x management, 1 x USB Type A, 1 x USB-C, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56, 48 x 10/100/1000 Base-T RJ-45
Port Quantity
48
Port Type
10/100/1000
Ports Type (2nd)
1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Features
Power-to-port airflow
Frequency
50/60 hertz
Hot-Plug
Hot-plug
Power Provided
75 watt
Power Supplies Installed
1
Power Supplies Supported
2
Redundant Power Supply
Optional
Redundant Power Supply Supported
1+1 (with optional power supply)
Encryption
FIPS 140-2
Humidity Range Storage
15 - 95% (non-condensing)
Max Operating Temperature
113 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
Operating Humidity
15 - 95% (non-condensing)
Airflow Direction
Back to front airflow
Authentication Method
RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity
IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
Device Type
Internal power supply
Packaged Quantity
1
Performance
Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps
Ports (2nd) Quantity
4
Rack Mounting Kit
Included
Height
1.7 inch
Height (Rack Units)
1
Weight
12.57 lbs
Width
17.4 inch
Depth
15.2 inch
Color Category
Black
Compliant Standards
CAN/CSA C22.2 No. 60950-1-07, CISPR 32:2015+COR1:2016, CISPR 35:2016 Class A, CNS 14336-1, EN 55032:2015+AC:2016 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TAA Compliant
Yes
TCO Certified
No
Service & Support Details
Limited warranty - lifetime
Limited Warranty
Limited Lifetime
