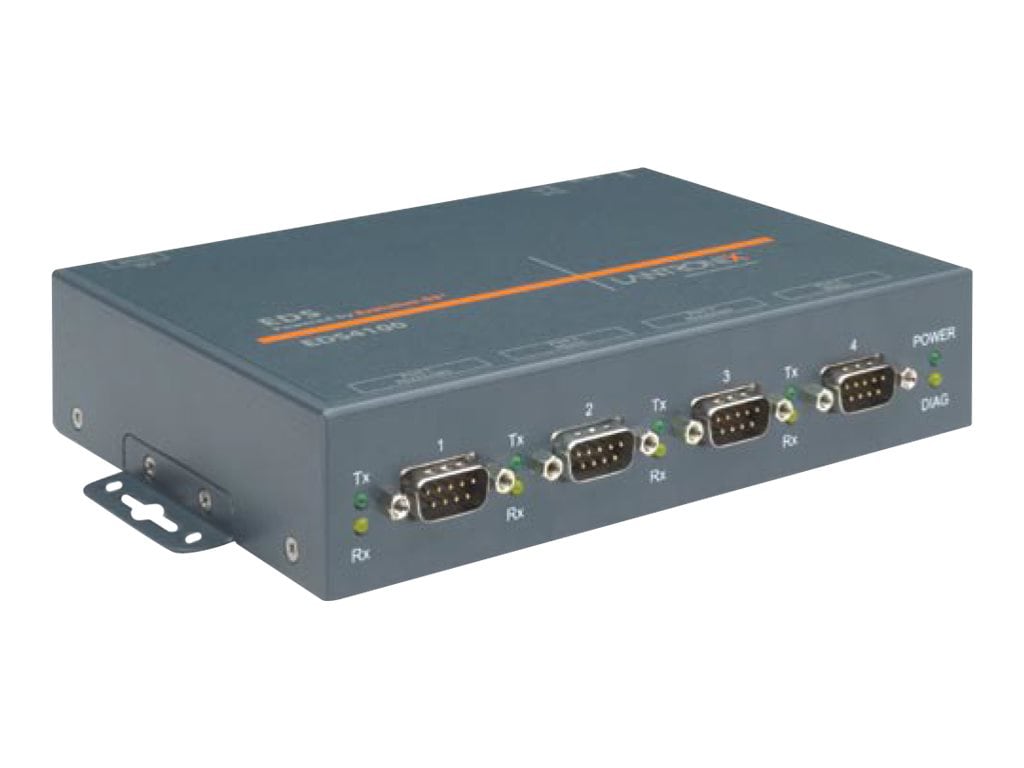

Lantronix Device Server EDS4100 - device server
$434.99
Mfg # ED41000P0-01
CDW # 1026104
Know your gear
The EDS4100 is the first external Device Server to deliver an enterprise-grade, programmable device computing and networking platform for integrating 'edge' equipment into the enterprise network.
Featuring Lantronix Evolution OS, the powerful real-time Networking Operating System, the EDS4100 delivers an unprecedented level of intelligence and security to networked equipment. With this powerful product, just about any piece of equipment with a serial port can become a fully secure member of the corporate network so it can be accessed and managed remotely from virtually anywhere.
Without requiring any special software, the EDS4100 can put up to four RS-232 and/or 254 RS-485 serial devices on the network in a matter of minutes. Serial data from the device is encapsulated into packets and transported over Ethernet using a method called "serial tunneling." Set up is a breeze with the included Windows-based web manager software. The EDS4100 can also be set up locally through its serial port, or remotely over a network using Telnet, a web browser or SNMP.
Evolution OS provides 'data center grade' level of protection so that each device on the M2M (machine-to-machine) network carries the same level of security as IT equipment in the corporate data center. The EDS4100 has robust defenses to hostile Internet attacks such as denial of service (Dos) and port mapping that can be used to take down the network. The hardened OS and mature protocol stack prevents it from being used to bring down other devices on the network. And with built-in SSH and SSL, it includes robust key management algorithms that verify the data received came from the proper source, validate that the data transferred from the source over the network is unchanged when it arrives at its destination, and provide ability to run popular M2M protocols over a secure SSH connection
With SSH and SSL, the EDS4100 supports a variety of popular cipher technologies including 128/256/512/1024-bit AES (Rijndael), 3DES and RC4 Encryption Public/Private-keys and hashing algorithms such as SHA-1 and MD5. HTTP authentication uses Base-64, Digest Authentication and SSL.
The EDS4100 uses a Cisco-like command line interface (CLI) with syntax that is very similar to that used by data center equipment such as routers and hubs. This industry-standard tool simplifies configuration and control, making it easier to integrate edge devices into the enterprise network.
XML is a standard tool for web services, data transfer and rich content management that encapsulates data into a text-based format. XML-based configuration and setup records in EDS4100 make the device configuration transparent and easily modified with a standard text or XML editor.
EDS4100 features true IEEE 802.3af-compliant Power over Ethernet (PoE) using both Ethernet pairs. Eliminating the need for an external power supply and associated labor costs, EDS4100 is ideally suited to add immediate networking functionality for remote equipment located virtually anywhere.
Eight MB of Flash memory provide maintenance-free nonvolatile storage of web pages, and enable future system software upgrades. Featuring a 32-bit XScale processor and 32MB of RAM, the EDS4100 is highly customizable with the Evolution OS Software Developers' Kit (SDK). A free compiler is available.
The EDS4100 also features a mini PCI for future expansion, including additional possibilities such as modems, 802.11 wireless and FIPS 140-2 level 2 encryption.
Lantronix Com Port Redirector software is included. It redirects application data destined for a local serial (COM) port on a PC to a serial port on the EDS4100. Data sent from the device to the EDS4100 is transmitted back to the application over the network. Com Port Redirector then presents the data to the application as if it were from a local serial COM port.
Featuring Lantronix Evolution OS, the powerful real-time Networking Operating System, the EDS4100 delivers an unprecedented level of intelligence and security to networked equipment. With this powerful product, just about any piece of equipment with a serial port can become a fully secure member of the corporate network so it can be accessed and managed remotely from virtually anywhere.
Without requiring any special software, the EDS4100 can put up to four RS-232 and/or 254 RS-485 serial devices on the network in a matter of minutes. Serial data from the device is encapsulated into packets and transported over Ethernet using a method called "serial tunneling." Set up is a breeze with the included Windows-based web manager software. The EDS4100 can also be set up locally through its serial port, or remotely over a network using Telnet, a web browser or SNMP.
Evolution OS provides 'data center grade' level of protection so that each device on the M2M (machine-to-machine) network carries the same level of security as IT equipment in the corporate data center. The EDS4100 has robust defenses to hostile Internet attacks such as denial of service (Dos) and port mapping that can be used to take down the network. The hardened OS and mature protocol stack prevents it from being used to bring down other devices on the network. And with built-in SSH and SSL, it includes robust key management algorithms that verify the data received came from the proper source, validate that the data transferred from the source over the network is unchanged when it arrives at its destination, and provide ability to run popular M2M protocols over a secure SSH connection
With SSH and SSL, the EDS4100 supports a variety of popular cipher technologies including 128/256/512/1024-bit AES (Rijndael), 3DES and RC4 Encryption Public/Private-keys and hashing algorithms such as SHA-1 and MD5. HTTP authentication uses Base-64, Digest Authentication and SSL.
The EDS4100 uses a Cisco-like command line interface (CLI) with syntax that is very similar to that used by data center equipment such as routers and hubs. This industry-standard tool simplifies configuration and control, making it easier to integrate edge devices into the enterprise network.
XML is a standard tool for web services, data transfer and rich content management that encapsulates data into a text-based format. XML-based configuration and setup records in EDS4100 make the device configuration transparent and easily modified with a standard text or XML editor.
EDS4100 features true IEEE 802.3af-compliant Power over Ethernet (PoE) using both Ethernet pairs. Eliminating the need for an external power supply and associated labor costs, EDS4100 is ideally suited to add immediate networking functionality for remote equipment located virtually anywhere.
Eight MB of Flash memory provide maintenance-free nonvolatile storage of web pages, and enable future system software upgrades. Featuring a 32-bit XScale processor and 32MB of RAM, the EDS4100 is highly customizable with the Evolution OS Software Developers' Kit (SDK). A free compiler is available.
The EDS4100 also features a mini PCI for future expansion, including additional possibilities such as modems, 802.11 wireless and FIPS 140-2 level 2 encryption.
Lantronix Com Port Redirector software is included. It redirects application data destined for a local serial (COM) port on a PC to a serial port on the EDS4100. Data sent from the device to the EDS4100 is transmitted back to the application over the network. Com Port Redirector then presents the data to the application as if it were from a local serial COM port.
