Tech specs
Brand
MINUTEMAN
Product Line
Minuteman Enspire-G
Model
EN900LGU
Manufacturer
Minuteman
Remote Management
SNMP
Remote Management Interface
USB
Input Connectors
1
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11
Emergency Power Off
Audible alarm, Hot-swappable batteries, LCD display
Frequency
60 hertz
Frequency Provided
60 hertz
Frequency Provided Margin
± 6Hz
Frequency Required Margin
± 6Hz
Input Connector Type
Power NEMA 5-15P
Input Voltage Range
AC 95 - 140 V
Load Type
At full load
Max Run Time
11 min at half load, 3 min at full load
Max Spike Current
12 ampere
Output Connector Quantity
10
Power Capacity
900 volt ampere per kilogram
Power Output Connectors Details

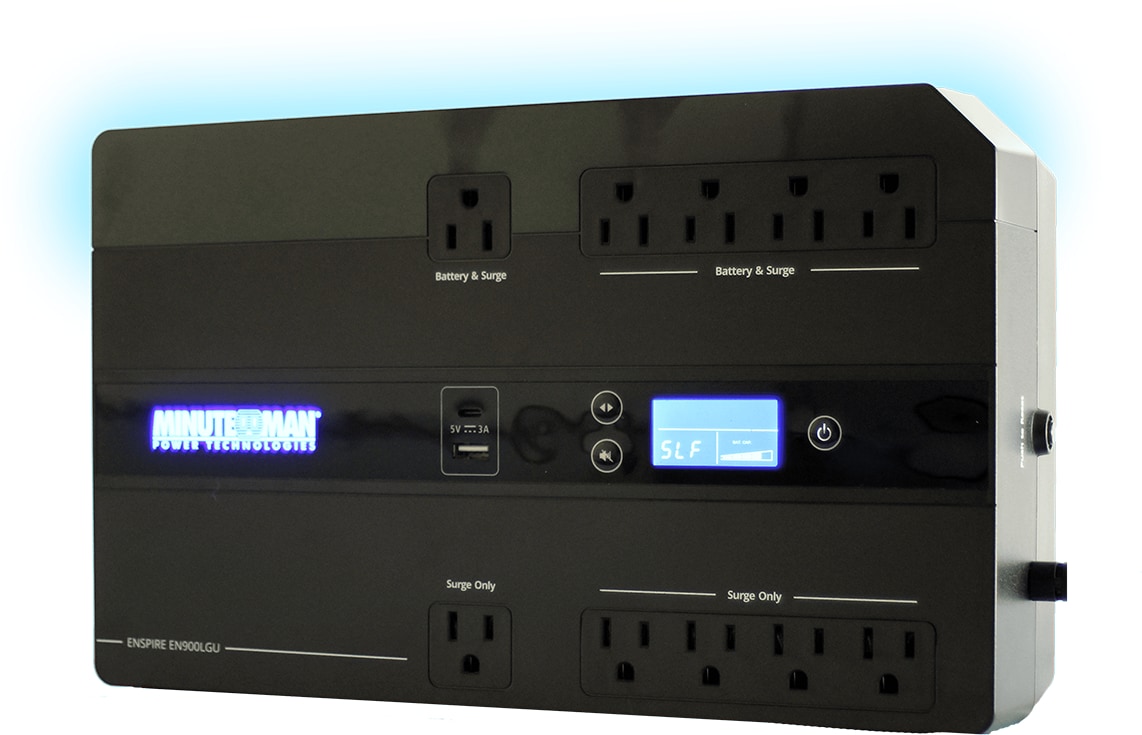

1 x 24 pin USB-C - 5 V 3 A, 1 x 4 pin USB Type A - 5 V 3 A, 5 x power NEMA 5-15R (surge), 5 x power NEMA 5-15R (UPS and surge)
Power Provided
500 watt
Provided Voltage
AC 95-140 volt
Surge Suppression
Yes
Switching Capacity
6 millisecond
UPS Technology
Off-line
Waveform Type
Sine Wave
Battery Run Time (Up To)
3 minute (time unit)
Form Factor (Power Device)
Wall mountable / surface mountable
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
0 - 95% (non-condensing)
Protection Type
Circuit breaker
Packaged Quantity
1
Product Type
UPS
Subcategory
UPS
Included Accessories
Power cable
Height
4.1 inch
Weight
9.92 lbs
Width
7.8 inch
Depth
12.8 inch
Color Category
Black
Compliant Standards
cTUVus, FCC Class B certified, NOM, RoHS 2, UL 1778 5th edition
Energy Star
Yes
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - batteries - 2 years, Limited warranty - electrical components and functions - 3 years
Limited Warranty
3 Year
Surge Energy Rating
1000 joules
