Tech specs
Brand
QNAP
Product Line
QNAP
Model

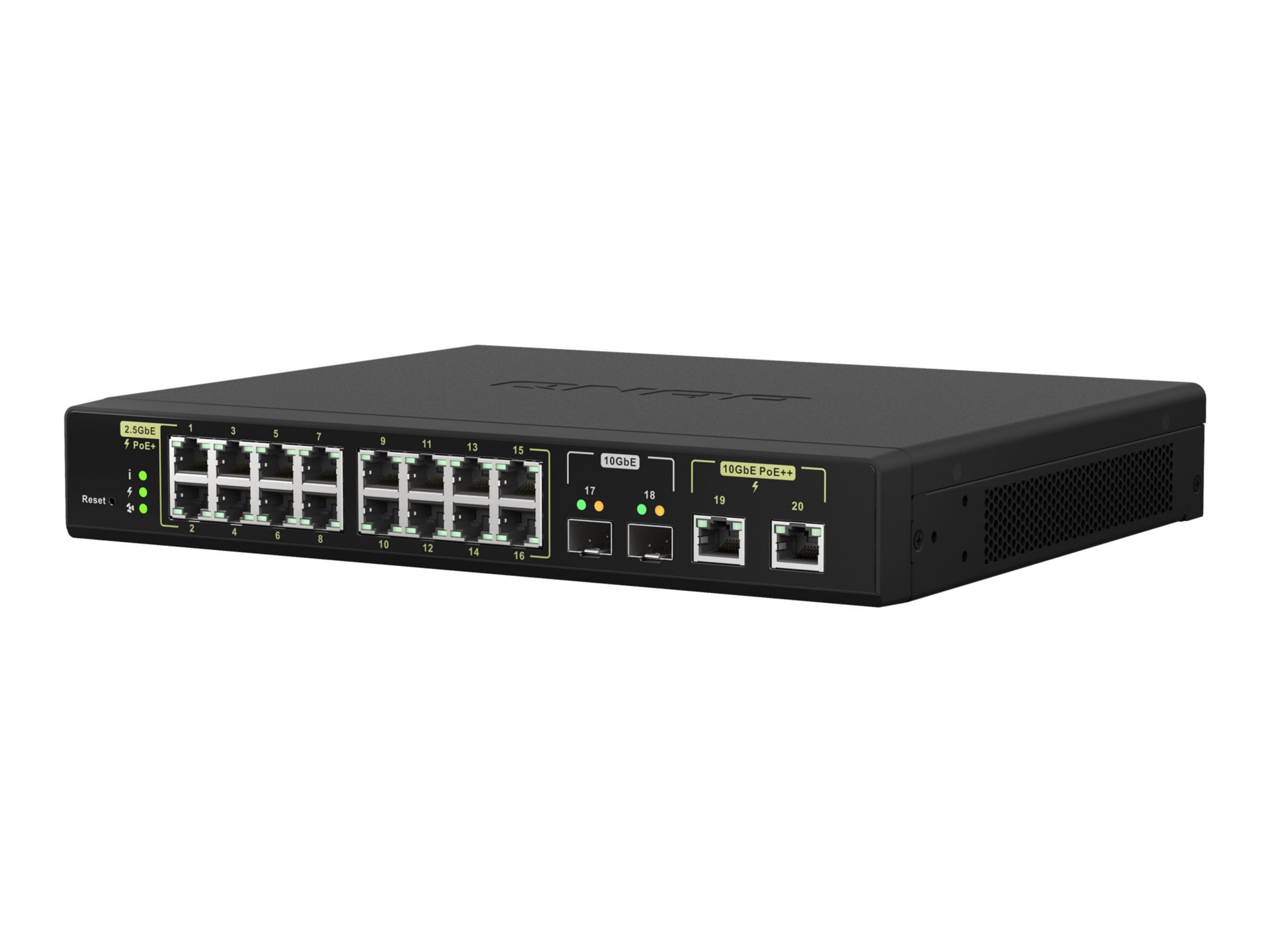

QSW-M2116P-2T2S
Manufacturer
QNAP
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features
Access Control List (ACL) support, Auto-negotiation, Firmware upgradable, Flow control, IGMP snooping, Jumbo Frames support, Link Aggregation Control Protocol (LACP), Loop prevention, MAC address filtering, Port mirroring, Port-based VLAN, Quality of Service (QoS), Security slot (Kensington security lock compatible), Web-based management
Form Factor (Hubs & Switches)
Desktop, Rack-mountable
Jumbo Frame Support
Yes
MAC Address Table Size
32K entries
Manageable
Yes
PoE Budget
280 watt
Ports
20
Power Over Ethernet (PoE)
PoE++
Product Type
Switch
Status Indicators
Link/activity, Port transmission speed, Power, Status
Subcategory
Network hubs and switches
Switching Type
10 Gigabit Ethernet
QSFP Slots
100/1000/2.5/5/10G (PoE++)
Interface Provided
1 x management RJ-45, 16 x 2.5Gbit LAN RJ-45 PoE+ - 30 W, 2 x 10Gbit LAN RJ-45 PoE++ - 90 W, 2 x 10Gbit LAN SFP+
Port Quantity
16
Port Type
100/1000/2.5G (PoE+)
Ports Type (2nd)
10 Gigabit SFP+
Frequency
50/60 hertz
Power Consumption Operational
350 watt
Required Voltage
AC 100-240 volt
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
5 - 95% (non-condensing)
Device Type
Internal power supply
Packaged Quantity
1
Performance
Non-blocking switching throughput: 80 Gbps, Switching capacity: 160 Gbps
Ports (2nd) Quantity
2
Ports (3rd) Quantity
2
Rack Mounting Kit
Included
Included Accessories
4 rubber feet, Power cord, Rack mount kit
Height
1.7 inch
Height (Rack Units)
1
Weight
4.59 lbs
Width
11.2 inch
Depth
9.2 inch
Color Category
Black
Compliant Standards
BSMI, Class A, FCC, VCCI
Service & Support Details
Limited warranty - 2 years
Limited Warranty
2 Year
