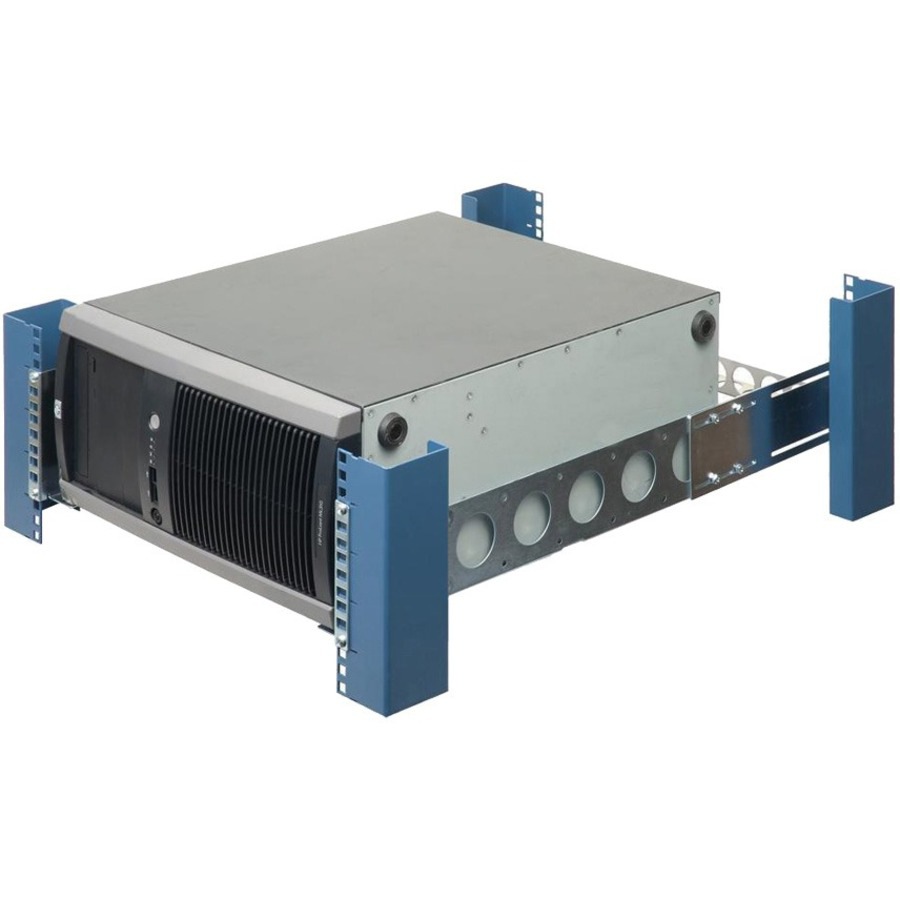

Rack Solutions 3U Universal Rail 31in (D) with Wirebar
Mfg # 3UKIT-109-31
CDW # 3230805
Quick tech specs
- Designed for deep server racks
- Work with square, round, threaded holes
- Dell, HP & IBM compatible
- Mounting depth from 11" to 39.5" (279 mm, 1003 mm)
- Installs in server racks up to 39.5" (1003 mm)
- 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)
- Alternative to OEM slide rails
- Universal rails mount in any 4Post rack
Know your gear
31" Universal Rackmount Rails are designed for deep Server Racks. These Rackmount Rails can be installed into racks with square, round, or threaded holes. Rack Mount Equipment weighing up to 200 lbs (90.7 kgs) can be installed using Rackmount Rails. The Rackmount Rail is 30.6" (777 mm) deep and can be installed into Server Racks with installation depths up to 39.5" (1003 mm). Adjustable Rack Rails and Square Hole Mounting The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.
